DAVIES CRAIG inline temperature sensor adapter 38 mm (kit), 0408

Description

This simple, economical Adaptor Kit fits directly into the engine's top radiator hose and gives a watertight, effective temperature probe installation.

Two 1/4" NPT holes allow the fitment of a sensor and/or an air bleed. If only one hole is needed, the included bung closes the other.

It suits temperature sensors with either a 5mm (3/16") or a 6mm (1/4") outside diameter, and temperature gauge senders with a 1/4" NPT thread.

This is an accessory for the #0401, #0404, #0444 range and #0455 Thermatic Switches.

Specifications

• Hose fitting size: 38mm
• Sensor holes: 2× 1/4" NPT
• Suitable sensor outside diameter: 5mm (3/16") or 6mm (1/4")
• Suitable gauge sender thread: 1/4" NPT

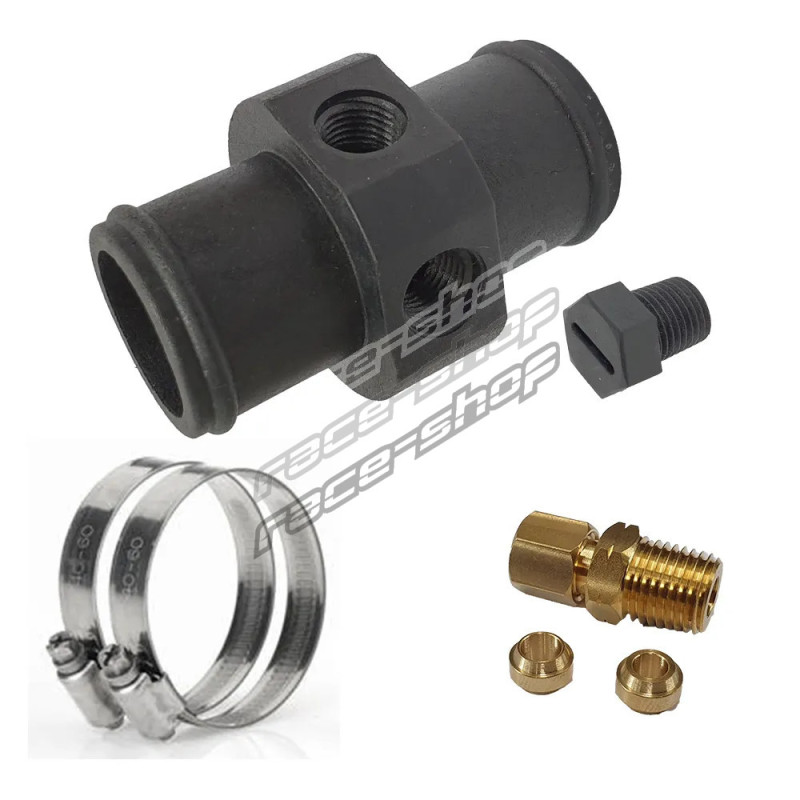

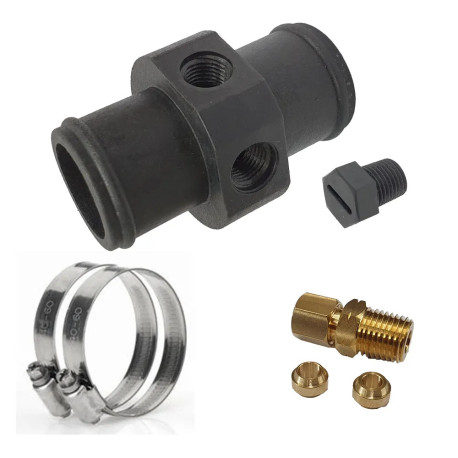

Package Contents

• 1× In-Line Adaptor 38mm (2× 1/4" NPT holes) and bung
• 1× Olive for 5mm sensor
• 1× Olive for 6mm sensor
• 1× Compression fitting for 6.35mm sensor
• 2× Hose clamps
• 1× Instructions

Installation

Fit the probe into the compression fitting. Remove about 17mm (2/3") of the top radiator hose, fit the adaptor between the two hose ends and tighten the hose clamps.

To use the kit with a Davies Craig Thermal Switch (Part #0400, #0401, #0404), use the 6mm olive supplied.
