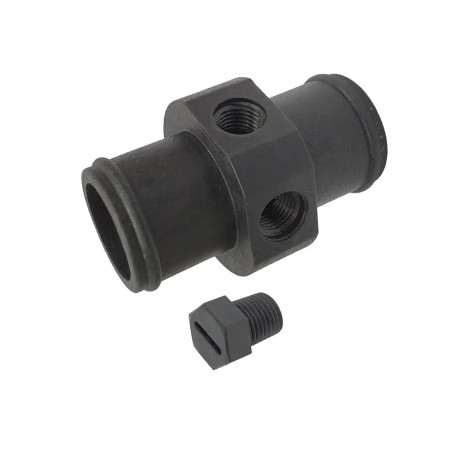

DAVIES CRAIG inline temperature sensor adapter 35 mm (2x 1/4" NPT + plug), 0419

Description

This simple in-line adapter fits directly into the top radiator hose.

It has two 1/4" NPT holes for a sensor and/or an air bleed. If you need only one hole, use the bung included to close the other.

It suits all temperature sensors with a 5mm or 6mm outside diameter and temperature gauge senders with a 1/4" NPT thread.

This is an accessory for the Part #0401, #0404, #0444 and #0500 Thermatic Switches.

Specifications

• Material: Nylon
• Type: In-line
• Hose end size: 35mm
• Holes: 2× 1/4" NPT
• Suitable temperature sensors: 5mm or 6mm outside diameter
• Suitable temperature gauge senders: 1/4" NPT thread

Package Contents

• 1× Adapter - Nylon - In Line, 35mm (2 x 1/4" NPT Holes)
• 1× Bung

Installation

• With the 3mm adapter sleeve (Part #18510), the hose end size increases to 38mm.
• With the 6mm adapter sleeve (Part #18511), the hose end size increases to 41-42mm.
