CANchecked display MFD28 Gen2

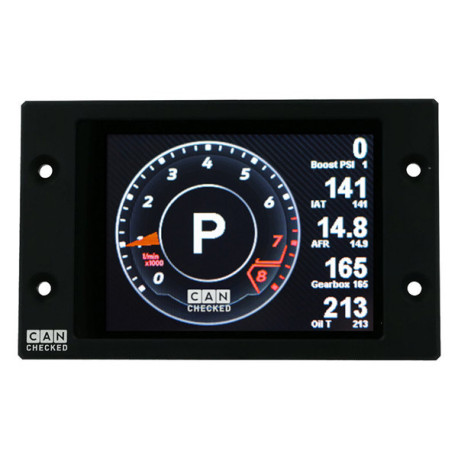

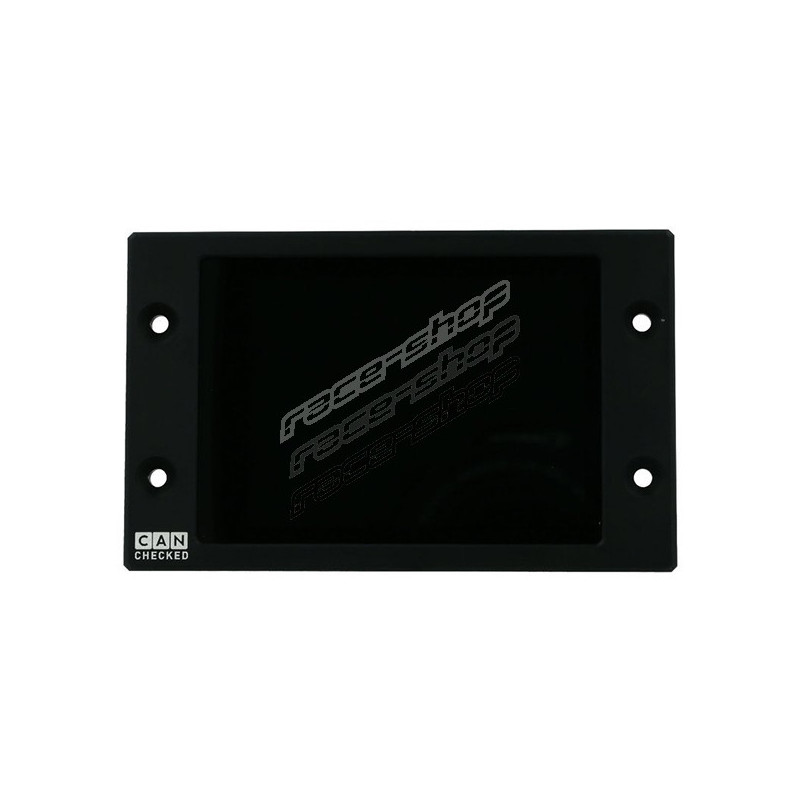

The MFD28 Gen2 in the universal version fits into any vehicle and is an intelligent display with features you won't want to do without. The aluminium bezel visible from the front is milled and black anodised. It can be used both vertically and horizontally.

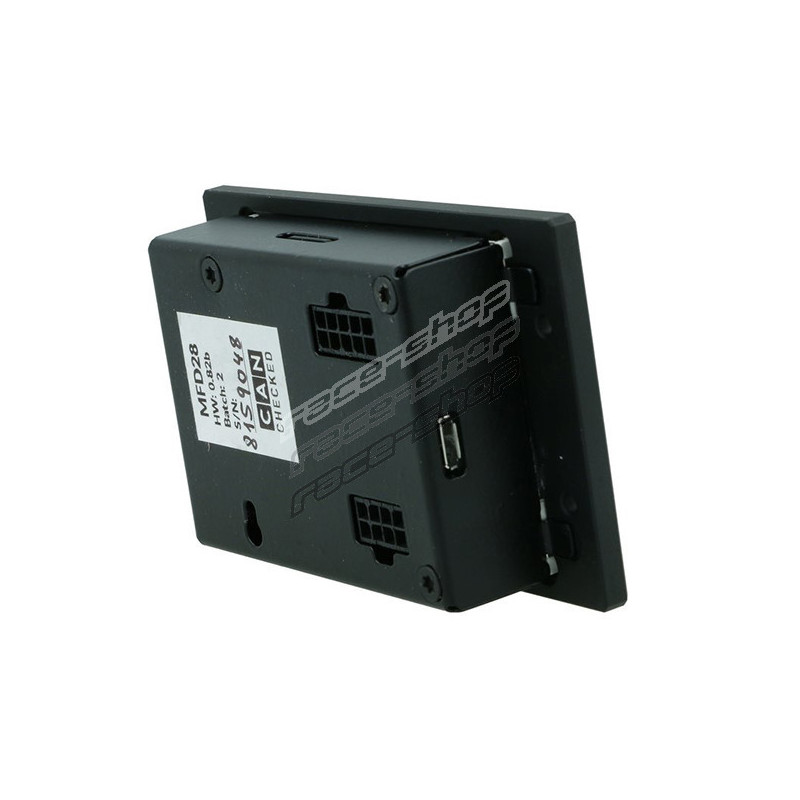

• Compact size: A 71x53 mm cut-out with a depth of 26 mm is sufficient to recess your new data display
• Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
• Gear display: Directly via Can Bus or calculated from speed and rpm
• Touchscreen: Navigate through pages using intuitive swipe gestures
• Customization: Design your own pages, add your own pictures or start animation
• Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
• Can Switching: Use your display as a keypad and send your own can messages to the bus
• Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
• Logging: Log and save your data to the internal SD card for later analysis.
• Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
• DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
• Dimming*: Your display automatically dims along with the instrument panel

Configure your own page or choose from several predefined views:

• The display is delivered with predefined sample pages
• Creation of own pages possible and wished
• Up to ten pages possible
• 20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
• Widgets can be scaled in size and positioned using drag and drop
• Colours of the widgets fully adjustable
• Up to 64 widgets per page

With the CANchecked DSS you can fully customize your display. With the integrated log viewer you can download and view log files. Furthermore, a Can-Logger is integrated. The heart is the integrated "TRI Editor" with which you can adjust the sensors (no matter if Can Bus or internal): Assign min-/max-values for warnings and change the names of your sensors.

Many customers always ask: "Which values can I get from my ECU". The answer: "ALL".

We have reverse-engineered the data for most engines here and can offer in-depth data. Our display supports Can Bus data query (UDS, TP2, manufacturer specific protocols) as well as data query via K-Line (ISO 9141).

By default, your display is delivered with predefined TRI/TRX files. In the files, all sensors are defined, which are queried. These are different from engine to engine. Here is an extract of what is possible:

Temperatures:

• Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG-temperature.

Pressures:

• Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target.

Lambda/mixture

• Lambda value, injection time, short term lambda adjustment, long term lambda adjustment

Other

• RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel specific values

If values are missing, they can be added later.

Of course, your new data display supports a wide range of freely programmable control units such as

   DTA Fast
   Ecumaster
   Emerald
   Emtron
   Haltech
   Hondata
   KMS van Kronenburg
   LinkECU
   MaxxECU
   MBE
   Megasquirt
   Motec
   Motorsport Electronics
   Syvecs
   Trijekt
   VEMS

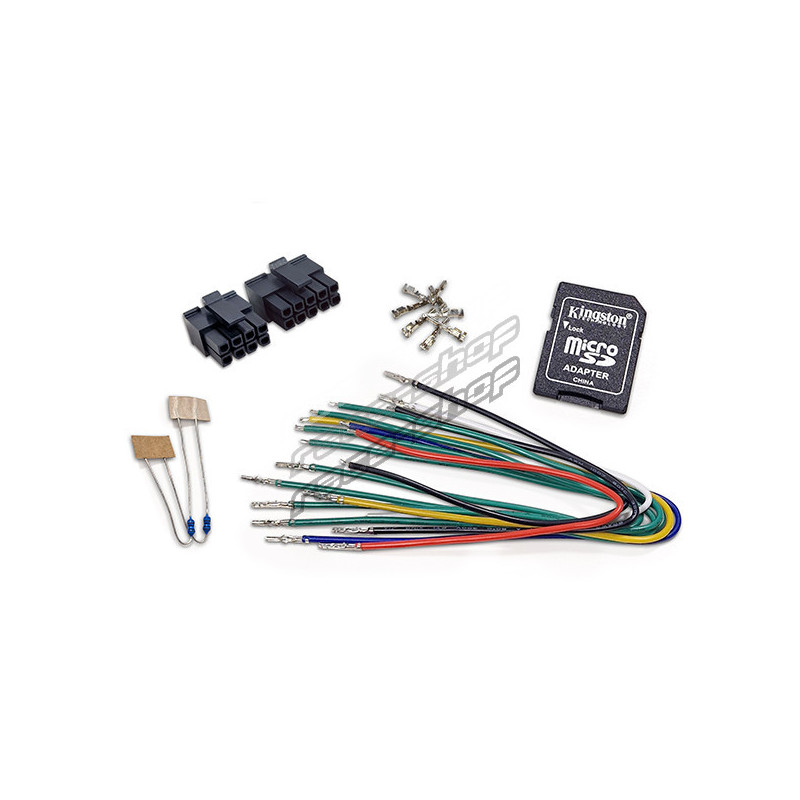

Included with every delivery is:

• MFD28 Gen2 data display with aluminium bezel
• Connector A (8-way Molex)
• Connector B (10-way Molex)
• Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
• Pins for crimping yourself
• Two 1K resistors (as pull-up for connecting external NTC sensors)
• Quickstart Guide
• USB data cable
• SD card (pre-installed in the display)
• SD card adapter
• Display film (to prevent reflections)

Any sensors can be connected via the four analog inputs - we support linear 0-5V as well as NTC sensors.
Our in-house CANchecked sensors are stored in the TRI-/TRX-files by default and only need to be connected:

• AIN1: Temperature sensor (NTC01)
• AIN2: Transducer for exhaust gas temperature sensor type K (TCC01)
• AIN3: Pressure sensor 0-10 Bar (FLP01)
• AIN4: boost pressure sensor 0-5,5 Bar absolute (BST01)

For the connection you can use our pre-assembled AIN wiring harness.

Beside the analog sensors you can also connect our external shift light with eight LEDs. This can flash in different colors and the speed limits and colors can be configured directly on the display.

You connect the ethanol sensor directly to the display. You need a pullup resistor (10K) between 5V and the signal. Then you can view and log the ethanol content and temperature directly on the display.

With the Math-Channels you can calculate sensors with each other. The User-Table gives you the possibility to generate further sensors with 2D or 3D maps.

• CC10000 DIN01 - DIN slot adaptor MFD28
• CC24000 SLM08 - external switching lightning module
• CC22780 ANC04 - four-way AIN-harness
• CC22100 CBD08 - eight-way Can Distribution Hub
• CC22902 NTC01 - temperature sensor for liquids 1/8" NPT
• CC22903 TCC01 - type K converter 0-1250°C
• CC22901 FLP01 - Pressure sensor 0-10 Bar (145psi) M10x1
• CC22900 BST01 - Pressure sensor 0-5,5 Bar absolute (80psi)

*not available on all protocols
