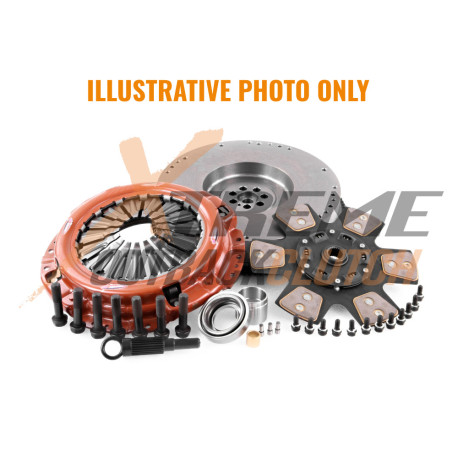

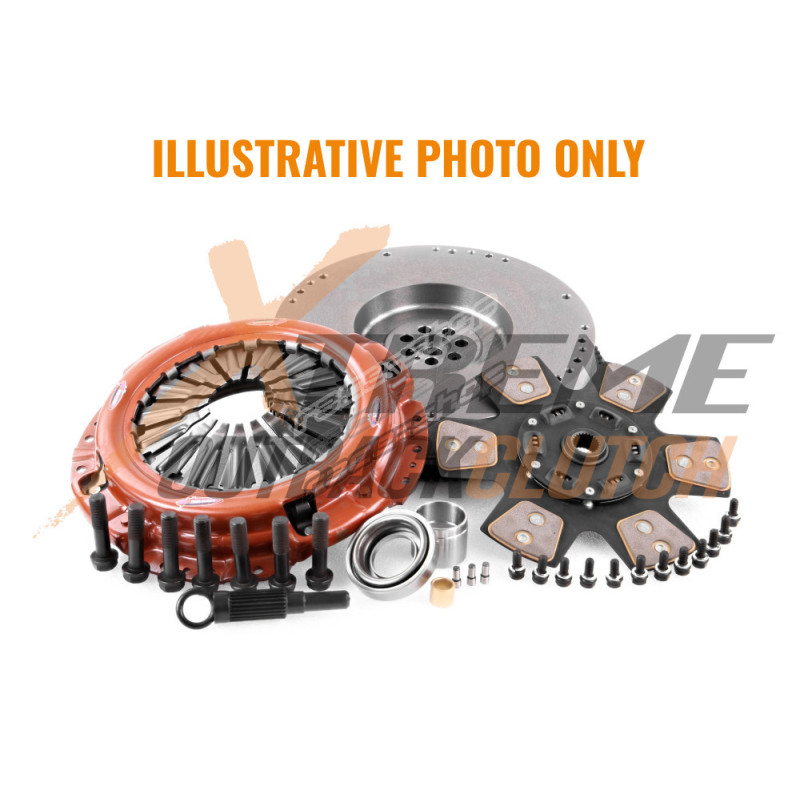

KFD25525-1B Clutch Kit Xtreme Outback Heavy Duty Sprung Ceramic Incl Flywheel 790Nm 1100KG (20%)

Xtreme Outback - Heavy duty sprung ceramic kit /-1BRecommended for: Motorsport Applications

Xtreme Outback Ceramic upgrades have been designed to offer the ultimate in heat capacity for single plate upgrades and are designed specifically for motorsport applications such as endurance rally events and time trials. Available in Sprung Ceramic and Cushioned Ceramic, there are a wide variety of options to choose from depending on the vehicle use.

Specifications:

• Torque capacity 790Nm
• Clamp load 1100Kg 20% Increased over standard
• Ceramic Friction Disc
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KFD25525-1B

Weight: 24

Note:

Torque (Nm): 790
Clamp Load: 1100KG (20% inc.)
Flywheel Step: -18.5mm
Clutch Disc Diameter (mm): 250
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Design: Single Plate
Diameter [mm]: 250
Stage: Stage 2

Suitable for:

- Ford/Ranger/2.5 TDdi/2009.04-2011.11/2499 Diesel 105 kW 143 BHP (2009.04 - 2011.11)
Ford/Ranger/2.5 TDdi 4x4/2009.04-2011.11/2499 Diesel 105 kW 143 BHP (2009.04 - 2011.11)
Ford/Ranger/2.5 TDdi/2006.11-2009.03/2500 Diesel 105 kW 143 BHP (2006.11 - 2009.03)
Ford/Ranger/2.5 TDdi 4x4/2006.11-2009.03/2500 Diesel 105 kW 143 BHP (2006.11 - 2009.03)
Ford/Ranger/2.5 TDdi/2009.03-2011.11/2500 Diesel 105 kW 143 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDCi/2006.05-2012.07/MD30DITC 2953 Diesel 115 kW 156 BHP (2006.05 - 2012.07)
Mazda/BT-50/3.0 CDVi 4x4 (UNY0E3)/2006.10-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.10 - 2015.12)
Ford/Ranger/3.0 TDdi/2006.11-2009.03/WEAT 2953 Diesel 115 kW 156 BHP (2006.11 - 2009.03)
Ford/Ranger/3.0 TDdi 4x4/2006.11-2009.03/WEAT 2953 Diesel 115 kW 156 BHP (2006.11 - 2009.03)
Mazda/BT-50/3.0 CDVi (UNY0E3)/2006.12-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.12 - 2015.12)
Mazda/BT-50/3.0 CDVi 4x4 (UNY0E3)/2006.12-2015.12/WEAT 2953 Diesel 115 kW 156 BHP (2006.12 - 2015.12)
Ford/Ranger/3.0 TDdi/2009.03-2011.11/WEAT 2953 Diesel 115 kW 156 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDdi 4x4/2009.03-2011.11/WEAT 2953 Diesel 115 kW 156 BHP (2009.03 - 2011.11)
Ford/Ranger/3.0 TDCi 4x4/2006.05-2012.07/WEC, MD30DITC 2953 Diesel 115 kW 156 BHP (2006.05 - 2012.07)
Ford/Ranger/2.5 TDCi 4x4/2006.05-2012.07/WLAA 2499 Diesel 105 kW 143 BHP (2006.05 - 2012.07)
Ford/Ranger/2.5 TDdi/2006.05-2012.07/WLAA 2499 Diesel 105 kW 143 BHP (2006.05 - 2012.07)
Mazda/BT-50/2.5 MRZ-CD (UNY0W3)/2006.08-2013.06/WLAA 2499 Diesel 105 kW 143 BHP (2006.08 - 2013.06)
Mazda/BT-50/2.5 MRZ-CD 4x4 (UNY0W3)/2006.12-2015.12/WLAA 2499 Diesel 105 kW 143 BHP (2006.12 - 2015.12)
Mazda/BT-50/2.5 CDVi (UNY0W3)/2006.12-2015.12/WLAT (16 V) 2500 Diesel 105 kW 143 BHP (2006.12 - 2015.12) ,
