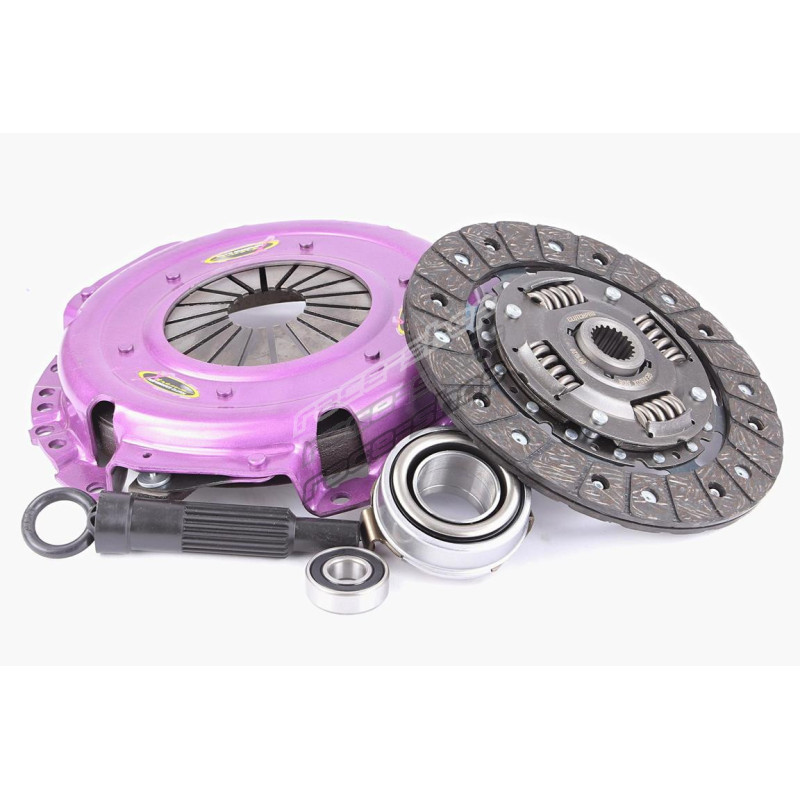

KFD19002-1A Clutch Kit Xtreme Performance Heavy Duty Organic 200Nm 530kg (30%)

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 200Nm
• Clamp load 530kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KFD19002-1A

Weight: 5.06

Note:

Clutch Disc Diameter (mm): 190
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.8
Torque (Nm): 200
Flywheel Step: +.5mm/.020""
Design: Single Plate
Stage: Stage 1
Clamp Load: 530Kg (30% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Mazda/323/1.5 (BF105)/1987.09-1989.10/B5 1498 Petrol 54 kW 73 BHP (1987.09 - 1989.10)
Mazda/323/1.6 GT (BFMP)/1986.11-1989.10/B6 (SOHC) 1597 Petrol 63 kW 85 BHP (1986.11 - 1989.10)
Mazda/323/1.6 GT (BF106)/1987.09-1989.10/B6 (SOHC) 1597 Petrol 63 kW 86 BHP (1987.09 - 1989.10)
Mazda/323/1.6 (BF106)/1987.09-1989.10/B68 1597 Petrol 54 kW 73 BHP (1987.09 - 1989.10)
Mazda/323/1.6 (BW106)/1986.09-1995.10/B6E, B65M, B6 (SOHC) 1597 Petrol 63 kW 86 BHP (1986.09 - 1995.10) ,
