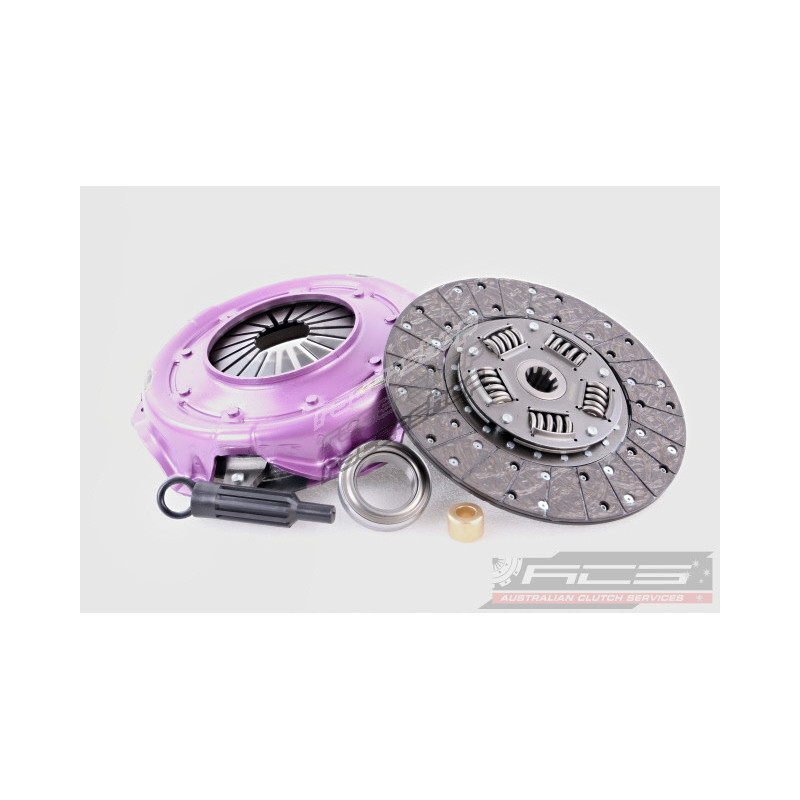

KGM26004-1AX Clutch Kit Xtreme Performance Extra Heavy Duty Organic

The stage 1 clutch kit uses an upgraded pressure plate with extra increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 40-120% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

Tech. Info:

Reference: KGM26004-1AX

Weight: 10.2

Note:

Clutch Disc Diameter (mm): 255
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 460
Flywheel Step:
Design: Single Plate
Stage:
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Holden/H Series/HZ | 4.1/1977.10-1980.04/41X 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden/H Series/VK | 5.0 V8/1985.01-1985.12/4987 Petrol 122 kW 166 BHP (1985.01 - 1985.12)
Holden/H Series/VK | 5.0 V8/1985.06-1986.03/4987 Petrol 122 kW 166 BHP (1985.06 - 1986.03)
Holden/H Series/VK | 5.0 V8/1985.01-1985.12/50H 5044 Petrol 117 kW 159 BHP (1985.01 - 1985.12)
Holden/H Series/VB | 5.0 V8/1978.10-1980.12/50H 5044 Petrol 125 kW 170 BHP (1978.10 - 1980.12)
Holden/H Series/VH | 5.0 V8/1981.09-1984.03/50H 5044 Petrol 126 kW 171 BHP (1981.09 - 1984.03)
Holden/H Series/VK | 5.0 V8/1984.03-1985.05/50H 5044 Petrol 126 kW 171 BHP (1984.03 - 1985.05)
Holden/H Series/5.0/1977.10-1980.04/50H 5044 Petrol 179 kW 243 BHP (1977.10 - 1980.04)
Holden/H Series/HZ | 5.0/1977.10-1980.03/50HC 5044 Petrol 161 kW 219 BHP (1977.10 - 1980.03)
Holden/H Series/VB | 5.0 V8/1978.10-1980.03/50HL 5044 Petrol 114 kW 155 BHP (1978.10 - 1980.03)
Holden/H Series/VC | 5.0 V8/1980.04-1981.09/50HL 5044 Petrol 114 kW 155 BHP (1980.04 - 1981.09)
Holden/H Series/4.2 V8/1980.04-1985.12/GMH 253 (Blue) 4142 Petrol 100 kW 136 BHP (1980.04 - 1985.12)
Holden/H Series/4.2 V8/1980.04-1985.12/GMH 253 (Blue) 4142 Petrol 115 kW 156 BHP (1980.04 - 1985.12)
Holden/H Series/4.2/1977.10-1978.05/GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1978.05)
Holden/H Series/HZ | 4.2/1977.10-1980.04/GMH 253 (Red) 4142 Petrol 120 kW 163 BHP (1977.10 - 1980.04)
Holden/H Series/VL | 5.0 V8/1986.03-1988.08/GMH 304 (Black) 4987 Petrol 122 kW 166 BHP (1986.03 - 1988.08)
Holden/H Series/VK | 5.0 V8/1984.03-1986.03/GMH 308 (Black) 5044 Petrol 117 kW 159 BHP (1984.03 - 1986.03)
Holden/H Series/VC | 5.0/1980.04-1981.09/GMH 308 (Blue) 5044 Petrol 115 kW 156 BHP (1980.04 - 1981.09)
Holden/H Series/VH | 5.0 V8/1981.09-1984.03/GMH 308 (Blue) 5044 Petrol 117 kW 159 BHP (1981.09 - 1984.03)
Holden/H Series/VC | 5.0 V8/1980.04-1981.09/GMH 308 (Blue) 5044 Petrol 126 kW 171 BHP (1980.04 - 1981.09)
Holden/H Series/VL | 5.0 V8/1984.03-1985.05/GMH 308 4987 Petrol 117 kW 159 BHP (1984.03 - 1985.05)
Holden/H Series/VL | 4.9 V8/1986.06-1988.01/GMH 308 4987 Petrol 122 kW 166 BHP (1986.06 - 1988.01)
Holden/Commodore/VK | 4.9 V8/1984.03-1985.05/VU 4987 Petrol 122 kW 166 BHP (1984.03 - 1985.05) ,
