*39 188

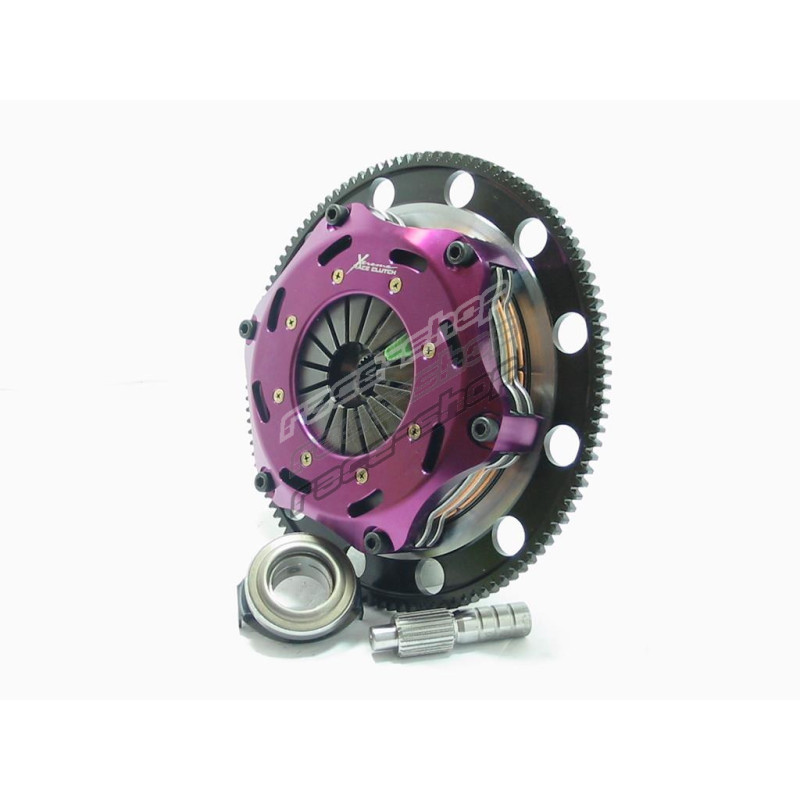

KHN18522-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1220Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
Sold out
1.598,80 €
Product is unavailable. Please choose other goods.
For automatic information about product status update,
click on "notify me".
click on "notify me".
KHN18522-2E
9337467163940
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 184mm twin plateDesigned for high powered circuit, time attack or gymkhana applications, the Xtreme 184mm Race Clutch offers quick shift times and a lightweight construction.
The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.Product Features:- Push type billet alloy cover
- 4140 Chromoly pressure plate
- Hardened steel wear posts
- High and low ratio pressure plate options
- Low inertia
- Serviceable components
- SFI certified design
| Replacement Parts | Light Diaphragm Alloy Hat Assembly (2.6mm) | 185-10B-PP-L | Heavy Diaphragm Alloy Hat Assembly (2.8mm) | 185-10B-PP | Pressure Plate Casting | 185-10B-PPC | Intermediate Plate | 185-10B-IP | Pressure Plate Bolt | BOLT-8X1.125X50 | Pressure Plate Washer | WASHER-8MM-C |
| Ø184mm Light Diaphragm (2.6mm) | Ø184mm Heavy Diaphragm (2.8mm) | |
| Clamping Force | 950kg | 1080kg |
| Torque Rating | 1060Nm | 1210Nm |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 210kg | 260kg |
| Release Travel Required | 5mm | |
| Assembly Mass (without flywheel) | 4.45kg | |
| Disc Set Static Mass | 1.1kg | |
| Friction Thickness New | 6.35mm (0.250") | |
| Friction Thickness Worn | 5.97mm (0.235") |
Tech. Info:
Reference: KHN18522-2E
Weight: 9.4
Note:
Clutch Disc Diameter (mm): 184
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1220
Flywheel Step: +2.5mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 900Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
184mm Twin Plate
Suitable for:
- Honda/Civic/Gen. V | 1.6 VTi (EG9)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
Honda/Civic/Gen. V | 1.6 VTi 16V (EG6)/1991.10-1995.11/B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11)
Honda/Civic/Gen. VI | 1.6 VTi (EK4)/1995.11-2001.02/B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02)
Honda/Civic/Gen. VI | 1.6 i Vtec (EM1)/1999.04-2000.12/B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12)
Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11)
Honda/Integra/1.8 ESI (DB7)/1993.09-2001.08/B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08)
Honda/Integra/1.8 (DC2)/1993.07-2001.11/B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11)
Honda/Integra/1.8 VTiR (DC2)/1993.07-1999.11/B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11)
Honda/Civic/Gen. VI | 1.8 16V (MB6)/1997.01-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02)
Honda/Civic/Gen. VI | 1.8 16V (MC2)/1998.04-2001.02/B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02)
Honda/Integra/1.8 Type-R (DC2)/1997.11-2001.10/B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10)
Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1995.10-2001.12/B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12)
Honda/CR-V/2.0 16V 4WD (RD1. RD3)/1999.01-2002.02/B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02)
Honda/CR-V/2.0 (RD1)/1999.04-2002.02/B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Honda | CR-V | 2.0 (RD1) | B20Z1 1973 Petrol 98 kW 133 BHP (1999.04 - 2002.02) |
| Honda | CR-V | 2.0 16V 4WD (RD1. RD3) | B20B 1973 Petrol 94 kW 128 BHP (1995.10 - 2001.12) |
| Honda | CR-V | 2.0 16V 4WD (RD1. RD3) | B20Z1 1973 Petrol 108 kW 147 BHP (1999.01 - 2002.02) |
| Honda | Civic | Gen. V 1.6 VTi (EG9) | B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) |
| Honda | Civic | Gen. V 1.6 VTi 16V (EG6) | B16A2 1595 Petrol 118 kW 160 BHP (1991.10 - 1995.11) |
| Honda | Civic | Gen. VI 1.6 VTi (EK4) | B16A2 1595 Petrol 118 kW 160 BHP (1995.11 - 2001.02) |
| Honda | Civic | Gen. VI 1.6 i Vtec (EM1) | B16A2 1595 Petrol 118 kW 160 BHP (1999.04 - 2000.12) |
| Honda | Civic | Gen. VI 1.8 16V (MB6) | B18C4 1797 Petrol 124 kW 169 BHP (1997.01 - 2001.02) |
| Honda | Civic | Gen. VI 1.8 16V (MC2) | B18C4 1797 Petrol 124 kW 169 BHP (1998.04 - 2001.02) |
| Honda | Integra | 1.8 (DC2) | B18B1 1834 Petrol 101 kW 137 BHP (1993.07 - 2001.11) |
| Honda | Integra | 1.8 (DC2) | B18B2 1834 Petrol 107 kW 146 BHP (1993.07 - 2001.11) |
| Honda | Integra | 1.8 ESI (DB7) | B18B2 1834 Petrol 107 kW 145 BHP (1993.09 - 2001.08) |
| Honda | Integra | 1.8 Type-R (DC2) | B18C6 1797 Petrol 140 kW 190 BHP (1997.11 - 2001.10) |
| Honda | Integra | 1.8 VTiR (DC2) | B18C2 1797 Petrol 125 kW 170 BHP (1993.07 - 1999.11) |
