Comp. Intercooler Kit Fiat 500 Abarth - automatic transmission

New release 3. quarter 2018

Competition intercooler kit for Fiat 500 Abarth

Fiat Abarth 500 1,4 Turbo 99 KW/135 PS (2008-)

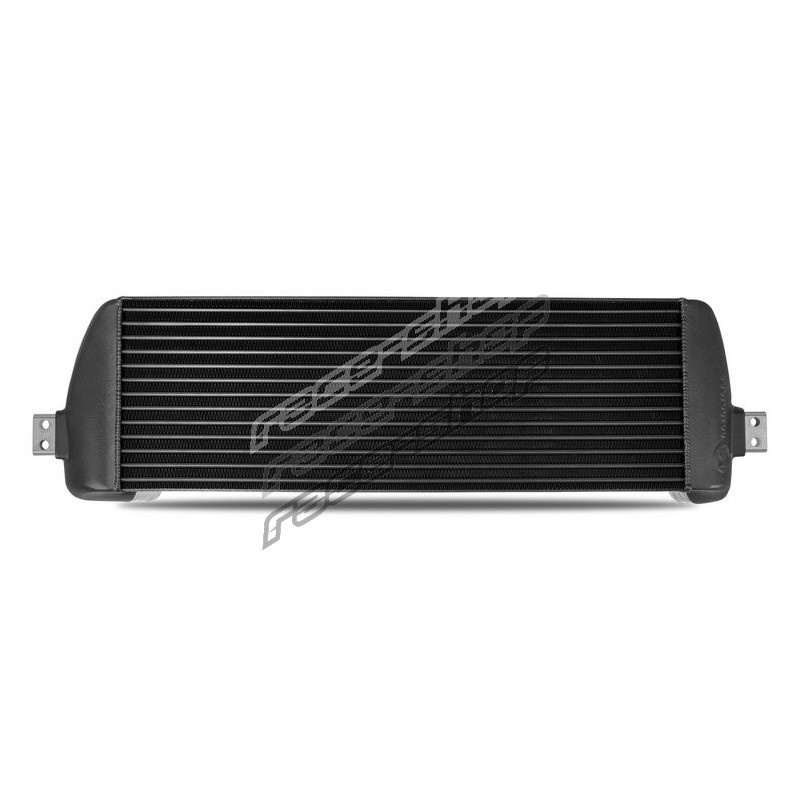

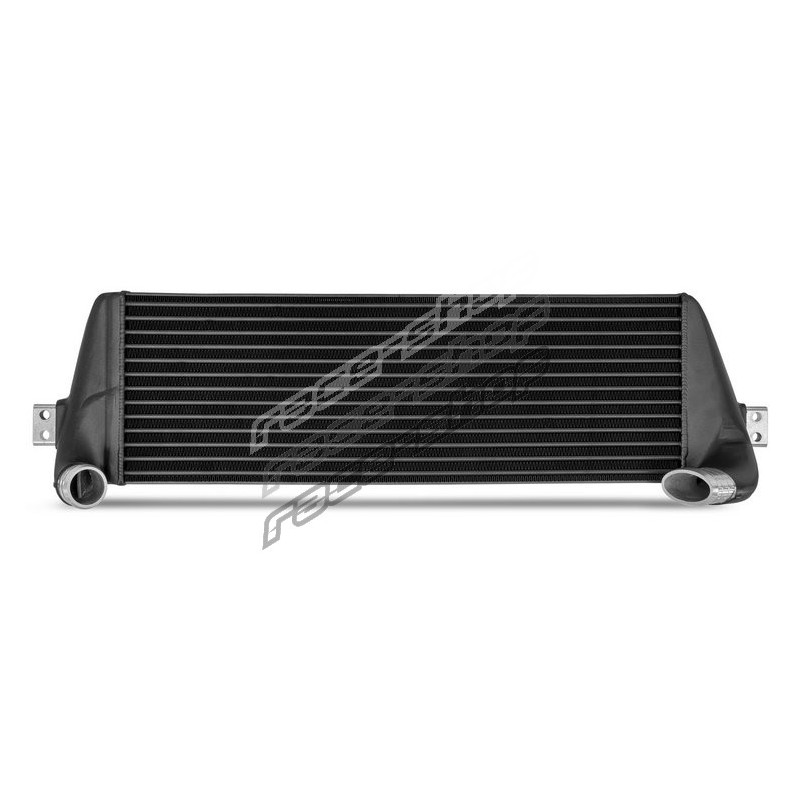

The WAGNERTUNING high-performance intercooler has a new competition core (Tube Fin) with the dimensions 600 mm x 204.6 mm x 80 mm (9.8 liters), which was developed especially for the requirements of the Fiat 500 Abarth. This high-performance core offers an 85% larger frontal surface and 131% more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized by using CFD simulations (for an ideal internal airflow).

For the best possible heat exchange, the WAGNERTUNING high-performance intercooler is installed in the front of the car, replacing the two original side intercooler. The newly developed elliptical hose connection at the outlet of this intercooler and the WAGNERTUNING silicone hoses enables a maximum possible reduction of the charge air distance. As a result of the generally lower back pressure of the complete intercooler system (see diagram) and the short charge air distance the overall response could be significantly improved.

An anti-corrosion coating with heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, as a result of which a lasting and optimal cooling effect can be guaranteed. Installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring.

Dimensions stock intercooler (2x):
190 mm x 175 mm x 64 mm
V = 4,3 Liter
A = 665 cm²

Dimensions WAGNERTUNING intercooler:
600 mm x 205mm x 80 mm
V = 9,8 Liter
A = 1227 cm²

Packing list:
1 intercooler (black coated)
1 cross member (black coated)
2 silicone hoses (black)
1 mounting material
1 installation instruction







Since 2002, Wagner has been manufacturing high-quality products that guarantee increased performance and maximum durability when used in the most extreme conditions of racing or stock cars. The development and manufacture of components of this brand is under reservation in Germany with a high certified standard that offers TÜV documentation for many products.
