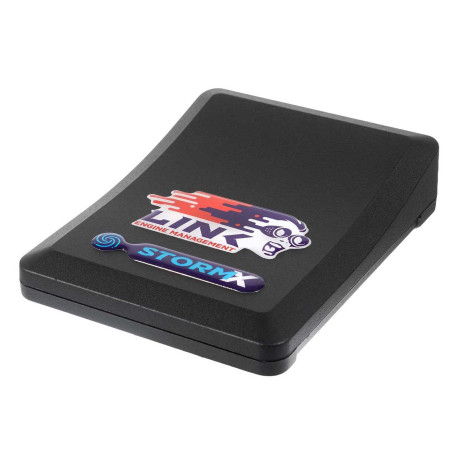

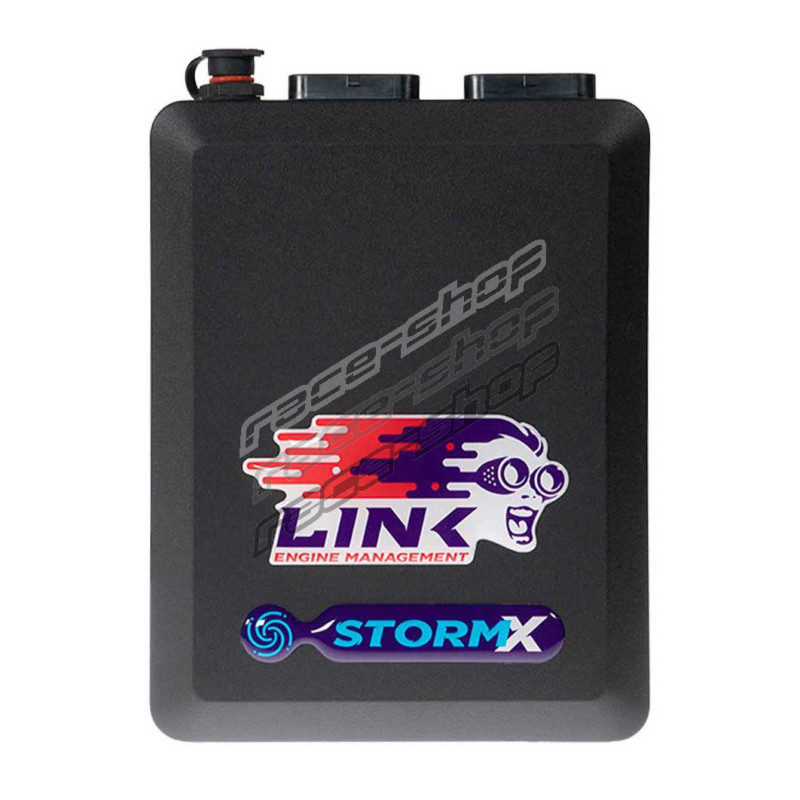

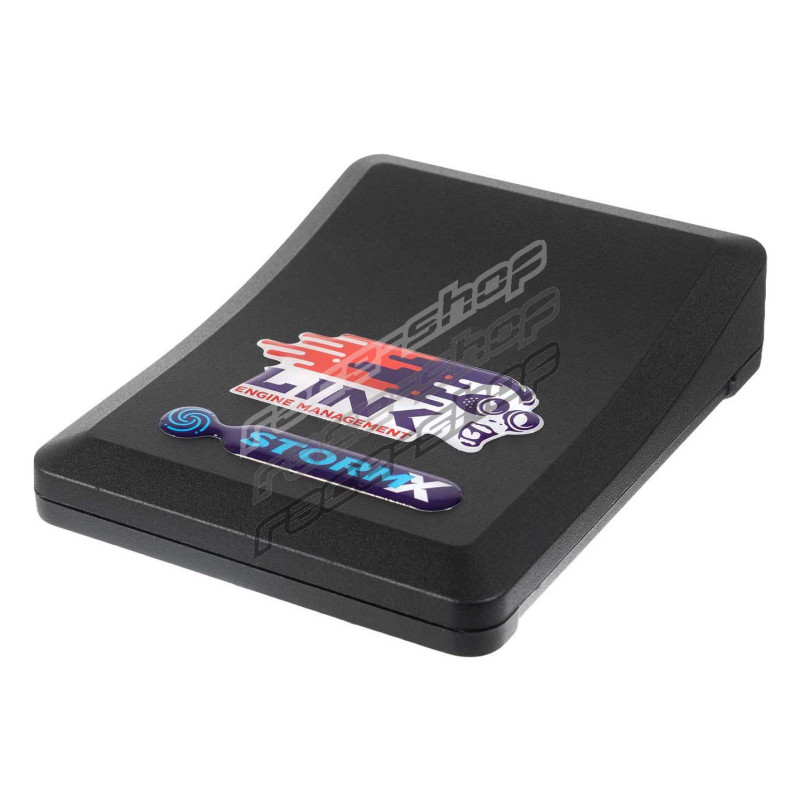

Link G4X StormX

It includes all the core G4X features expected from Link's championship-winning platform, including CAN Bus, Flex Fuel, Flexible engine protection limiters, CAN Keypad Control, VVT Control, Open and Closed Loop Boost Control and 512MB of data logging.

The StormX includes increased I/O and advanced functionality beyond Link's entry-level ECUs with additional injector and ignition drives, auxiliary outputs, digital inputs, and temperature inputs. It also introduces advanced tuning features including a built-in Trigger Oscilloscope, Stepper Motor Idle Control and Rotary Oil Metering Pump Control.

Drawing from Link's premium G4X range, the StormX also supports some advanced motorsport features including Nitrous Control, Launch Control, Full Gear Shift Control and Anti-Lag, making it a smart choice for high-performance street and motorsport applications.

The StormX is the ideal solution for builds requiring expanded I/O and some advanced tuning capability, without needing the extra features that come with our premium ECUs.

Models Supported

The StormX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark.

The StormX is positioned between Link's entry-level and premium G4X ECUs and offers the following features:

ECU Features

• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Dual Closed Loop Lambda
• 512 Megabytes of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-Lag
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

The StormX is the ideal solution for builds requiring more inputs and outputs than Link's entry-level G4X ECUs while only requiring some of the specs of our premium G4X ECUs including:

Outputs

• 8 Injection Drives
• 8 Ignition Drives
• 8 Auxiliary Outputs
• +5V Sensor power supply
• +8V Sensor power supply
• Unused Inj/Ign can be used as a Auxiliary Outputs

Inputs

• 8 Digital Inputs
• 3 Temperature Inputs
• 8 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs

Communications

• 1 CAN Bus Channel
• LTW 6Pin USB Tuning Connection

Data Logging

• 512MB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions

• 185mm(L) x 130mm(W) x 40mm(H)
• 7.28in(L) x 5.12in(W) x 1.57in(H)

Product Weight

• 660 grams (23.28 ounces)

Material

• Die-cast aluminum enclosure

Electrical

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 5.5A
• Operating Current: 200mA

Misc.

• Manufacturing Standard ISO 13485
• Ambient temperature range: -30 to 90°C

What's in the Box

• StormX G4X ECU
• Quick Start Guide
• Mounting Bracket
• USB Tuning Cable
• LinkECU Stickers

Connector

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1
