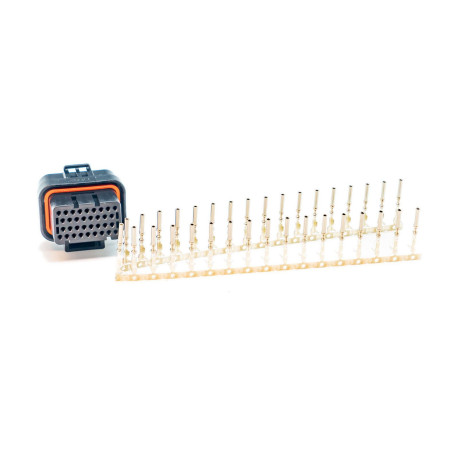

Link Superseal Plug and Pin Kit B (TKB)

Models Supported

Link G5 Voodoo Pro (Loom A/Pin Kit A also required)

Link G5 Neo 4 (Loom A/Pin Kit A also required)

Link G5 Neo 6 (Loom A/Pin Kit A also required)

Link G4X Storm (Loom A/Pin Kit A also required)

Link G4X and G4+ Fury (Loom A/Pin Kit A also required)

Link G4X, G4+ and G4 Xtreme (Loom A/Pin Kit A also required)

Link G4+ Thunder (Note: Loom A/Pin Kit A and connector kits C and D may also be required)

Link G4+ Storm Black (Loom A/Pin Kit A also required) - Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models

Vipec V88 (Loom A/Pin Kit A also required)

Vipec i88 (Loom A/Pin Kit A also required)

Specifications

Product Dimensions

• 35mm(L)x35mm(W)x35mm(H)
• 1.38in(L)x1.38in(W)x1.38in(H)

Product Weight

• 20 grams (0.71 ounces)

Electrical

• Operating Voltage Range: 6-18V
• Maximum Input Voltage: 250V
• Maximum Continuous Current Draw: 3-15A
• Gauges of wire: 22AWG/0.3mm2 - 16AWG/1.25mm2

Misc.

• We suggest using a waterproof back shell with this product to encapsulate the plug.

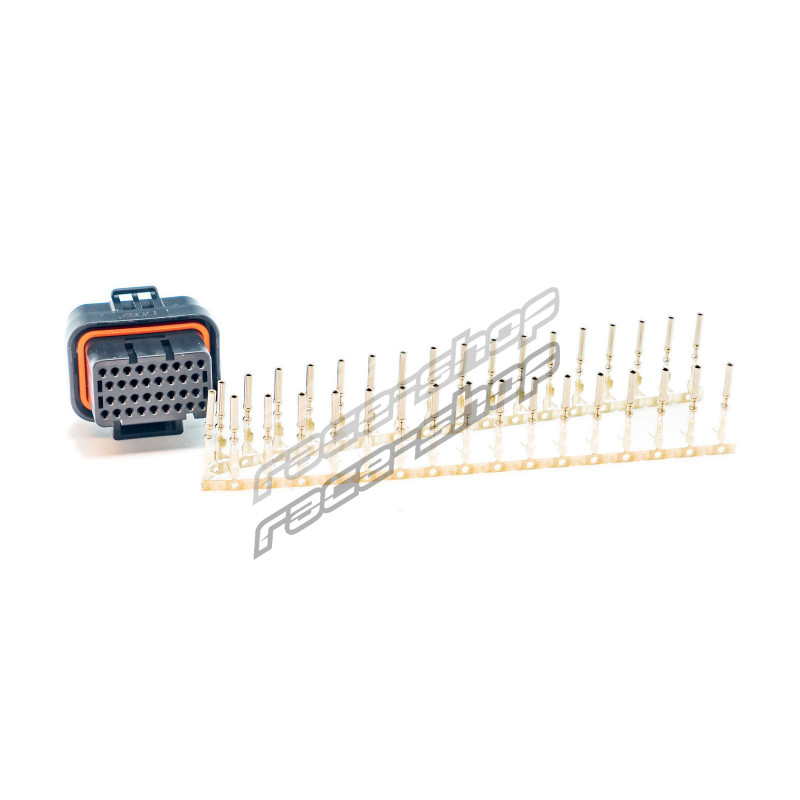

What's in the Box

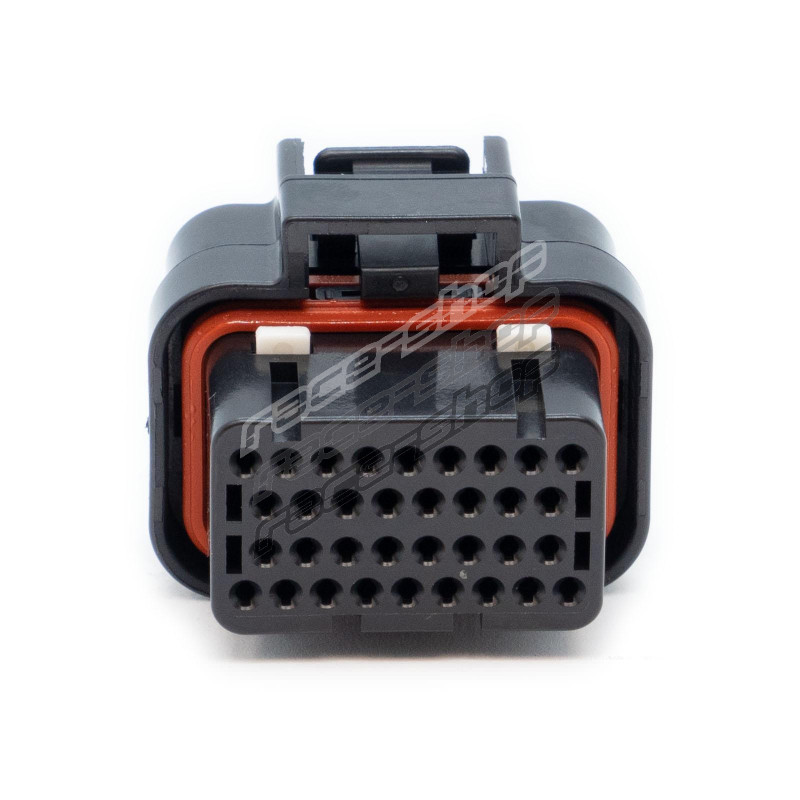

• Connector Key 2 G4B
• Superseal terminal PN 101-0091
