Link B Loom Short (0LB)

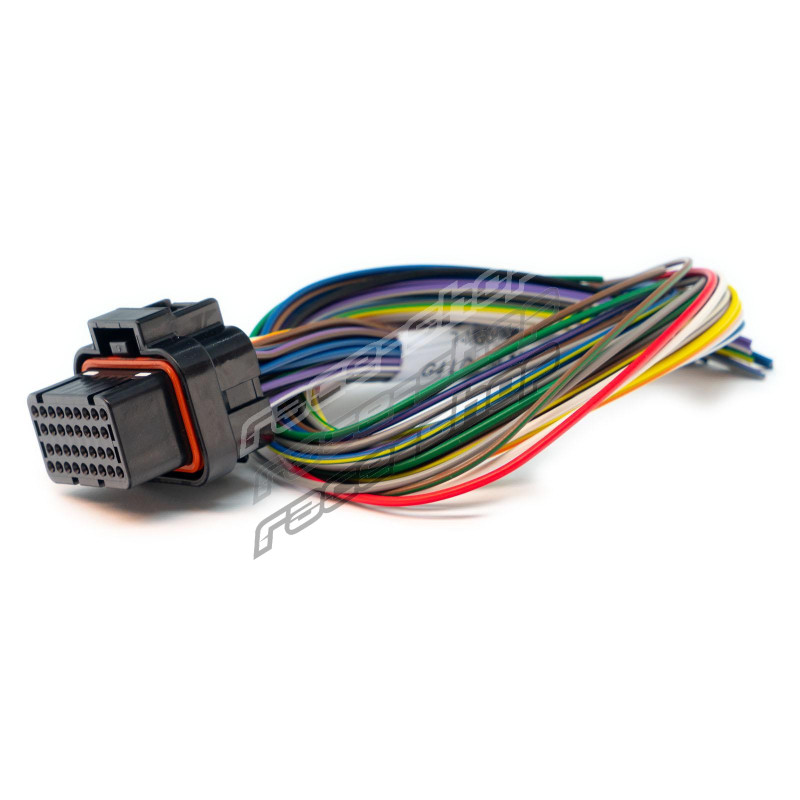

A high-quality, pre-assembled wiring loom for custom installations using compatible Link wire-in ECUs. Also commonly referred to as a wiring harness or flying lead, it is terminated with a SUPERSEAL 1.0 connector at one end, and is unterminated at the other. The 0.4m Link B Loom provides a convenient and cost-effective starting point for a professional ECU installation without the time, tooling and expense required to terminate the ECU connector yourself.

Ideal for patch harnesses and adapters. The 0.4m length makes this loom particularly well suited to patch harnesses, ECU conversions, adapters and other applications where a full-length flying lead is unnecessary.

While designed for compatible Link wire-in ECUs, this loom is not limited to Link ECU applications. It can also be used for custom wiring projects requiring the same TE Connectivity SUPERSEAL 1.0 connector and compatible pin configuration.

Please note: Link Wire-in ECUs that use two ECU connectors require both an A Loom and B Loom. The 0.4 A Loom is sold separately (PN 101-0002).

Models Supported

Link G4X Storm (Loom A also required)

Link G4X and G4+ Fury (Loom A also required)

Link G4X, G4+ and G4 Xtreme (Loom A also required)

Link G4+ Thunder (Note: Loom A and connector kits C and D may also be required)

Link G4+ Storm Black (Loom A also required) - Note: Loom B is not required for the older Silver or Blue G4 or G4+ Storm models

Vipec V88 (Loom A also required)

Vipec i88 (Loom A also required)

Warnings

Does not suit earlier G4 (Pre G4+) Atoms.

This loom is also available in 2.5m and 5m lengths.

All wires are colour coded to match the Link Wire-In manuals. All positions populated.

Specifications

Link looms use 0.75mm2 wire for the 2 red wires (pin A5 & B5) and the 4 black power grounds (A25,A34,B25,B34). All other wires are 0.5mm2.

Product Dimensions

• 400mm(L)x40mm(W)x30mm(H)
• 15.75in(L)x1.57in(W)x1.18in(H)

Product Weight

• 140 grams (4.94 ounces)

Electrical

• Operating Voltage Range: 0-24V
• Maximum Input Voltage: 60V
• Maximum Continuous Current Draw: 5A & 14A
• Gauges of wire: 20AWG/0.5mm2 & 19AWG/0.75mm2

What's in the Box

• Loom B 400mm Cable

Connector

• Link A SUPERSEAL 1.0
