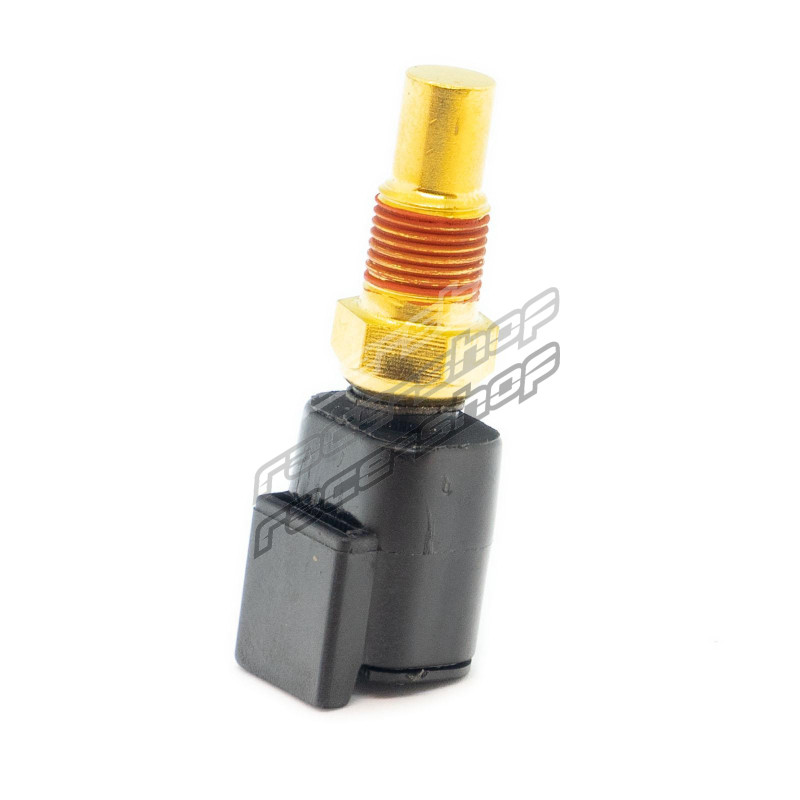

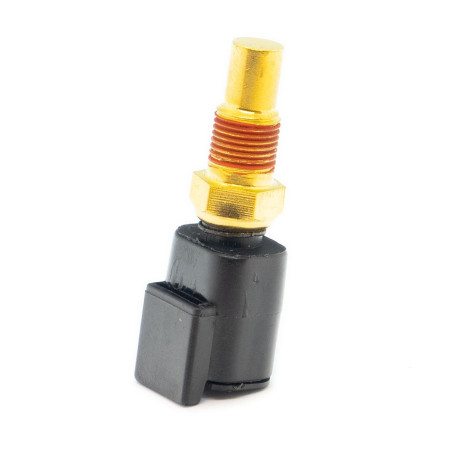

Link Coolant Temperature Sensor (NTC1-8)

The Link Coolant Temperature Sensor (1/8" NPT) is a high-quality NTC thermistor sensor designed to provide accurate temperature measurement for a wide range of automotive fluids. Suitable for coolant, engine oil, transmission oil, fuel and other compatible liquids. With a compact threaded design and proven temperature calibration, it delivers reliable temperature data for engine management, data logging and protection strategies.

Models Supported

All Link ECUs.

Other aftermarket ECUs supporting NTC temperature sensors.

Warnings

Aluminum and steel weld in mounting bosses available.

Specifications

Highlights

The Link Coolant Temperature Sensor has the following specifications:

• NTC thermistor temperature sensor.
• 1/8" NPT thread.
• Two-wire sensor.
• Compact metal body.
• Proven Link calibration data.
• Suitable for and water, oil, fuel temperature measurement.
• Signal and Sensor Ground connections.
• Comes with Deutsch 2 way Connector Kit.

Product Dimensions

• 55mm(L)x15mm(W)x20mm(H)
• 2.17in(L)x0.59in(W)x0.79in(H)

Product Weight

• 5 grams (0.18 ounces)

Electrical

• Operating Voltage Range: 5V

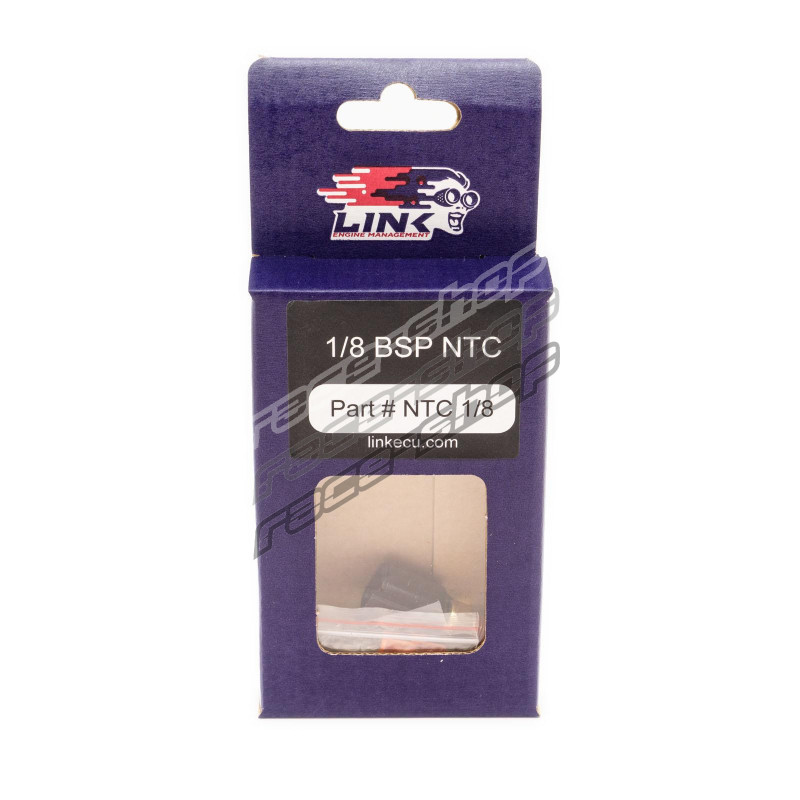

What's in the Box

• Water Temp Sensor 1/8 NPT

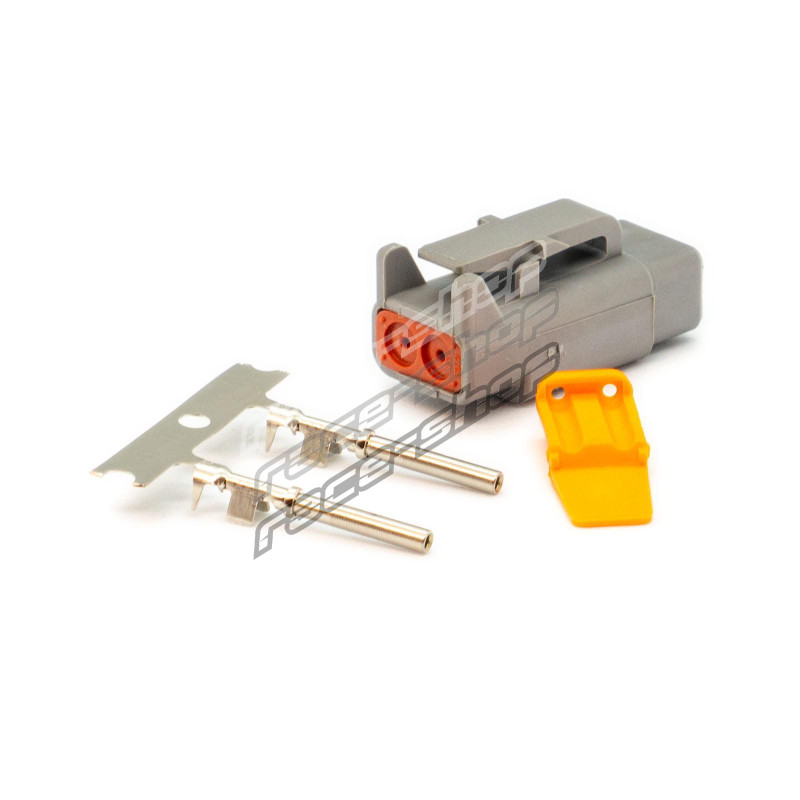

• Deutsch 2 way Connector Kit

PCLink Calibration Name

• "Link NTC1-8 & IAT1-8" OR "Delphi AC IAT"

Raw Calibration Specs

• -40°C: 65,500 ohm
• -30°C: 51,791 ohm
• -20°C: 28,146 ohm
• -10°C: 15,873 ohm
• 0°C: 9,256 ohm
• 10°C: 5,572 ohm
• 20°C: 3,457 ohm
• 30°C: 2,205 ohm
• 40°C: 1,443 ohm
• 50°C: 965 ohm
• 60°C: 660 ohm
• 70°C: 462 ohm
• 80°C: 329 ohm
• 90°C: 238 ohm
• 100°C: 175 ohm
• 110°C: 131 ohm
• 120°C: 99 ohm
• 130°C: 76 ohm
• 140°C: 59 ohm
• 150°C: 47 ohm

Connector

• PKD2F 101-0131
