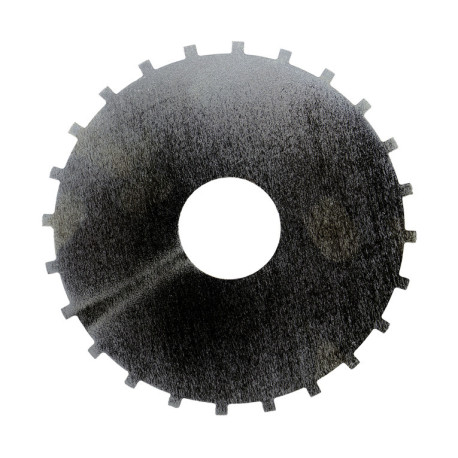

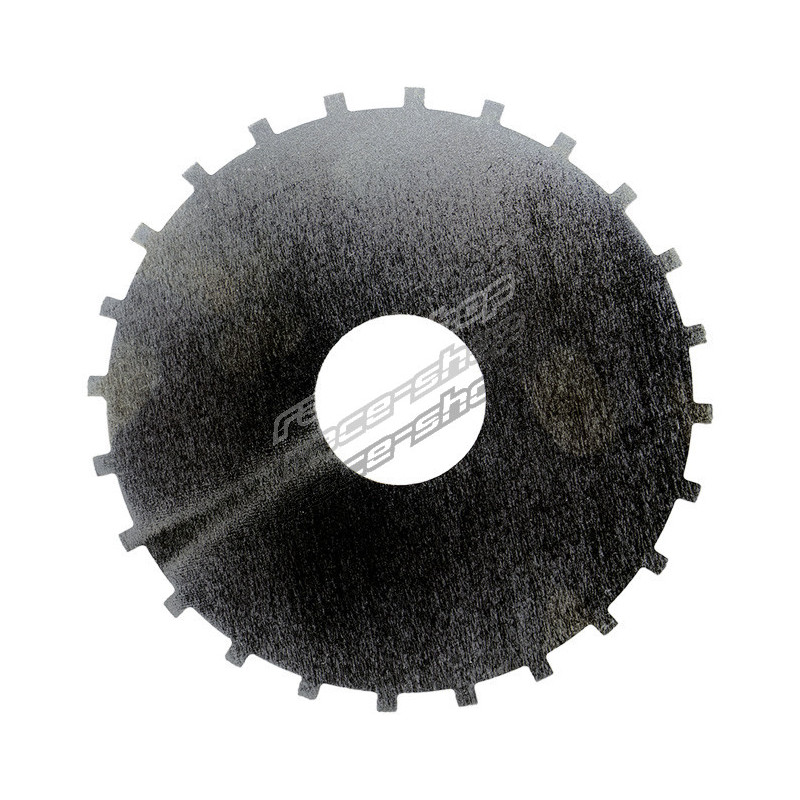

Link Trigger Wheel (TWS)

The Link TWS Trigger Wheel provides an accurate crankshaft or camshaft position reference for Link ECUs and other aftermarket engine management systems. Precision laser cut from steel with a 24-tooth pattern and 150 mm diameter, it is ideal for custom engine builds, EFI conversions and ignition upgrades requiring a reliable engine position signal.

Models Supported

All Link ECUs

Other aftermarket ECUs

Warnings

Designed for custom installation and may require machining to suit your application. Install with a compatible Hall effect or VR trigger sensor. Correct trigger wheel alignment and sensor positioning are critical for accurate engine timing.

Specifications

Highlights

The Link TWS Trigger Wheel has the following specifications:

• 24-tooth trigger pattern.
• 150 mm outside diameter.
• 40 mm centre bore.
• Precision laser-cut steel construction.
• Can be machined to suit a wide range of applications.

Product Dimensions

• 145mm(L)x145mm(W)x3mm(H)
• 5.71in(L)x5.71in(W)x0.12in(H)

Product Weight

• 365 grams (12.88 ounces)

What's in the Box

• Trigger Wheel 24 tooth 150mm
