*438 606

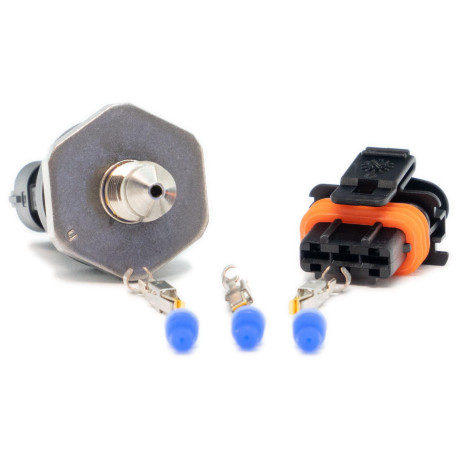

Link 140 Bar Pressure Sensor (HPS)
The Link 140 Bar Pressure Sensor is a compact, high-accuracy pressure sensor designed for measuring liquid pressure up to 140 Bar (2030psi). Featuring an M10 x 1 threaded fitting with a 45deg cone seat and a compact 3-pin connector, it delivers reliable pressure measurement for fuel, oil and hydraulic applications.
New product
101-0186
Frequently bought together
The Link 140 Bar Pressure Sensor is a compact, high-accuracy pressure sensor designed for measuring liquid pressure up to 140 Bar (2030psi). Featuring an M10 x 1 threaded fitting with a 45deg cone seat and a compact 3-pin connector, it delivers reliable pressure measurement for fuel, oil and hydraulic applications.
Warnings
Suitable for liquid pressure measurement only.
Up to 2030 PSI above atmospheric pressure, cannot be used to read vacuum.
Install with the pressure tube pointing downwards (0deg to +/-90deg from vertical).
The Link 140 Bar Pressure Sensor has the following specifications:
ECU Tuning Features
- Pressure range: 0-140 Bar (2030psi)
- M10 x 1 threaded fitting
- 45deg cone seat
Specifications
Product Dimensions
- 50mm(L)x30mm(W)x30mm(H)
- 1.97in(L)x1.18in(W)x1.18in(H)
Product Weight
- 40 grams (1.41 ounces)
Electrical
- Operating Voltage Range: 4.75-5.25V
- Maximum Input Voltage: 5.25V
What's in the Box
- Bosch Pressure Sensor for Liquid 140 bar
- Bosch Mating Connector 3-pin Compact for Pressure Sensor
- Printed Accessory instructions
PCLink Calibration Name
- "Bosch 140Bar 0 261 545 053"
Raw Calibration Specs
- 0.5V = 0kPa, 4.5V = 14000kPa
Connector
- Compact 3-pin
- Write a review
Data sheet
| Type | Sensors |
