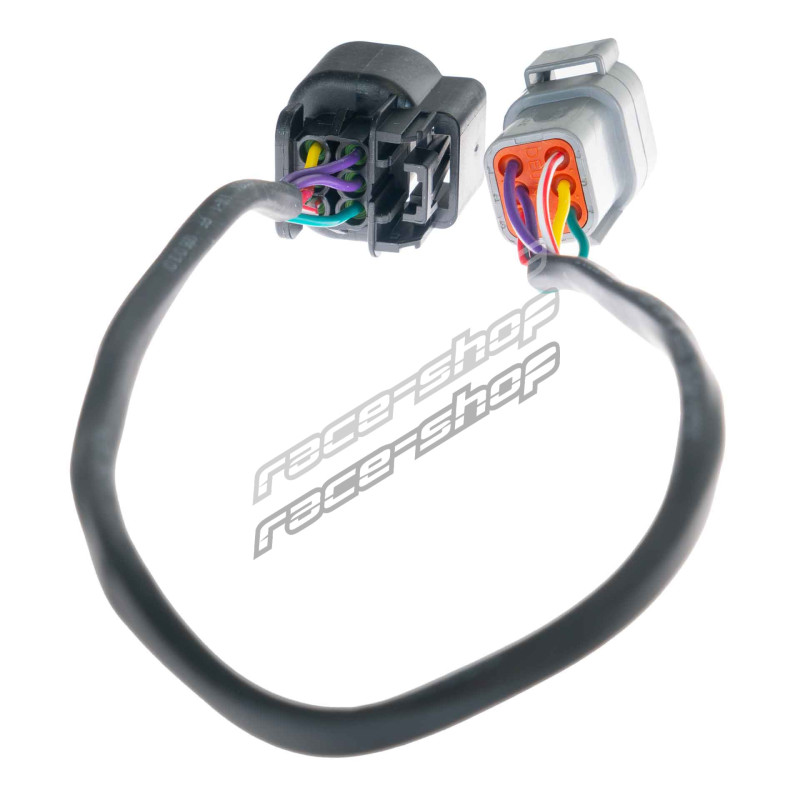

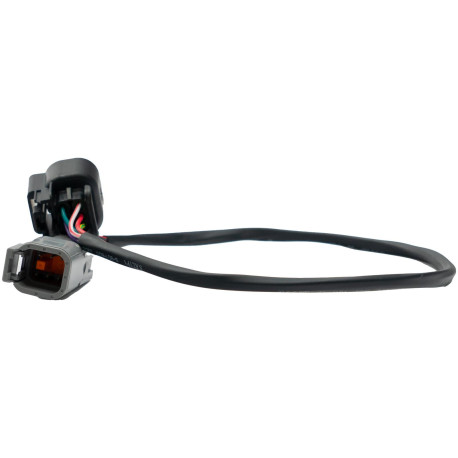

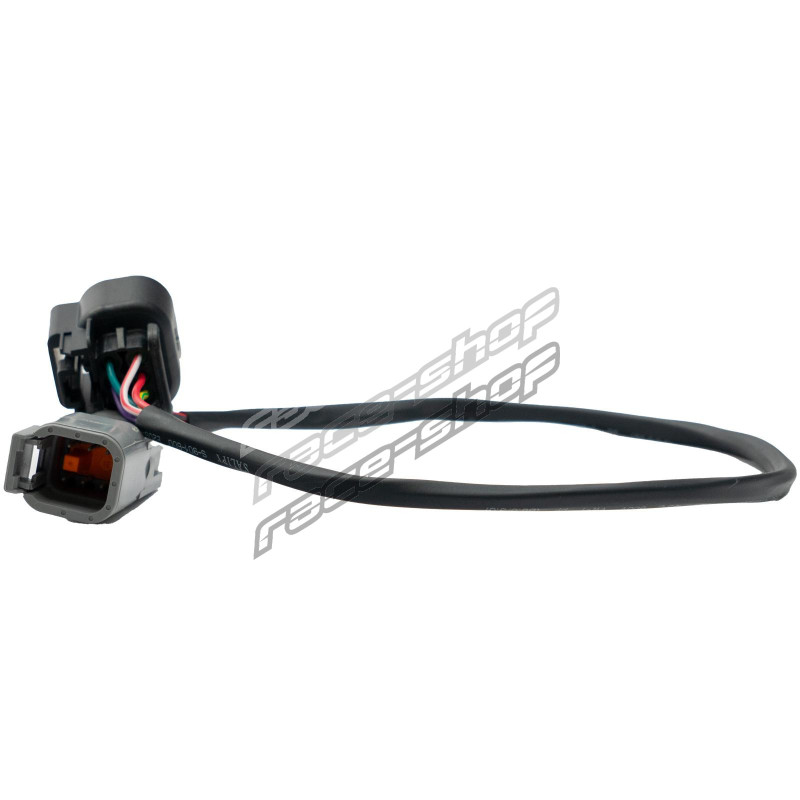

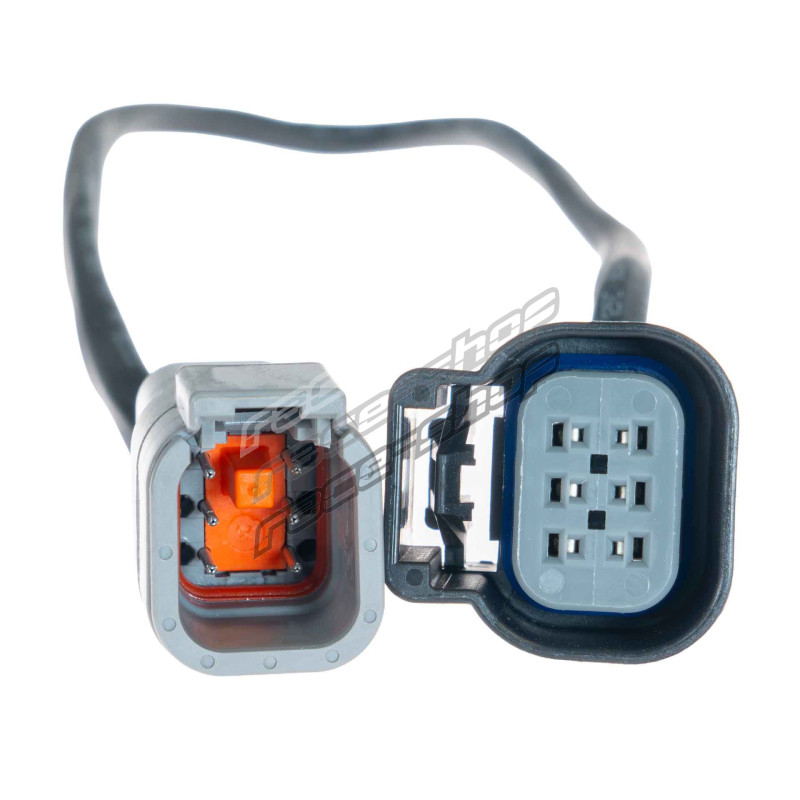

Link LS DBW Adapter Loom
The Link LS Drive-by-Wire (DBW) Adapter Loom is a plug-and-play adapter designed to connect a factory Gen 4 GM LS Drive-by-Wire throttle body to the Link Terminated LS Engine Harness. It eliminates the need for custom wiring, providing a simple and reliable solution for Drive-by-Wire LS applications.
New product
101-0304
Frequently bought together
The Link LS Drive-by-Wire (DBW) Adapter Loom is a plug-and-play adapter designed to connect a factory Gen 4 GM LS Drive-by-Wire throttle body to the Link Terminated LS Engine Harness. It eliminates the need for custom wiring, providing a simple and reliable solution for Drive-by-Wire LS applications.
Models Supported
GM Gen 4 LS2, LS3 and LS7 engines.
Factory GM Gen 4 Drive-by-Wire throttle bodies.
Link Terminated LS Engine Harness (PN 101-0300).
Link ECUs with Drive-by-Wire support.
Warnings
Designed exclusively for use with the Link Terminated LS Engine Harness.
Intended for Gen 4 GM Drive-by-Wire throttle bodies only.
Requires a Link ECU with Drive-by-Wire control capability.
Not required for cable throttle (DBC) applications.
Use the Link LS Stepper Adapter Harness (PN 101-0301) when using a factory GM idle air control (IAC) stepper motor.
Specifications
Highlights
The Link LS Drive-by-Wire Adapter has the following specifications:
- Plug-and-play adapter loom.
- Connects the Link LS Engine Harness to a factory Gen 4 GM Drive-by-Wire throttle body.
- No wiring modifications required.
- Utilises the pre-wired Drive-by-Wire connector on the Link LS Engine Harness.
- Interfaces with Aux 9, Aux 10, AN Volt 5, AN Volt 6, 5V reference and sensor ground.
- Manufactured in the USA.
- Write a review
Data sheet
| Type | Cables and connectors |
