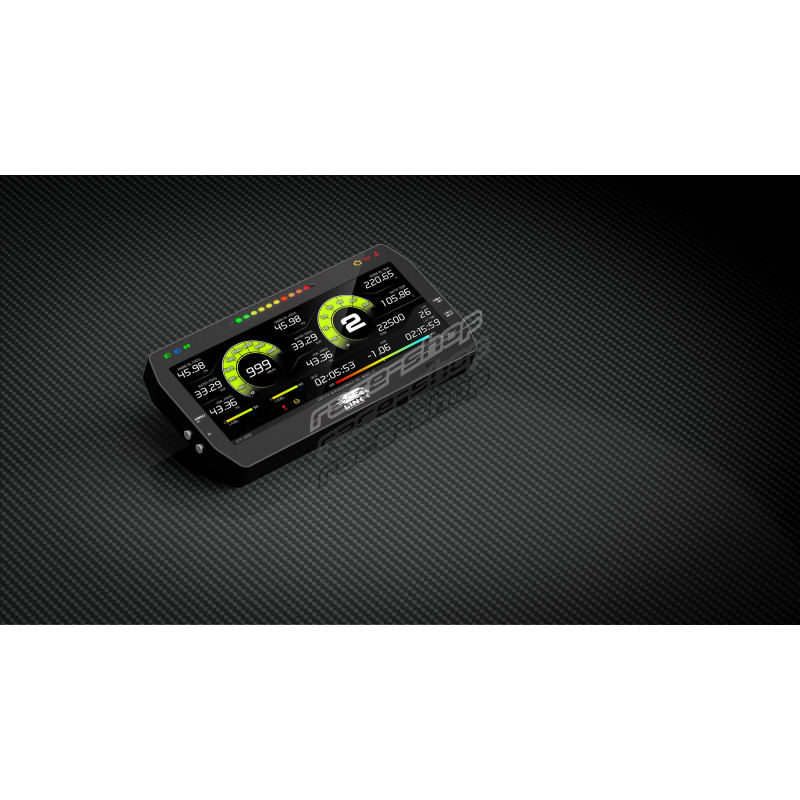

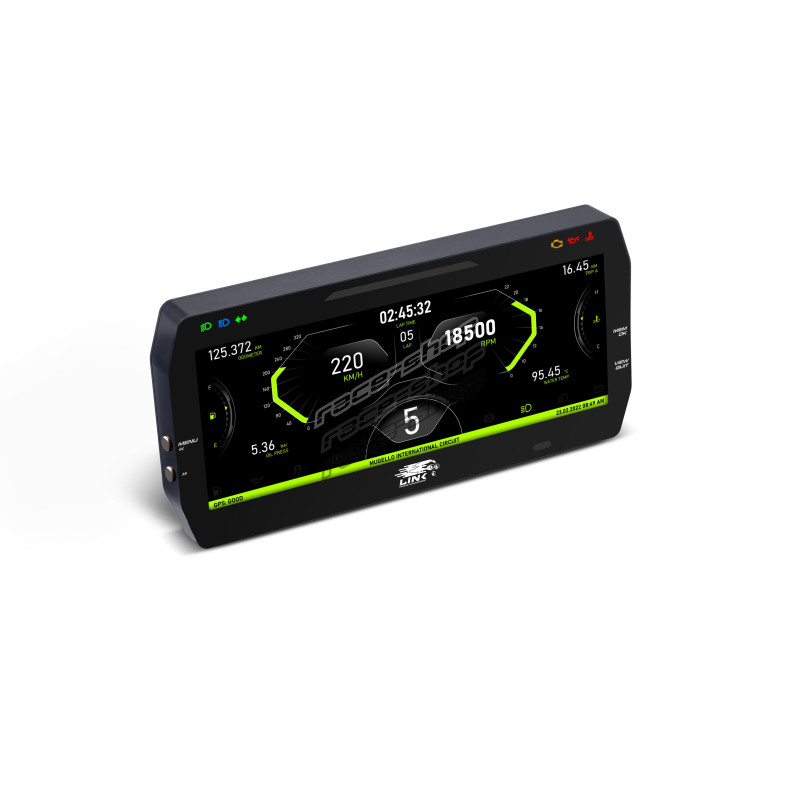

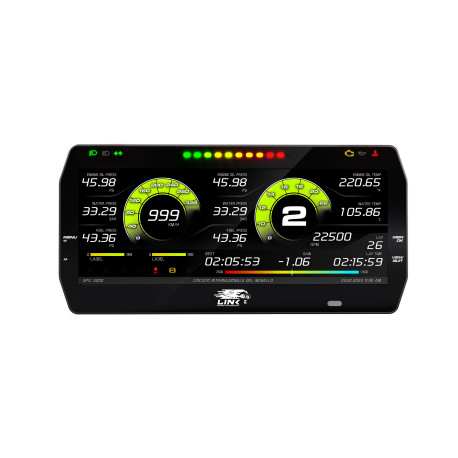

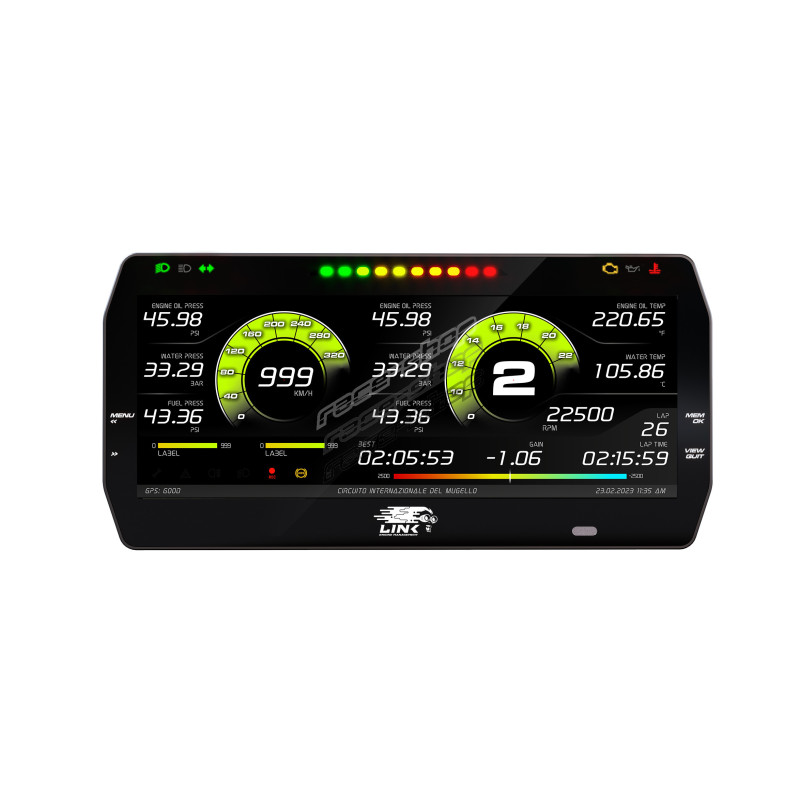

LINK MXT Strada 10-inch Dash - Street Edition

The Link / AiM MXT Strada 10inch Display provides the data you need, when you need it, through a large easy-to-read display helping you stay informed and focused whether cruising on the road or pushing for lap times. Featuring a high-contrast 10 inch TFT screen with automatic brightness adjustment, the MXT Strada provides excellent visibility in all lighting conditions. The larger display area and higher resolution allows more information to be viewed on one screen. Multiple configurable display pages allow drivers to prioritise the information most important to them, while ten configurable RGB shift lights, a custom warning screen and six warning LEDs all work together to ensure important alerts capture your attention, allowing you to react quickly and confidently. Each display is pre-loaded to accept the Link ECU CAN Stream, simplifying set-up. Simply enable the dash in the free PC Link software and the system communicates instantly, delivering accurate real-time data. The AiM MXT Strada 10" Display is the ideal solution for people who want real-time vehicle data, customisable warning alerts, clear shift lights, configurable layouts and seamless Link ECU integration with the benefit of maximum screen size and data visibility.

Models Supported

The AiM MXT Strada 10 inch display is pre-configured to work with all Link G4+/G4X/G5 Wire-in and Plug-in ECU's.

Warnings

This listing is for the 'Street edition', please see the 'Race edition' if you are looking for a dash for motorsport purposes. The Strada dash is also available in 5-inch (MXS) and 7-inch (MXG) versions.

The AiM MXT Strada is a high-contrast, large 10" TFT display with the following features:

Highlight Features

• 10" high-contrast TFT display
• 1280 x 480 pixel resolution
• Automatic brightness adjustment via ambient light sensor
• 10 freely configurable RGB shift lights
• 6 freely configurable RGB warning LEDs
• Multiple configurable display pages and layouts
• Three CAN connections
• Compatible with CAN, RS232 and K-Line ECU communications
• Compatible with a range of ECUs including Link ECUs
• Seamless Link ECU CAN integration
• Supports AiM CAN accessories including GPS, Channel Expansion, TC Hub, Lambda Controller and SmartyCam HD
• 8 fully configurable analogue inputs (up to 1 kHz each)
• Dedicated speed input and coil RPM input
• Configurable digital output

Specifications

Highlights

The AiM MXT Strada is a high-contrast, large 10" TFT display with the following specifications:

Screen Display

• Display: 10" Thin-Film Transistor (TFT)
• Resolution: 1,280 × 480 pixels
• Contrast Ratio: 1,100:1
• Brightness: 800 cd/m² (1,100 Lumens)
• CAN Ports: 3
• Analogue Inputs: 8
• Digital Inputs: 1 speed input, 1 coil RPM input
• Digital Outputs: 1 (1A max)
• Connectors: 2 AMPSEAL connectors + 1 Binder connector

Product Dimensions

• 278mm(L) x 135mm(W) x 43.2mm(H) 10.95in(L) × 5.31in(W) × 1.70in(H)

Product Weight

• 1,100 grams (38.80 ounces)

Material

• Anodised Aluminium with Metallic Pushbuttons

Electrical

• Maximum Continuous Current Draw: 450mA

Misc.

• IP67 rated

What's in the Box

• Link MXT Strada 10" Street Edition Display
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts

Connector

• AMPSEAL 3 Row 23 Position, Part number 770680-1
• AMPSEAL 3 Row 14 Position, Part number 776273-2
