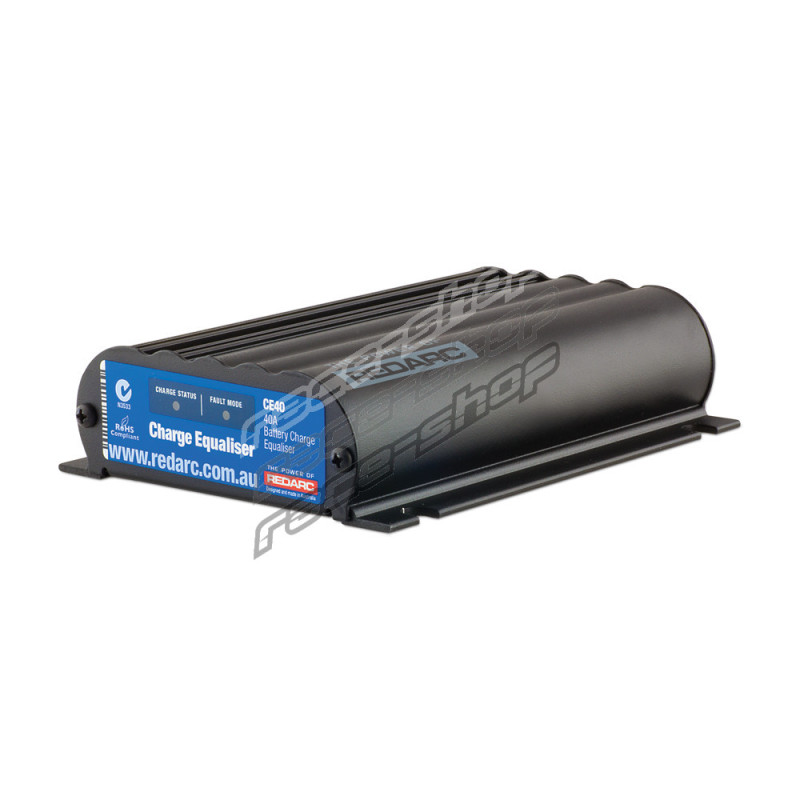

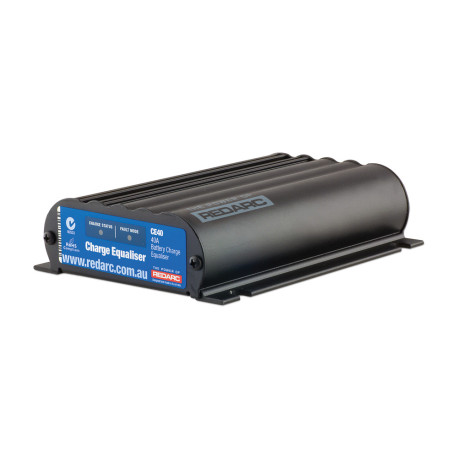

REDARC CE40S2 charge equaliser 24 V to 12 V, 40 A

The REDARC CE40S2 charge equaliser 24 V to 12 V, 40 A lets you tap 12 V from the centre of a series-connected, two-battery 24 V DC electrical system and still keep an equal charge across both batteries. It is especially useful when there is no space for a separate 12 V battery or one would cost too much to fit. A voltage reducer limits current, but this unit draws power directly from the battery, so it can handle much larger peak current draws.

Features:

• Based on the award-winning REDARC BCDC platform
• Keeps both 24 V system batteries equally charged
• Extends battery life, which cuts down time and running costs
• Peak load currents are limited only by the battery
• High peak current capability and fast transient response
• Safe, clean and stable 12 V supply for loads
• Input isolation, so no input relay or battery isolator is needed
• Easier to install than the previous version
• Sealed design suited for commercial applications
• Designed for harsh conditions

Specifications:

• Input (operating) voltage: 20 – 32 V DC
• Continuous output current: 40 A
• Output system voltage: 6 – 16 V DC
• Input fuse rating: 60 A
• Output fuse rating: 60 A
• Standby current draw: less than 100 mA
• Dimensions (L × W × H): 150 × 120 × 37 mm
• Weight: 0.68 kg
• Type approval: E and CE
