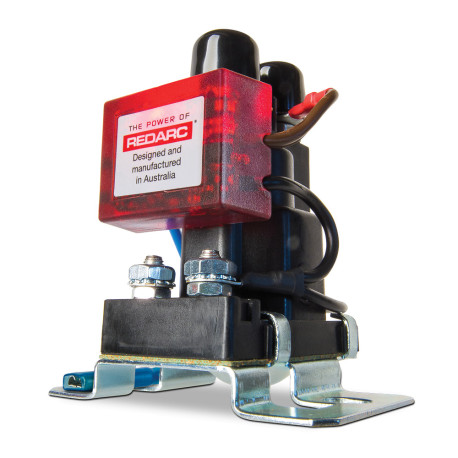

REDARC SBI24 Smart Start battery isolator, 24 V, 100 A

The REDARC SBI24 Smart Start is a battery isolator for 24 V dual battery systems that separates the start and auxiliary batteries. It is microprocessor-controlled and stops a low-charged auxiliary battery from draining the start battery, while the auxiliary battery still powers non-essential loads. Unlike diode isolators, it has no voltage drop, and its electronics stop the solenoid from generating high voltage transients. It is mostly used in commercial vehicles and should be installed with a high quality fuse kit.

Features:

• Microprocessor control
• 100 A continuous rating at 24 V DC
• Power saving technology that prevents high voltage transients from the solenoid
• No voltage drop of the kind found in diode isolators
• Fault detection with LED indication of operation, warning of over-voltage, voltage drop and excessive current draw
• Fully surge protected
• Silver contacts for longer life, suitable for marine applications
• Overmould design
• Compact size and easy installation
• CE type approval

Specifications:

• Operating voltage: 24 V DC
• Continuous output current: 100 A
• Input fuse rating: 100 A
• Output fuse rating: 100 A
• Dimensions (L × W × H): 80 × 75 × 63 mm
• Weight: 0.2 kg
• Type approval: CE
