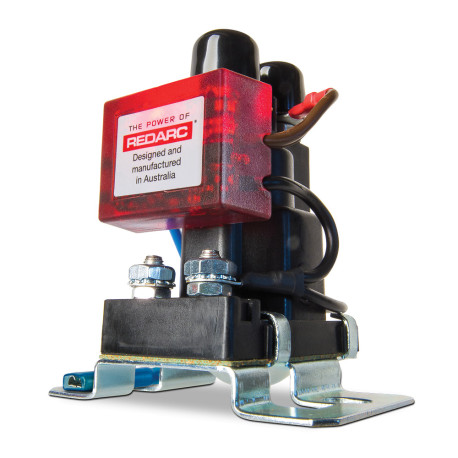

REDARC SBI12 Smart Start battery isolator, 12 V, 100 A

The REDARC SBI12 Smart Start is a microprocessor-controlled battery isolator for dual battery systems, working as a solenoid priority system. It protects the start battery from excessive discharge while the auxiliary battery supplies non-essential loads. It runs on 12 V DC and is rated for 100 A continuous.

The battery isolator is mainly used in 4WD and commercial vehicles. Its electronics stop the solenoid from generating high-voltage transients. It does not have the voltage drop of diode-type isolators. Standby current draw is low. Fault detection with an LED indicator warns of over-voltage, voltage drop and excessive current draw. It is a safe way to charge a dual battery system and should be installed with a high-quality fuse kit.

Features:

• Microprocessor control
• Overmould design
• Compact size and easy installation
• Silver contacts for longer life, suitable for marine applications
• Power-saving technology with low standby current draw
• LED fault indication
• Fully surge protected

Specifications:

• Input (operating) voltage: 12 V DC
• Continuous output current: 100 A
• Input fuse rating: 100 A
• Output fuse rating: 100 A
• Length: 80 mm
• Width: 75 mm
• Height: 63 mm
• Weight: 0.2 kg
• Type approval: CE
