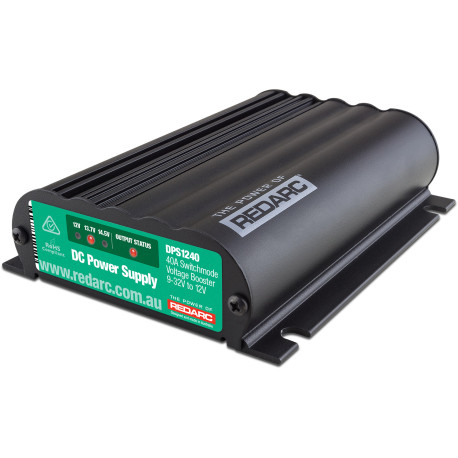

REDARC DPS1240 in-vehicle DC power supply, 12 V, 40 A

The REDARC DPS1240 is an in-vehicle DC power supply that delivers constant, regulated 12 V power at up to 40 A continuous for sensitive loads. With a wide 9 – 32 V input voltage range and a user selectable output voltage, it can power lamps, radios, small motors, computer and communications equipment, fridges, pumps and TVs from a 12 V automotive power system. The unit generates very little electrical noise, so it can power hi-tech radio systems without interference. It is fully encapsulated in REDARC's silicone elastomer, so it can be mounted on the outside of the vehicle and used in marine applications.

Features:

• Fully encapsulated in silicone elastomer, suitable for external mounting and marine use
• Ignition controlled
• No fan, for reduced noise
• Highly efficient design with regulated output
• Wide input voltage range of 9 – 32 V
• User selectable output voltage
• Low electrical noise, powers radio systems without interference
• Built-in protection against spikes and surges
• Protection against reverse polarity and incorrect connections
• Improved functionality and simpler installation

Specifications:

• Output system voltage: 12 V DC
• Continuous output current: 40 A
• Input (operating) voltage: 9 – 32 V DC
• Input fuse rating: 60 A
• Output fuse rating: 60 A
• Dimensions (L × W × H): 150 × 120 × 37 mm
• Weight: 0.68 kg
• Type approval: E and CE
