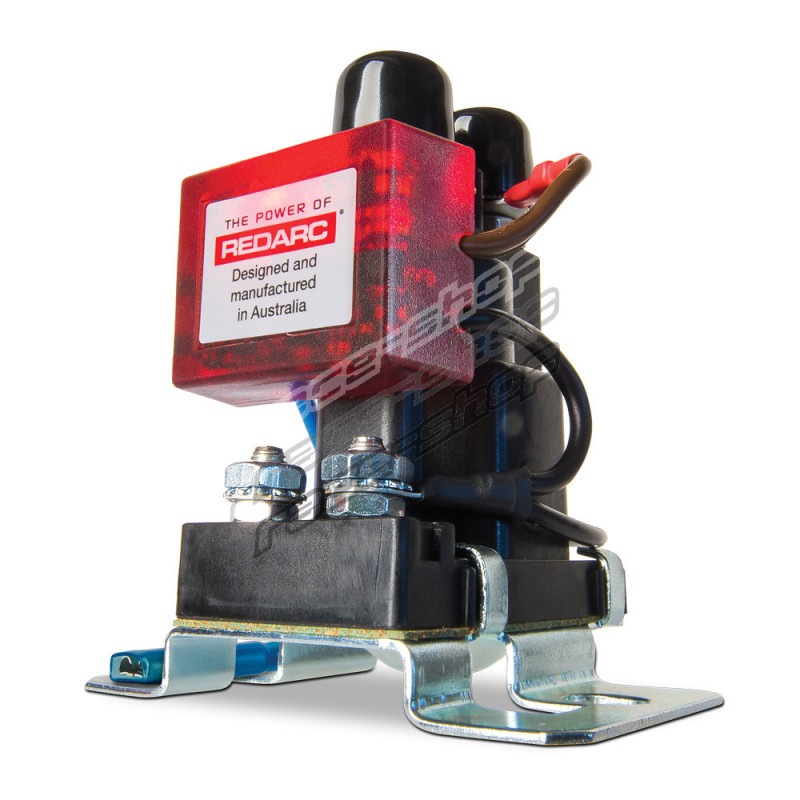

REDARC SBI12-LLD Smart Start BMS load disconnect controller, lithium battery, 12 V

The REDARC SBI12-LLD Smart Start is a microprocessor-controlled load disconnect isolator designed for 12 V lithium (LiFePO4) battery systems. It stops auxiliary loads from over-discharging the auxiliary battery, so the battery stays above the level at which its internal protection circuitry would activate. Below this level, many chargers would not be able to recharge the battery. When the auxiliary battery is over-discharged, the unit turns off the connected loads, and it restores power to them once the battery voltage rises back to a suitable level.

Features:

• Automatic load disconnect at low voltage and reconnect when the voltage recovers
• Designed for lithium (LiFePO4) batteries
• Spike protection components that reduce the risk of damaging the unit
• Stops spikes from the solenoid coil from affecting vehicle equipment
• Overmould design
• Compact size, easy to install
• Silver contacts for longer life, suitable for marine use
• Power-saving technology
• Fault indication
• Fully surge protected

Specifications:

• System voltage: 12 V nominal
• Turn-on voltage: 11.0 V
• Turn-off voltage: 10.5 V
• Turn-on delay: 10 s
• Turn-off delay: 2 s
• Max. continuous current: 100 A
• Max. inrush current: 400 A
• Standby current: < 5 mA
• Operating current: < 0.1 A
• Main stud torque: 5 – 6.2 Nm
• Dimensions: 75 x 70 x 80 mm
• Weight: 200 g
• Standards: CE, C-Tick, AS/NZS CISPR11:2004
