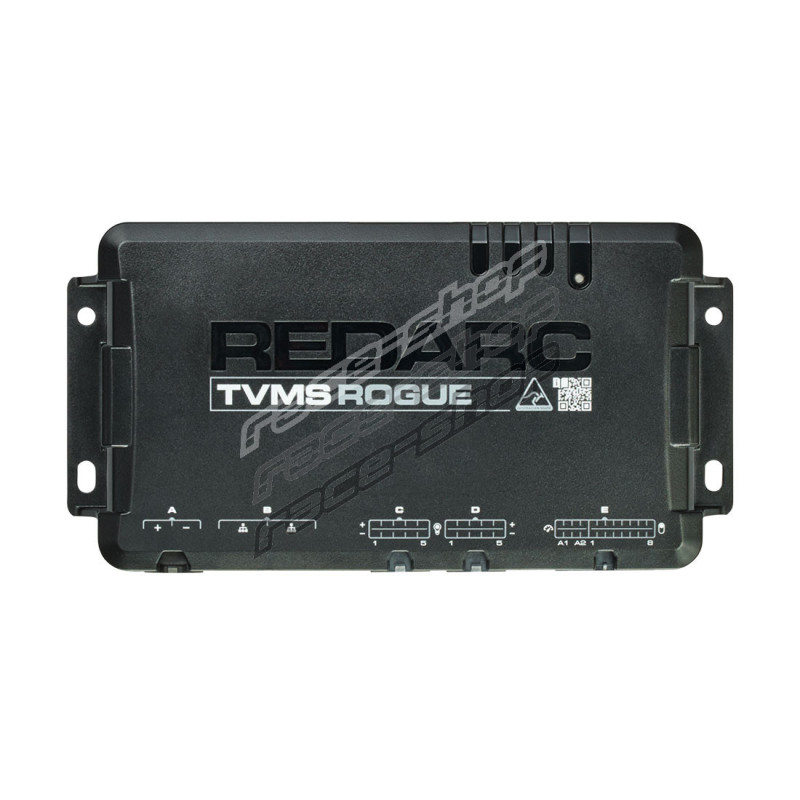

REDARC TVMS1240 RedVision Rogue control module

The REDARC TVMS1240 RedVision Rogue control module is part of the RedVision system for controlling and automating the electrical system of a 4x4, caravan, camper, RV or work vehicle. It controls lights, fridges, TVs, fans, pumps and inverters, either from the RedVision screen or from a mobile device connected over Bluetooth. It is just 25 mm thick and has built-in smart fuses. Used with the RedVision screen and the Manager30 battery management system (both sold separately), it shows real-time state of charge, power input and output, and ambient temperature.

Features:

• 10 dimmable outputs, 10 A each
• 8 inputs for physical switches, so you can control lights from each room of a caravan or add reed switches that turn on a light when a door opens
• 2 analogue tank level inputs for accurate monitoring of several tanks, compatible with most common tank level sensors
• On-board smart fuses
• Compact size, only 25 mm thick
• Streamlined installation and configuration
• Fully programmable
• Automation: switch off everything except the fridge with one press of a button, or power down non-essential loads when the batteries are running low
• Control from the RedVision screen, a Bluetooth mobile device or physical switches

Specifications:

• Input voltage: 9 - 16 V
• Max. rated output current: 40 A
• Outputs: 10 × 10 A, dimmable
• Switch inputs: 8
• Analogue tank level inputs: 2
• Operating temperature: -20 °C to 70 °C
• Dimensions (L × W × H): 250 × 130 × 25 mm
• Weight: 0.43 kg
• Screen compatibility: DISP4300-RC made from January 2023 onwards (serial numbers starting with "23"). Displays made from July 2022 to January 2023 (serial numbers "2207" to "2212") can be upgraded
