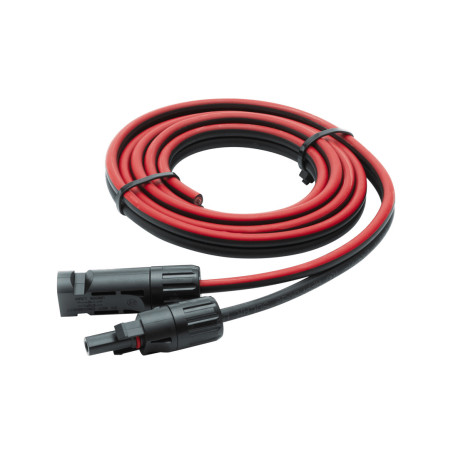

REDARC MC4 regulator to panel solar cable, 4 mm², 1.5 m

The REDARC MC4 regulator to panel solar cable is 1.5 m long and links a solar regulator to a solar panel. It is a twin shielded 4 mm² cable with a UV stabilised sheath, so it can be used outdoors. One end has an MC4-style solar connector and the other end is bare wire. The same cable comes with the REDARC SMK folding solar kit.

Features:

• Twin shielded 4 mm² solar cable
• UV stabilised insulation and sheath
• MC4-style solar connector and bare wire ends
• Tinned copper conductors
• Included in the REDARC SMK folding kit
• For use with REDARC SRC0003-B1 or SRC0003-B2

Specifications:

• Insulation/sheath: UV stabilised PVC
• Conductor: tinned copper
• Conductor size: 4 mm² (AWG 11, Ø 2.3 mm)
• Voltage rating: 50 V DC max
• Current rating: 30 A
• Cable length: 1.5 m (±100 mm)
• Connector type: MC4-style / bare wire
