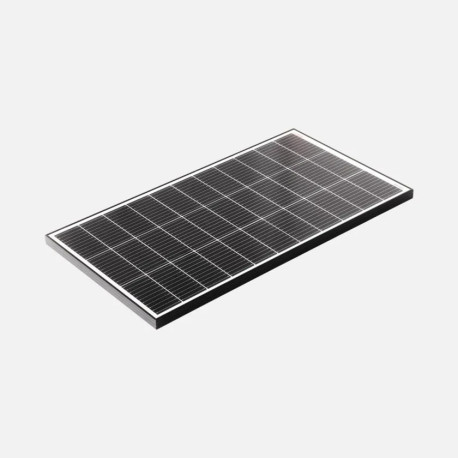

REDARC monocrystalline fixed solar panel, 120 W, black frame

The REDARC monocrystalline fixed solar panel puts out 120 W and is made for fixed installation. It is usually mounted on the roof of caravans, RVs and motorhomes, and also on some camper trailers and 4x4 vehicles. The monocrystalline cells are highly efficient. Tempered glass and a sturdy anodised aluminium frame stand up to harsh road conditions and extreme weather. For its power output the panel is lighter and smaller, and it works with existing REDARC solar regulators and solar accessories.

Features:

• High-efficiency monocrystalline construction
• Black anodised aluminium frame
• Robust tempered glass, suited to outdoor use
• Quality MC4-style connectors for easy installation
• Lighter weight and smaller footprint for its power output
• Each panel is tested at manufacture to conform to CE standards, so its output matches the specification

Specifications:

• Solar cell type: Monocrystalline
• Maximum power: 120 W
• Open circuit voltage: 22.0 V
• Max. power voltage: 18.8 V
• Short circuit current: 6.70 A
• Max. power current: 6.39 A
• Operating temperature: −40 °C to +85 °C
• Frame material: Anodised aluminium
• Connector type: MC4-style
• Cable length: 900 mm
• Dimensions: 1070 × 590 × 35 mm
• Weight: 6.7 kg
