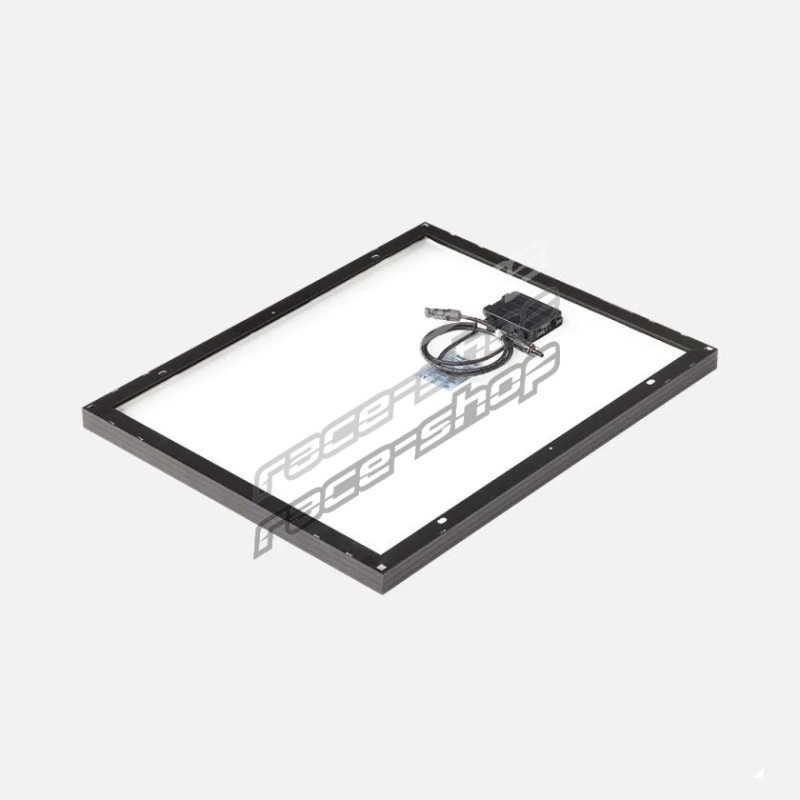

REDARC monocrystalline fixed solar panel, 80 W, black frame

The REDARC monocrystalline fixed solar panel, 80 W, is made for permanent installation. It usually goes on the roof of caravans, RVs and motorhomes, and also suits some camper trailer and 4x4 vehicle applications. The monocrystalline cells are highly efficient. A sturdy anodised aluminium frame and tempered glass coating help the panel withstand harsh road conditions and extreme weather. For its power output the panel is lighter and smaller, and it works with existing REDARC solar regulators and solar accessories.

Features:

• Highly efficient monocrystalline construction
• Black anodised aluminium frame
• Robust tempered glass coating, suited for outdoor use
• Quality MC4-style connectors for easy installation
• Lighter weight and smaller footprint for its power output
• Each panel is tested at manufacture to conform to CE standards, so its output matches the stated specification

Specifications:

• Solar cell type: Monocrystalline
• Rated power: 80 W
• Open circuit voltage: 22.56 V
• Max. power voltage: 18.8 V
• Short circuit current: 4.47 A
• Max. power current: 4.26 A
• Operating temperature: -40 °C to +85 °C
• Frame material: Anodised aluminium
• Connector type: MC4-style
• Cable length: 900 mm
• Dimensions: 740 x 590 x 35 mm
• Weight: 4.8 kg
