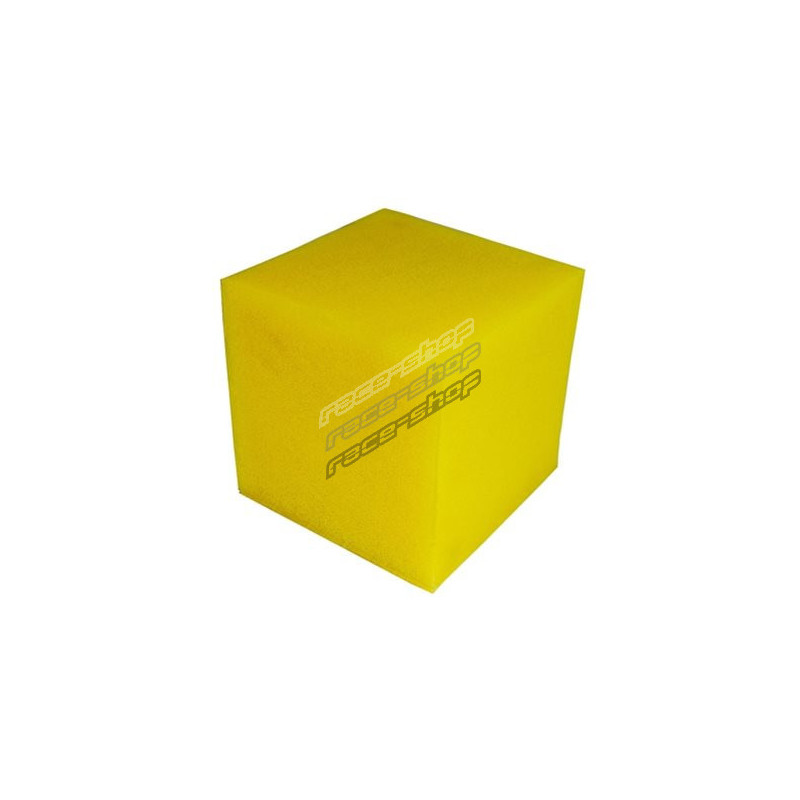

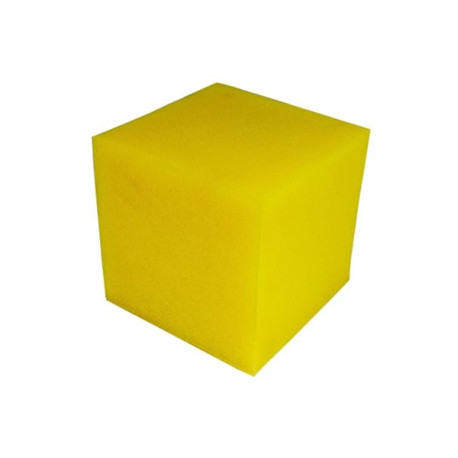

ATL Baffle Foam - Yellow (Petrol)

Product specification:

• For in-tank use with petrol
• Reduces fuel slosh
• Suppresses explosion (fuel cell must be at least 80% foam-filled)
• Sold in 27 Litre cubic foot blocks (300x300x300mm)
• Reduces fuel cell capacity by up to 5% (3% displacement, 2% 'clingage')

Technical data:

• Primary Uses – Petrol, Race Fuels, Oil, Kerosene, Avgas, JP Fuels
• Colour – Yellow
• Specification – MIL-B-83054
• Polyol Type – Polyester
• Density Range (lb/ft^3) – 1.20 to 1.45
• Porosity, pore size (ppi) – 8 to 18
• Air Pressure Drop (in. of water) – 0.140 to 0.230
• Tensile Strength (psi) Min – 15
• Tensile Strength at 200% Elongation (psi) Min – 10
• Ultimate Elongation (%) Min – 220
• Tear Resistance (lb/In) Min – 5
• Constant Deflection Compression Set (%) Max – 35

Compression Load Deflection at:

• 25% Deflection (psi) Min – 0.3
• 65% Deflection (psi) – 0.5
• Fuel Displacement/ Max Vol % – 2.5
• Fuel Retention (Max Vol %) – 2.5
• Flammability (in/min) Max – 15
• Extractable Materials (Wt %) Max – 3
• Entrained Solid Contamination (mg/ft^3) Max – 11
• Typical Electrical Resistivity (OHM-CM) – 8x10^13
