DAVIES CRAIG inline temperature sensor adapter 35 mm (kit), 0409

Description

This simple, economical Adaptor Kit allows easy fitting of a temperature probe directly into the engine's top radiator hose. The kit comes complete for a watertight and effective probe installation.

Two 1/4" NPT holes allow the fitment of a sensor and/or an air bleed. If only one hole is needed, a bung is included.

It suits temperature sensors with either a 5mm (3/16") or a 6mm (1/4") outside diameter and temperature gauge senders with a 1/4" NPT thread.

This is an accessory for use with the #0401, #0404, #0444 and #0455 Thermatic Switches.

Specifications

• Adaptor hose end size: 35mm
• Radiator hose diameter (with the extra rubber sleeves supplied): 32mm to 40mm (1¼" to 1½")
• Hose diameter with the 3mm sleeve adaptor (included, Part #18510): 41mm to 44mm
• Sensor holes: 2× 1/4" NPT
• Suitable sensor outside diameter: 5mm (3/16") or 6mm (1/4")
• Suitable gauge sender thread: 1/4" NPT

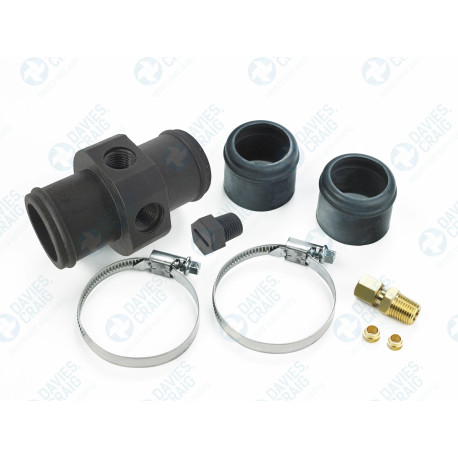

Package Contents

• 1× In-Line Adaptor 35mm (2× 1/4" NPT holes) and bung
• 2× EWP 3mm sleeve adaptor
• 1× olive for 5mm sensor
• 1× olive for 6mm sensor
• 1× compression fitting for 6.35mm sensor
• 2× hose clamps
• 1× instructions

Installation

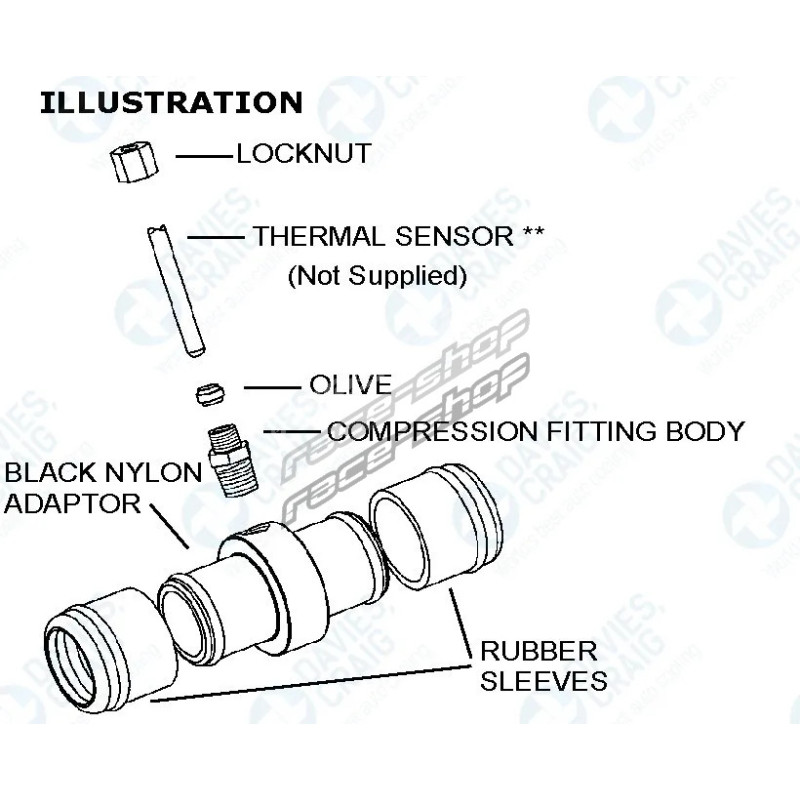

Fit the probe into the compression fitting, remove about 17mm (2/3") of the radiator hose, fit the adaptor between the two hose ends and secure the hose clamps.

To suit the Davies Craig Thermal Switch (Part #0400, #0401, #0404), use the 6mm olive supplied.
