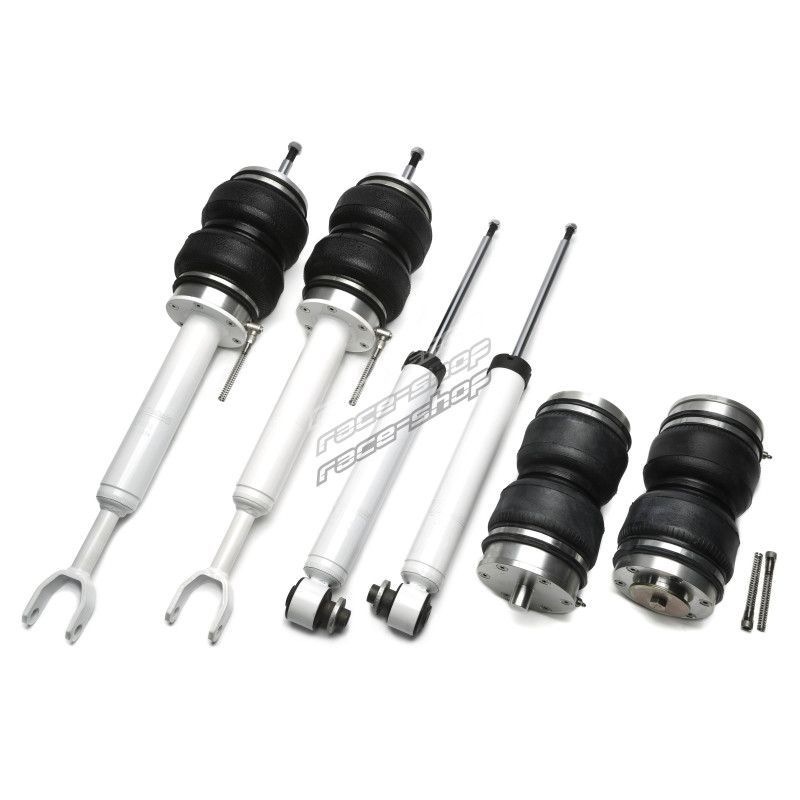

TA-Technix air suspension kit with adjustment system for Audi A6 Limousine Typ 4F C6

TA Technix air damper set for air suspension / Airride
with additional thread adjustment system on front axle + rear axle

suitable for:
Audi A6 Sedan, Type 4F, C6
Audi A6 Avant, Type 4F, C6
incl. Quattro, S6, models without air suspension
year of construction 2004 - 2011
maximum front axle load: 1350 kg
maximum rear axle load: 1335 kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

The clearance between the wheels/tires and the shock absorber should be at least 5mm. If the distance is smaller, the minimum distance must be established by suitable measures. When using standard wheel/tire combinations, commercially available wheel spacers are required.

Axle:

-

KeyType number:

12238,12241,12250,17893,17894,17895,17896,17897,17898,18025,18415,18416,18417,18418,18419,18420,18421,18422,18423,18424,18425,18426,18675,18676,18677,18940,18941,19232,19233,19234,19235,19456,19457,19476,19477,19478,19479,20109,20110,20608,21318,21319,21323,23187,23188,23728,26549,26550,30361,30362,30363,30364,30365,30366,30367,30369,30370,30373,30374,30375,30376,30377,30378,30379,30380,30381,31513,31514,31517
