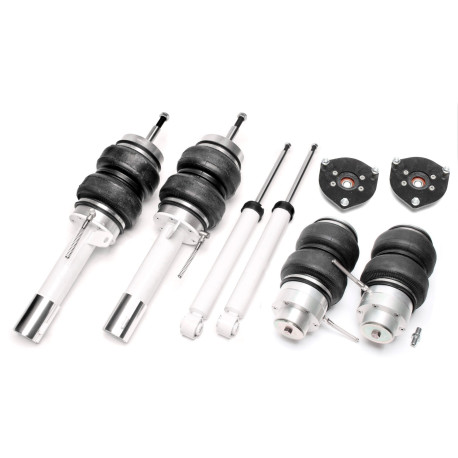

TA-Technix airride kit with air management for Volkswagen Touran 1T

TA Technix Air Damper Kit + TA Technix Air Management with Air Generation Kit

The multi-function display is operated intuitively by means of a freely positionable rotary knob / potentiometer.
The electronic, pressure-based control unit has the option of storing 4 freely configurable bellows pressures / ride heights on an axle-by-axle basis.

With the help of the enclosed operating instructions and the simple menu navigation, the following additional functions, among others, can be used:

- 4 driving heights
- Adjustment of the driving height with ignition on and off (autolevel)
- Axially adjustable excess bellows pressure for optimum adjustment of the ride height
- Protection against foreign use (offers the possibility to lock the system at the desired ride height within 3 seconds)
- maximum as well as minimum tank pressure (adjustable)
- Protection of the on-board power supply through definable upper and lower limits of the on-board voltage
- freely configurable valve times
- Modification of the control unit lighting / ECU lighting
- Minimum pressure of the front and rear axle (falling below this level triggers a visual warning signal and is necessary for TÜV registration)

includes:
- Multifunctional display
- Rotary knob / potentiometer including 4 caps in black, red, blue and silver
- anti-reflective foil
- prefabricated wiring harness
- Control unit / ECU
- 3 update cables
- TA Technix 444C compressor in black
- 19 litre tank in black
- Electronic set including compressor relay
- Fuse holder including fuse
- 4x 2/2 way valves 1/4 with pressure sensors
- 25 meter 6mm PU hose in black
- all fittings including check valve and safety valve
- water separator
- emergency filling valves

suitable for:
Volkswagen Touran, Type 1T
year of construction 2003 - 2015
50mm and 55mm suspension strut
maximum front axle load: 1200kg
maximum rear axle load: 1210kg

Approval:

Including parts report (§19.3)

Implementation notes:

-

Notes:

50mm and 55mm strut diameter
We recommend using shorter coupling rods, e.g. E.g. EVOPE003

Axle:

-

KeyType number:

2477,9620,17119,17174,17175,17572,17766,17768,17770,18700,19634,19638,19651,19964,27994,30978,34977,52426,55494,55508,55510,55513,55526,55585
