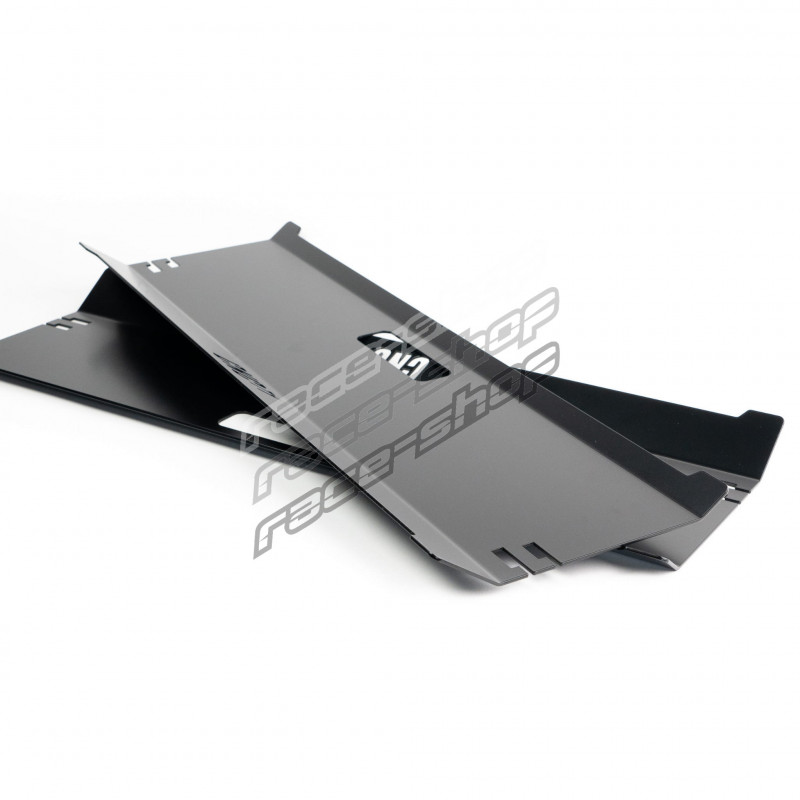

CNC71 convergence measurement plates

CNC71 Motorsport toe plates (Toe Plates) - a quick and simple way to measure and set wheel toe in all conditions.

Made of steel, powder-coated black.

• Size: 600 x 180 x 20 [mm]
• Rigid construction for accurate measurement
• Measuring tapes 3 m long (optional to purchase - not sold as a set with plates)

NOTE: CNC71 Motorsport alignment plates are used to set this parameter in a simplified way, which is very helpful in the event of a trip to the track, potential replacement of suspension elements away from the workshop or the need to set up the car the night before the event ;). However, this only allows for an approximate measurement with limited accuracy. In order to precisely set the suspension geometry, it is recommended to visit an appropriate workshop.

Additionally, in the case of rims whose arms protrude outside the vehicle beyond the plane defined by the rim edge, and in the case of high-profile (and low-pressure) tires that deform significantly at the point of contact with the ground, the measurement may be distorted due to the inability to properly plate settings in relation to the wheel. To determine the reference plane, it is necessary to place the board in at least 3 points.
