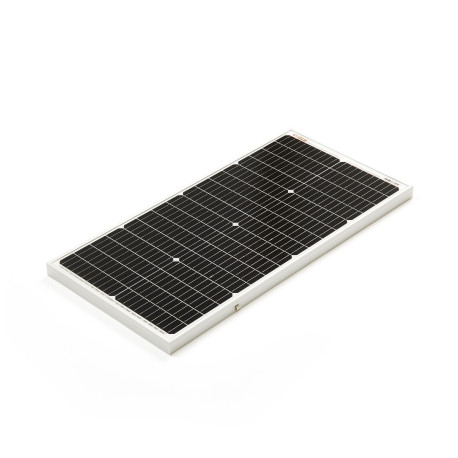

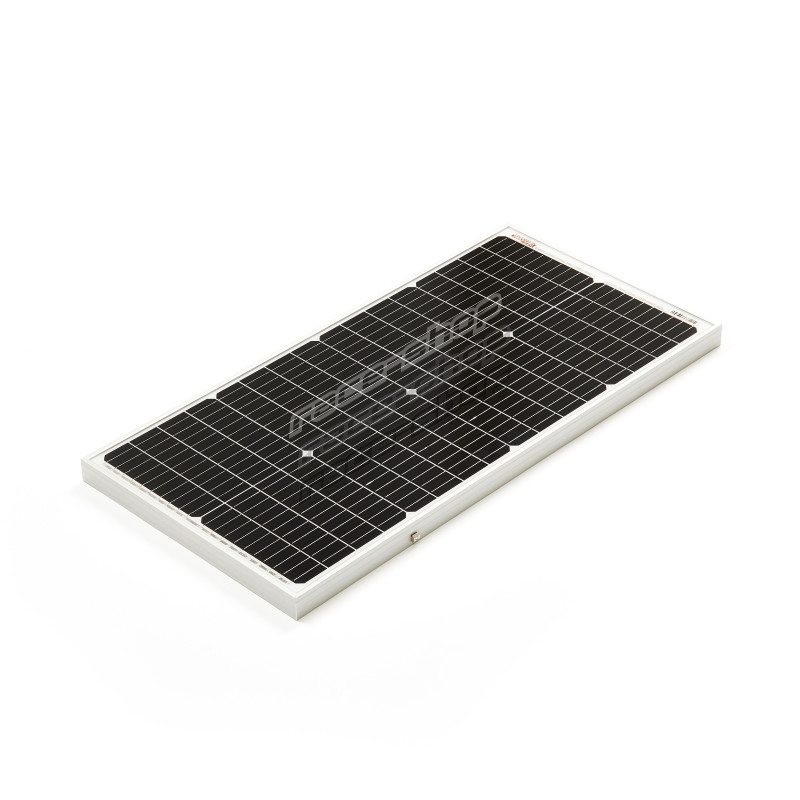

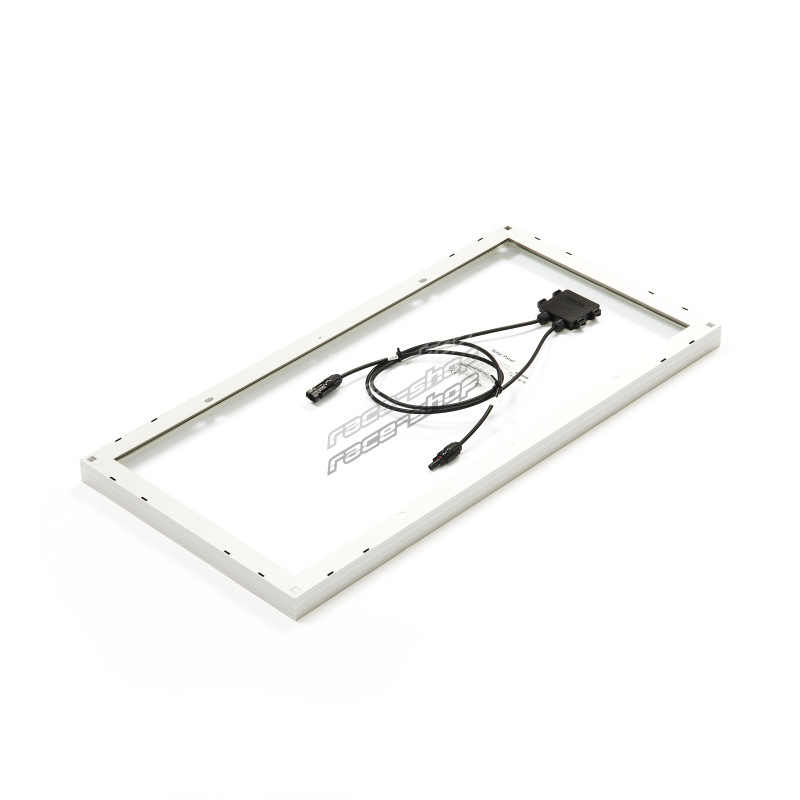

REDARC monocrystalline fixed solar panel, 60 W, silver frame

The REDARC 60 W monocrystalline fixed solar panel is designed for fixed installation. It is typically mounted on the roof of a caravan, RV or motorhome, and also suits some camper trailers and 4x4 vehicles. A tempered glass coating and a sturdy anodised aluminium frame help it withstand harsh road conditions and extreme weather. For its power output, the panel is lighter and smaller than comparable panels and has higher cell efficiency. It works with REDARC solar regulators and accessories. Each panel is tested at manufacture to conform to CE standards, so its output matches the specification.

Features:

• High-efficiency monocrystalline cell construction
• Anodised aluminium frame
• Robust tempered glass coating
• Quality MC4-style connectors for easy installation
• Suitable for outdoor use
• Each panel tested at manufacture to conform to CE standards

Specifications:

• Solar cell type: monocrystalline
• Maximum power: 60 W
• Open circuit voltage: 21.84 V
• Maximum power voltage: 18.2 V
• Short circuit current: 3.46 A
• Maximum power current: 3.30 A
• Operating temperature: –40 °C to +85 °C
• Frame material: anodised aluminium
• Connector type: MC4-style
• Cable length: 900 mm
• Dimensions: 805 x 395 x 35 mm
• Weight: 3.7 kg
