CYBUL BMW E46 / Z4 V8 M60/M62 engine swap kit

!NOTE: Modification of the pump required

This product was designed for the most demanding customers looking for an E46 and Z4 S62B50 engine swap kits.

Main benefits:

• Lifetime warranty for the oil pressure valve – thanks to the custom-made valve your oil pressure will always be stock-like
• The front-rear position of the engine is steplessly adjustable
• No modifications to the bodyshell are required, the bonnet closes without lowering the subframe
• Fits RHD and LHD cars

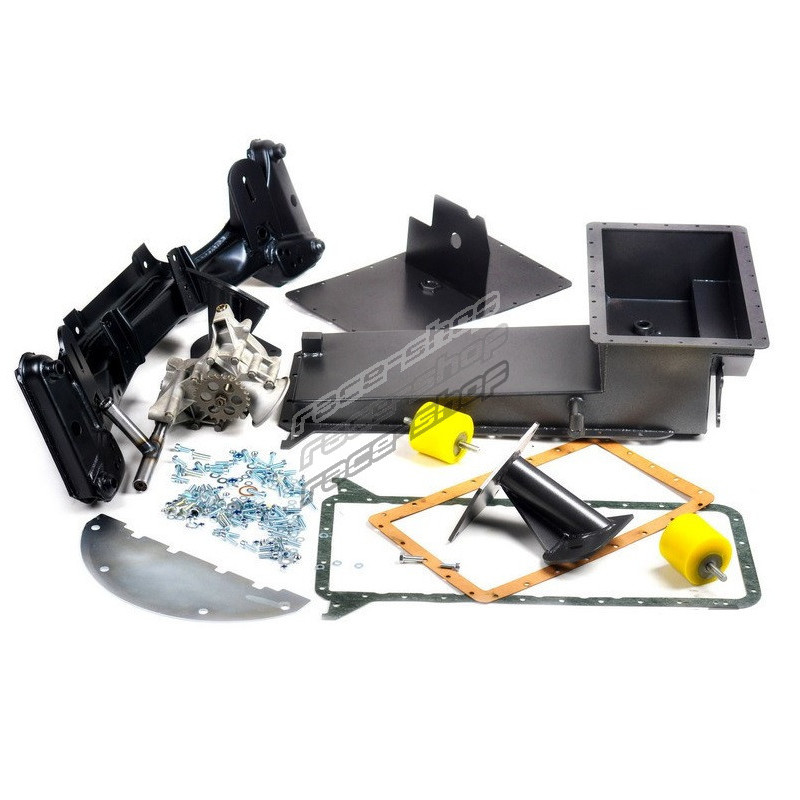

• Comes as a complete set – with all the parts needed to place the engine in the engine bay

Key Features:

• Oil pan
• Subframe
• Engine mounts
• 90ShA polyurethane engine pillows
• Gearbox blanking bracket
• Seals
• Set of bolts and nuts

Includes:

• Oil pan
• Subframe
• Engine mounts
• 90ShA polyurethane engine pillows
• Gearbox blanking bracket
• Seals
• Set of bolts and nuts

An intermediate steering shaft with a smaller diameter is required when using X5 headers. It’s available in our shop, it will be suggested during the checkout.

Depending on the chosen gearbox, modification of the driveshaft, gearbox mount and gear leaver may be required.

Kit requires using pump and chain from E32, E34, E38 or E39.
