*366 572

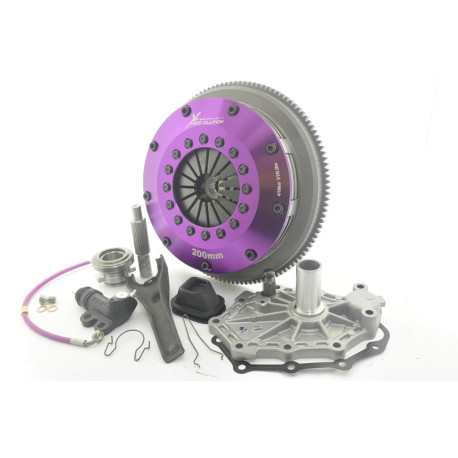

KNI20526-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
2.015,70 € tax incl.
Sold out
In stock: 0 psc
Product is unavailable. Please choose other goods.
For automatic information about product status update,
click on "notify me".
click on "notify me".
KNI20526-2B
9337467003734
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KNI20526-2B
Weight: 17.7
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25.4
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate
Pull to Push Type conversion
Suitable for:
- Nissan/Stagea/WC34 | 2.5/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
Nissan/Stagea/WC34 | 2.5 AWD/1996.09-2001.10/RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10)
Nissan/Skyline/R34 | 2.5 4x4/1998.06-2000.07/RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07)
Nissan/Stagea/WC34 | 2.5 Turbo AWD/1996.09-2001.10/RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10)
Nissan/Skyline/R34 | 2.5/1998.06-2006.01/RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01)
Nissan/Skyline/R34 | 2.5/1998.05-2002.08/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08)
Nissan/Skyline/R34 | 2.5 Turbo/1998.05-2006.01/RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01)
Nissan/Skyline/R32 | 2.6 Twin Turbo 4x4/1989.04-1993.06/RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06)
Nissan/Skyline/R33 | 2.6 Twin Turbo 4x4/1994.07-1999.09/RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09)
Nissan/Stagea/WC34 | 2.6 Twin Turbo/1996.09-2001.10/RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Nissan | Skyline | R32 2.6 Twin Turbo 4x4 | RB26DETT 2569 Petrol 206 kW 280 BHP (1989.04 - 1993.06) |
| Nissan | Skyline | R33 2.6 Twin Turbo 4x4 | RB26DETT 2569 Petrol 206 kW 280 BHP (1994.07 - 1999.09) |
| Nissan | Skyline | R34 2.5 4x4 | RB25DEH 2498 Petrol 147 kW 200 BHP (1998.06 - 2000.07) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 187 kW 254 BHP (1998.06 - 2006.01) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2002.08) |
| Nissan | Skyline | R34 2.5 Turbo | RB25DET 2498 Petrol 206 kW 280 BHP (1998.05 - 2006.01) |
| Nissan | Stagea | WC34 2.5 AWD | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.5 | RB25DE 2498 Petrol 140 kW 190 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.5 Turbo AWD | RB25DET 2498 Petrol 173 kW 235 BHP (1996.09 - 2001.10) |
| Nissan | Stagea | WC34 2.6 Twin Turbo | RB26DETT 2569 Petrol 206 kW 280 BHP (1996.09 - 2001.10) |
