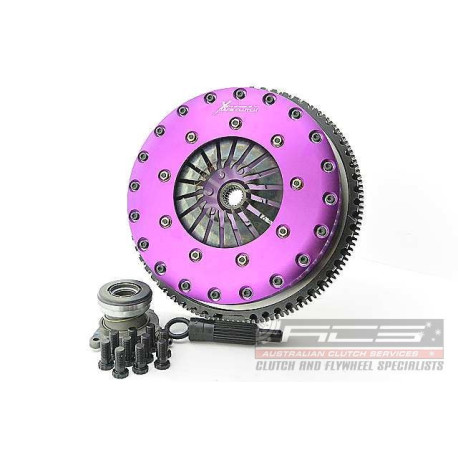

KFD23648-2B Xtreme Performance 230mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1000Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
Sold out
2.374,80 € tax incl.
Product is unavailable. Please choose other goods.
For automatic information about product status update,
click on "notify me".
click on "notify me".
KFD23648-2B
9337467305074
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Sprung Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1000Nm | 1000Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KFD23648-2B
Weight: 16.44
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1000
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Suitable for:
- Volvo/S40/T5/2004.01-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12)
Volvo/S40/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo/V50 (545)/T5/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo/V50 (545)/T5 AWD/2004.04-2007.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12)
Volvo/C30 (533)/T5/2006.10-2012.12/B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12)
Volvo/V50 (545)/T5 AWD/2007.03-2010.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12)
Volvo/C30 (533)/T5/2007.03-2012.12/B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12)
Volvo/C30 (533)/T5/2007.10-2013.12/B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12)
Ford/Mondeo/2.5/2007.03-2012.12/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12)
Ford/Mondeo/2.5/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01)
Ford/Mondeo/XR5 Turbo/2007.03-2015.01/HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01)
Ford/S-MAX/2.5 ST/2006.05-2014.12/HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12)
Ford/Focus/2.5 ST/2005.10-2012.09/HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09)
Ford/Focus/2.5 RS/2009-2012/JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Ford | Focus | 2.5 RS | JZDA 2521 Petrol 224 kW 305 BHP (2009 - 2012) |
| Ford | Focus | 2.5 ST | HYDA 2522 Petrol 166 kW 225 BHP (2005.10 - 2012.09) |
| Ford | Mondeo | 2.5 | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2012.12) |
| Ford | Mondeo | 2.5 | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) |
| Ford | Mondeo | XR5 Turbo | HUBA 2521 Petrol 162 kW 220 BHP (2007.03 - 2015.01) |
| Ford | S-MAX | 2.5 ST | HUWA 2521 Petrol 162 kW 220 BHP (2006.05 - 2014.12) |
| Volvo | C30 (533) | T5 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2006.10 - 2012.12) |
| Volvo | C30 (533) | T5 | B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2012.12) |
| Volvo | C30 (533) | T5 | B 5254 T7 2521 Petrol 184 kW 250 BHP (2007.10 - 2013.12) |
| Volvo | S40 | T5 AWD | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
| Volvo | S40 | T5 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.01 - 2007.12) |
| Volvo | V50 (545) | T5 AWD | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
| Volvo | V50 (545) | T5 AWD | B 5254 T7 2521 Petrol 169 kW 230 BHP (2007.03 - 2010.12) |
| Volvo | V50 (545) | T5 | B 5254 T3 2521 Petrol 162 kW 220 BHP (2004.04 - 2007.12) |
