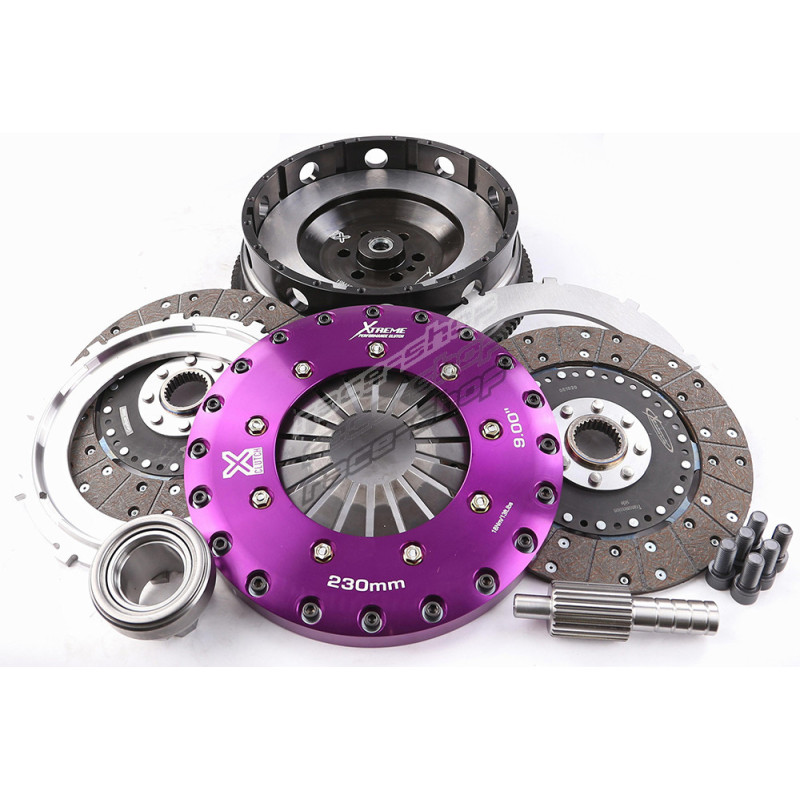

KBM23596-2G Xtreme Performance 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
KBM23596-2G
9337467108866
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application. The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
Tech. Info:
Reference: KBM23596-2G
Weight: 17.7
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 35
Torque (Nm): 1200
Flywheel Step: +3.8mm
Design: Twin Plate
Stage: Multiplate - street use only
Clamp Load: 1300Kg
Recommended for: High horsepower street driven vehicles
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Suitable for:
- BMW/3-Series/E90 | 335i/2006-2011/2979cc | 225KW | 306HP | N55 B30 A (2006-2011)
BMW/3-Series/E91 | 335i/2006-2012/2979cc | 225KW | 306HP | N55 B30 A (2006-2012)
BMW/3-Series/E92 | 335i/2006-2013/2979cc | 225KW | 306HP | N55 B30 A (2006-2013)
BMW/3-Series/E93 | 335i/2006-2013/2979cc | 225KW | 306HP | N55 B30 A (2006-2013)
BMW/3-Series/E91 | 335Xi/2007-2008/2979cc | 225KW | 306HP | N55 B30 A (2007-2008)
BMW/3-Series/E92 | 335Xi/2007-2010/2979cc | 225KW | 306HP | N55 B30 A (2007-2010)
BMW/1-Series/E82 | 135i/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013)
BMW/3-Series/E90 | 335i xDrive/2008-2011/2979cc | 225KW | 306HP | N55 B30 A (2008-2011)
BMW/3-Series/E91 | 335i xDrive/2008-2012/2979cc | 225KW | 306HP | N55 B30 A (2008-2012)
BMW/1-Series/E88 | 135i/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW/3-Series/E92 | 335i xDrive/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW/5-Series/F10 | 535i/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016)
BMW/5-Series/F11 | 535i/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017)
BMW/3-Series/F30, F80 | 335i/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015)
BMW/3-Series/F30, F80 | 335i xDrive/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015)
BMW/3-Series/F31 | 335i/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW/3-Series/F31 | 335i xDrive/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW/3-Series/F34 | 335i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F33, F83 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F32, F82 | 435i xDrive/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/1-Series/E82 | 135i/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013)
BMW/1-Series/E88 | 135i/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013)
BMW/3-Series/F30, F80 | 335i xDrive/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013)
BMW/1-Series/E82 | 1M/2011.03-2012.06/2979cc | 250KW | 340HP | N54 B30 A (2011.03-2012.06)
BMW/3-Series/F30, F80 | 335i xDrive/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015)
BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| BMW | 1-Series | E82 135i | 2979cc 225KW 306HP N55 B30 A (2007-2013) |
| BMW | 1-Series | E82 135i | 2979cc 240KW 326HP N55 B30 A (2007-2013) |
| BMW | 1-Series | E82 1M | 2979cc 250KW 340HP N54 B30 A (2011.03-2012.06) |
| BMW | 1-Series | E88 135i | 2979cc 225KW 306HP N55 B30 A (2008-2013) |
| BMW | 1-Series | E88 135i | 2979cc 240KW 326HP N55 B30 A (2008-2013) |
| BMW | 3-Series | E90 335i | 2979cc 225KW 306HP N55 B30 A (2006-2011) |
| BMW | 3-Series | E90 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2008-2011) |
| BMW | 3-Series | E91 335Xi | 2979cc 225KW 306HP N55 B30 A (2007-2008) |
| BMW | 3-Series | E91 335i | 2979cc 225KW 306HP N55 B30 A (2006-2012) |
| BMW | 3-Series | E91 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2008-2012) |
| BMW | 3-Series | E92 335Xi | 2979cc 225KW 306HP N55 B30 A (2007-2010) |
| BMW | 3-Series | E92 335i | 2979cc 225KW 306HP N55 B30 A (2006-2013) |
| BMW | 3-Series | E92 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2008-2013) |
| BMW | 3-Series | E93 335i | 2979cc 225KW 306HP N55 B30 A (2006-2013) |
| BMW | 3-Series | F30, F80 335i | 2979cc 225KW 306HP N55 B30 A (2011-2015) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2012-2015) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 240KW 326HP N55 B30 A (2012-2013) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 250KW 340HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F31 335i | 2979cc 225KW 306HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F31 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F34 335i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i | 2979cc 250KW 340HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i xDrive | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F33, F83 435i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 5-Series | F10 535i | 2979cc 225KW 306HP N55 B30 A (2010-2016) |
| BMW | 5-Series | F11 535i | 2979cc 225KW 306HP N55 B30 A (2010-2017) |
