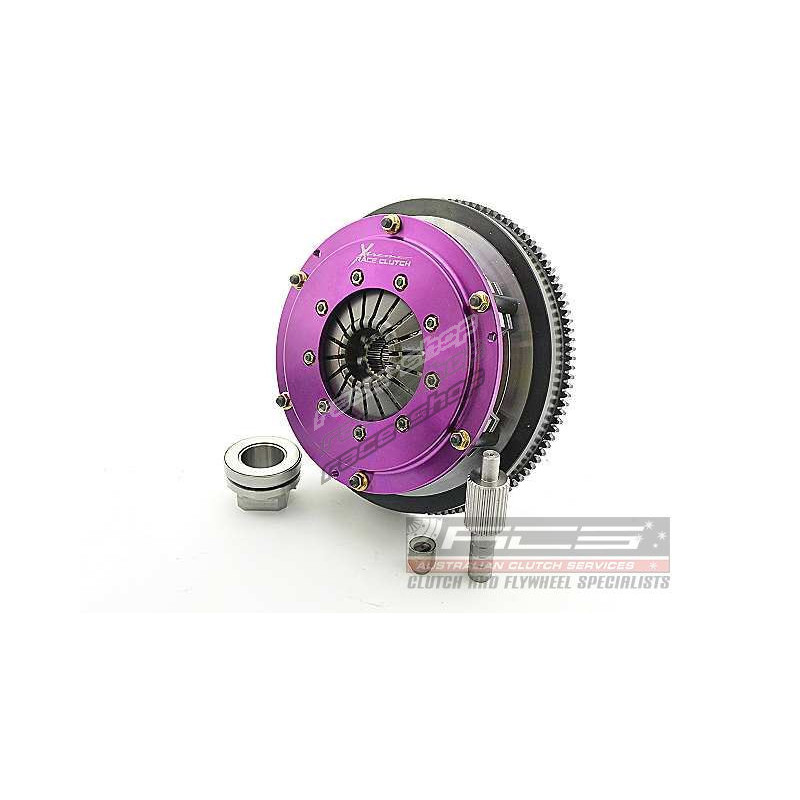

KBM20525-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
Sold out
2.330,20 € tax incl.
Product is unavailable. Please choose other goods.
For automatic information about product status update,
click on "notify me".
click on "notify me".
KBM20525-2B
9337467118919
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KBM20525-2B
Weight: 18.1
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 35
Torque (Nm): 1200
Flywheel Step:
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate
Suitable for:
- BMW/1-Series/E82 | 135i/2007-2013/2979cc | 225KW | 306HP | N55 B30 A (2007-2013)
BMW/1-Series/E88 | 135i/2008-2013/2979cc | 225KW | 306HP | N55 B30 A (2008-2013)
BMW/5-Series/F10 | 535i/2010-2016/2979cc | 225KW | 306HP | N55 B30 A (2010-2016)
BMW/5-Series/F11 | 535i/2010-2017/2979cc | 225KW | 306HP | N55 B30 A (2010-2017)
BMW/3-Series/F30, F80 | 335i/2011-2015/2979cc | 225KW | 306HP | N55 B30 A (2011-2015)
BMW/3-Series/F30, F80 | 335i xDrive/2012-2015/2979cc | 225KW | 306HP | N55 B30 A (2012-2015)
BMW/3-Series/F31 | 335i/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW/3-Series/F31 | 335i xDrive/2013-2015/2979cc | 225KW | 306HP | N55 B30 A (2013-2015)
BMW/3-Series/F34 | 335i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F33, F83 | 435i/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/4-Series/F32, F82 | 435i xDrive/2013-2016/2979cc | 225KW | 306HP | N55 B30 A (2013-2016)
BMW/1-Series/E82 | 135i/2007-2013/2979cc | 240KW | 326HP | N55 B30 A (2007-2013)
BMW/1-Series/E88 | 135i/2008-2013/2979cc | 240KW | 326HP | N55 B30 A (2008-2013)
BMW/3-Series/F30, F80 | 335i xDrive/2012-2013/2979cc | 240KW | 326HP | N55 B30 A (2012-2013)
BMW/1-Series/E82 | 1M/2011.03-2012.06/2979cc | 250KW | 340HP | N54 B30 A (2011.03-2012.06)
BMW/3-Series/F30, F80 | 335i xDrive/2013-2015/2979cc | 250KW | 340HP | N55 B30 A (2013-2015)
BMW/4-Series/F32, F82 | 435i/2013-2016/2979cc | 250KW | 340HP | N55 B30 A (2013-2016) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| BMW | 1-Series | E82 135i | 2979cc 225KW 306HP N55 B30 A (2007-2013) |
| BMW | 1-Series | E82 135i | 2979cc 240KW 326HP N55 B30 A (2007-2013) |
| BMW | 1-Series | E82 1M | 2979cc 250KW 340HP N54 B30 A (2011.03-2012.06) |
| BMW | 1-Series | E88 135i | 2979cc 225KW 306HP N55 B30 A (2008-2013) |
| BMW | 1-Series | E88 135i | 2979cc 240KW 326HP N55 B30 A (2008-2013) |
| BMW | 3-Series | F30, F80 335i | 2979cc 225KW 306HP N55 B30 A (2011-2015) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2012-2015) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 240KW 326HP N55 B30 A (2012-2013) |
| BMW | 3-Series | F30, F80 335i xDrive | 2979cc 250KW 340HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F31 335i | 2979cc 225KW 306HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F31 335i xDrive | 2979cc 225KW 306HP N55 B30 A (2013-2015) |
| BMW | 3-Series | F34 335i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i | 2979cc 250KW 340HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F32, F82 435i xDrive | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 4-Series | F33, F83 435i | 2979cc 225KW 306HP N55 B30 A (2013-2016) |
| BMW | 5-Series | F10 535i | 2979cc 225KW 306HP N55 B30 A (2010-2016) |
| BMW | 5-Series | F11 535i | 2979cc 225KW 306HP N55 B30 A (2010-2017) |
