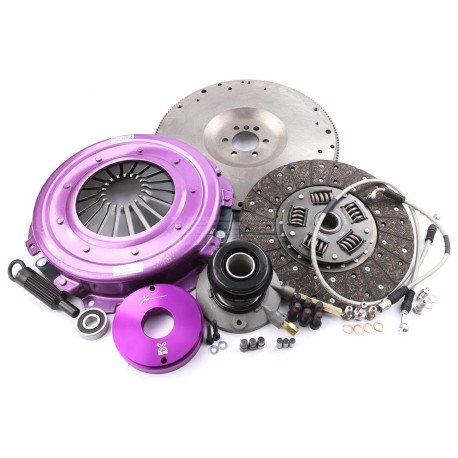

KGM28692-1A Clutch Kit Xtreme Performance Heavy Duty Organic Incl Flywheel & CSC 700Nm

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 700Nm
• Clamp load Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM28692-1A

Weight: 27.37

Note:

Clutch Disc Diameter (mm): 280
Clutch Disc Spline Count: 26
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 700
Flywheel Step: 0
Design: Single Plate
Stage: Stage 1
Clamp Load:
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Holden/H Series/VE | 6.0i V8/2006.07-2013.05/L76, L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2006.07 - 2013.05)
Holden/H Series/VE | 6.0 Flex/2010.09-2013.04/L77(364CUV8) 5967 Petrol 260 kW 354 BHP (2010.09 - 2013.04)
Holden/H Series/VE | 6.0i V8/2006.07-2013.05/L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.07 - 2013.05)
Holden/H Series/VE | 6.0i V8/2006.08-2013.05/L77(364CUV8), L98(364CUV8) 5967 Petrol 270 kW 367 BHP (2006.08 - 2013.05)
HSV/Senator/VE | 6.0i V8/2006.08-2013.04/LS2(364CUV8) 5965 Petrol 297 kW 404 BHP (2006.08 - 2013.04)
HSV/GTS/VE | 6.0i V8/2006.08-2008.03/LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV/Senator/VE | 6.0i V8/2006.08-2008.03/LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.03)
HSV/Clubsport/VE | 6.0i V8/2006.08-2008.06/LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2006.08 - 2008.06)
HSV/Maloo/VE | 6.0i V8/2007.10-2008.03/LS2(364CUV8) 5965 Petrol 307 kW 418 BHP (2007.10 - 2008.03)
HSV/GTS/VE | 6.2i V8/2008.04-2010.10/LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2010.10)
Vauxhall/VXR8 Maloo/6.2/2008.04-2011.08/LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2011.08)
HSV/Clubsport/VE | 6.2i V8/2008.04-2013.05/LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV/Maloo/VE | 6.2i V8/2008.04-2013.05/LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV/Senator/VE | 6.2i V8/2008.04-2013.05/LS3(376CUV8) 6162 Petrol 317 kW 431 BHP (2008.04 - 2013.05)
HSV/W427/VE | 7.0i V8/2008.07-2013.05/LS7 7009 Petrol 375 kW 510 BHP (2008.07 - 2013.05) ,
