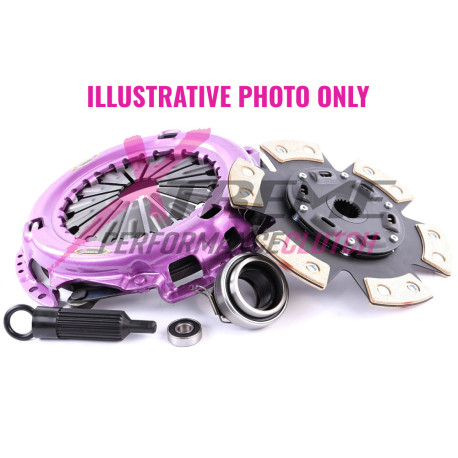

KHD22002-1R Clutch Kit Xtreme Performance Race Sprung Ceramic 510Nm

Xtreme Performance - Extra Heavy Duty Sprung Ceramic/-1RRecommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.

Specifications:

• Torque capacity 510Nm
• Clamp load Increased over standard
• Sprung Ceramic Friction Disc
• Extra Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KHD22002-1R

Weight: 8.5

Note:

Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 20
Clutch Disc Spline Diameter (mm): 22.4
Torque (Nm): 510
Flywheel Step: 0
Design: Single Plate
Stage: Stage 2R
Clamp Load:
Recommended for: Race Vehicles - Stage 2R
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Proton/Satria/1.8 GTi/2000.08-2006.05/4 G 93 (DOHC) 1834 Petrol 103 kW 140 BHP (2000.08 - 2006.05)
Proton/Persona 300/318 16V GTI/1996.03-2000.07/4 G 93 (DOHC) 1834 Petrol 99 kW 135 BHP (1996.03 - 2000.07)
Hyundai/Sonata/Gen. II | 1.8/1989.06-1991.03/G4CM 1796 Petrol 73 kW 99 BHP (1989.06 - 1991.03)
Hyundai/Lantra/Gen. I | 1.8 i.e. 16V/1990.10-1995.11/G4CN 1836 Petrol 93 kW 127 BHP (1990.10 - 1995.11)
Hyundai/S Coupe/1.5 i Turbo/1991.04-1996.05/G4EK-TC 1495 Petrol 85 kW 116 BHP (1991.04 - 1996.05) ,
