*39 574

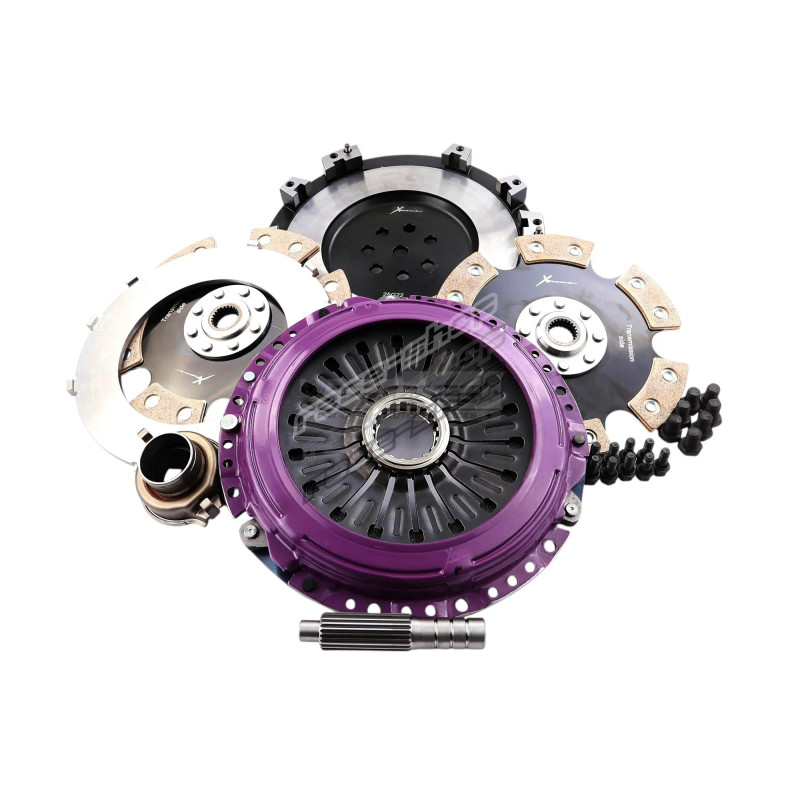

KMI23522-2E Xtreme Performance 230mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel 1800Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
KMI23522-2E
9337467195309
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Clutch 230mm twin plate kitThe Xtreme Clutch 230mm Race Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower and motorsport applications where a high heat capacity is required.
The Xtreme 230mm Race Clutch is the ultimate in clutch solutions with a range like no other. The 230mm range boasts a variety of kits to suit most high horsepower applications for street, circuit, drift or race use. The Xtreme 230mm Race Clutch has been designed, allowing for endless options with clutch operation with internal hydraulic options and pull-push conversions a factoring feature in the 230mm range.Product Features:
- Torque capacity 1800Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
| Flat Diaphragm | Rolled Diaphragm | |
| Clamping Force | 1300kg | 1300kg |
| Torque Rating | 1800Nm | 1800Nm |
| Bearing Contact Diameter | 65mm | FLAT BEARING |
| Bearing Load (@ 48mm) | 180kg | 150kg |
| Release Travel Required | 7mm | 7mm |
| Assembly Mass (without flywheel) | 8.30kg | 8.30kg |
| Disc Set Static Mass | 2.25kg | 2.25kg |
| Friction Thickness New | 8mm (0.315") | 8mm (0.315") |
| Friction Thickness Worn | 7.5mm (0.295") | 7.5mm (0.295") |
Tech. Info:
Reference: KMI23522-2E
Weight: 15.6
Note:
Clutch Disc Diameter (mm): 230
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26.1
Torque (Nm): 1830
Flywheel Step: -19.5mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 1500Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
230mm Twin Plate
Suitable for:
- Mitsubishi/Lancer/EVO VIII - 260 (CT9A)/2004.03-2005.07/4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07)
Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01)
Mitsubishi/Lancer/EVO V (CP9A. CT9A)/1998.01-1998.12/4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12)
Mitsubishi/Lancer/EVO VII (CT9A)/2001.01-2003.01/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01)
Mitsubishi/Lancer/EVO VIII (CT9A)/2003.04-2005.03/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03)
Mitsubishi/Lancer/EVO IX (CT9A)/2005.01-2007.09/4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09)
Mitsubishi/Lancer/EVO IX (CT9A)/2005.08-2006.09/4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09)
Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04)
Mitsubishi/Lancer/EVO VIII - FQ-300 (CT9A)/2003.04-2004.04/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04)
Mitsubishi/Lancer/EVO IX - FQ-300 (CT9A)/2005.06-2006.12/4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12)
Mitsubishi/Lancer/EVO VIII - FQ-320 (CT9A)/2004.04-2006.08/4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08)
Mitsubishi/Lancer/EVO VIII - FQ-330 (CT9A)/2003.10-2006.08/4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08)
Mitsubishi/Lancer/EVO VIII - FQ-340 (CT9A)/2004.04-2005.03/4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03)
Mitsubishi/Lancer/EVO IX - FQ-340 (CT9A)/2005.06-2007.12/4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12)
Mitsubishi/Lancer/EVO IX - FQ-360 (CT9A)/2006.07-2007.12/4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12)
Mitsubishi/Lancer/EVO VIII - FQ-400 (CT9A)/2004.10-2006.08/4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) ,
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Mitsubishi | Lancer | EVO IX (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2005.01 - 2007.09) |
| Mitsubishi | Lancer | EVO IX (CT9A) | 4G63 Turbo 1997 Petrol 213 kW 290 BHP (2005.08 - 2006.09) |
| Mitsubishi | Lancer | EVO IX - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2005.06 - 2006.12) |
| Mitsubishi | Lancer | EVO IX - FQ-340 (CT9A) | 4G63 Turbo 1997 Petrol 257 kW 350 BHP (2005.06 - 2007.12) |
| Mitsubishi | Lancer | EVO IX - FQ-360 (CT9A) | 4G63 Turbo 1997 Petrol 273 kW 371 BHP (2006.07 - 2007.12) |
| Mitsubishi | Lancer | EVO V (CP9A. CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (1998.01 - 1998.12) |
| Mitsubishi | Lancer | EVO VII (CT9A) | 4G63 Turbo 1997 Petrol 200 kW 272 BHP (2001.01 - 2003.01) |
| Mitsubishi | Lancer | EVO VII (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2001.01 - 2003.01) |
| Mitsubishi | Lancer | EVO VIII (CT9A) | 4G63 Turbo 1997 Petrol 206 kW 280 BHP (2003.04 - 2005.03) |
| Mitsubishi | Lancer | EVO VIII - 260 (CT9A) | 4G63 Turbo 1997 Petrol 195 kW 265 BHP (2004.03 - 2005.07) |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 225 kW 305 BHP (2003.04 - 2004.04) |
| Mitsubishi | Lancer | EVO VIII - FQ-300 (CT9A) | 4G63 Turbo 1997 Petrol 227 kW 309 BHP (2003.04 - 2004.04) |
| Mitsubishi | Lancer | EVO VIII - FQ-320 (CT9A) | 4G63 Turbo 1997 Petrol 243 kW 331 BHP (2004.04 - 2006.08) |
| Mitsubishi | Lancer | EVO VIII - FQ-330 (CT9A) | 4G63 Turbo 1997 Petrol 246 kW 335 BHP (2003.10 - 2006.08) |
| Mitsubishi | Lancer | EVO VIII - FQ-340 (CT9A) | 4G63 Turbo 1997 Petrol 255 kW 347 BHP (2004.04 - 2005.03) |
| Mitsubishi | Lancer | EVO VIII - FQ-400 (CT9A) | 4G63 Turbo 1997 Petrol 302 kW 411 BHP (2004.10 - 2006.08) |
