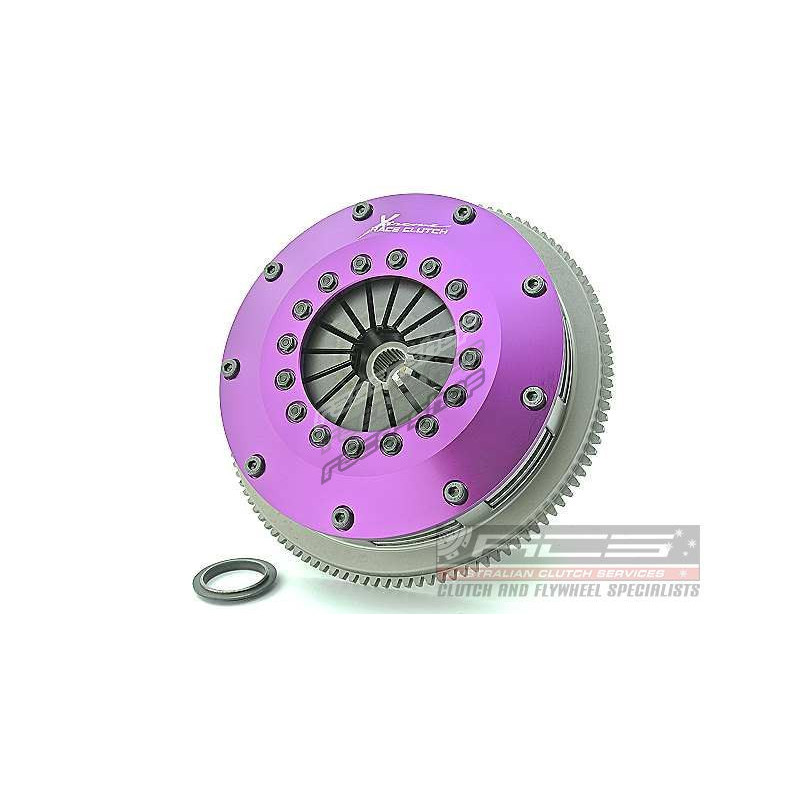

KMZ20525-2B Xtreme Performance 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
New product
KMZ20525-2B
9337467199581
Frequently bought together
Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.
Xtreme Motorsport 200mm twin plateThe Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.

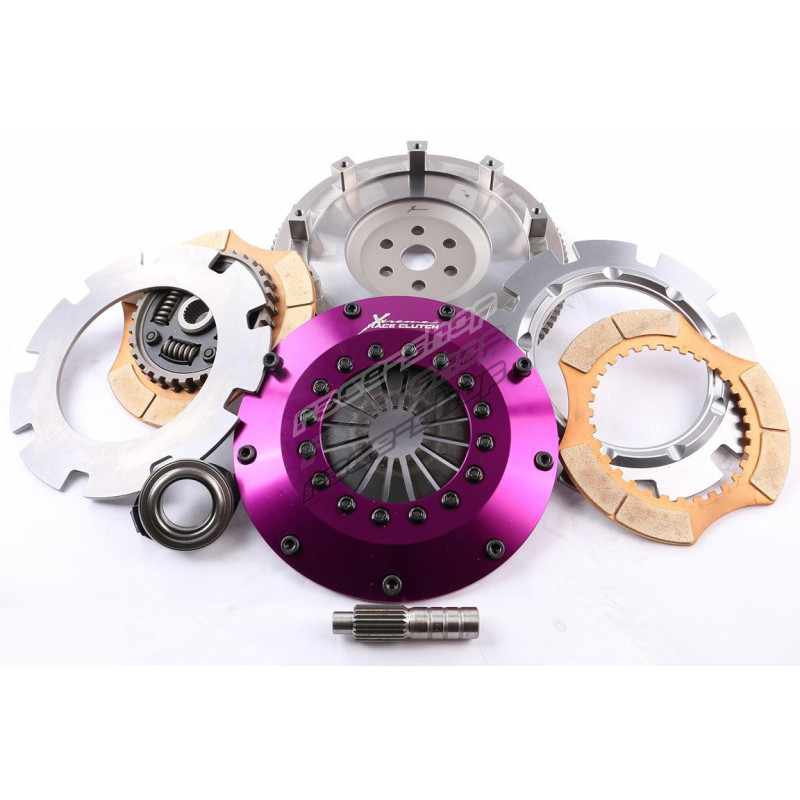

The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
| Clamping Force | 1000kg |
| Torque Rating | 1200Nm |
| Bearing Contact Diameter | 44-52mm |
| Bearing Load (@ 48mm) | 218kg |
| Release Travel Required | 6mm |
| Assembly Mass (without flywheel) | 7.4kg |
| Disc Set Static Mass | 2.15kg |
| Friction Thickness New | 7mm (0.275") |
| Friction Thickness Worn | 6.48mm (0.255") |
Tech. Info:
Reference: KMZ20525-2B
Weight: 12.9
Note:
Clutch Disc Diameter (mm): 200
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26.2
Torque (Nm): 1200
Flywheel Step: +2.2mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load: 1100Kg
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:
200mm Twin Plate - 5 Speed Gearbox
Suits 5 Speed Gearbox
Suitable for:
- Mazda/MX-5/2.0 (NC18)/2005.07-2014.12/LFG7, LFY7, LFG8, LFZD 1999 Petrol 118 kW 160 BHP (2005.07 - 2014.12) , Suits 5 Speed Gearbox
- Write a review
Did not find your question?
Enter new question Do you have a question? Search for an answer.
| Mark | Model | Type | Engine code |
|---|---|---|---|
| Mazda | MX-5 | 2.0 (NC18) | LFG7, LFY7, LFG8, LFZD 1999 Petrol 118 kW 160 BHP (2005.07 - 2014.12) |
