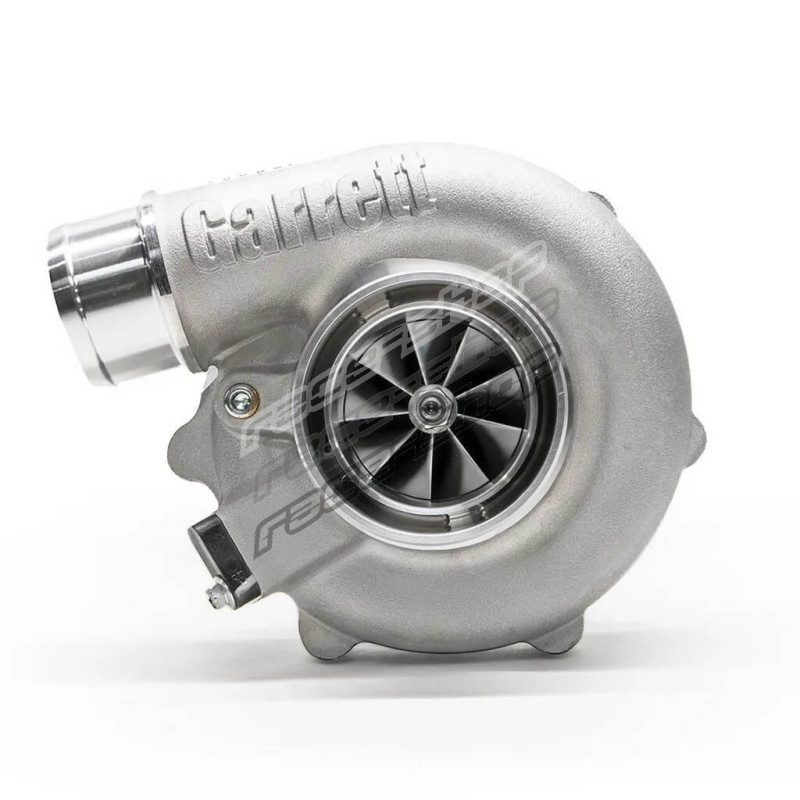

Garrett 934115-5004S Turbocharger G-Series II G25-700, 0.92 A/R, Wastegated, Reverse Rotation

Garrett G25-700 performance turbocharger with reverse rotation and a wastegated V-Band turbine housing.

Now you can harness the power of motorsport legends and experience the durability of champions in your car with the new G-Series II universal Performance Turbos line from Garrett.

Specifications

• Frame: G25
• Bearing: ball bearing
• Rotation: reverse
• Compressor wheel: 54 mm inducer, 67 mm exducer, 65 trim, 0.7 A/R
• Turbine wheel: 54 mm inducer, 49 mm exducer, 84 trim, 0.92 A/R
• Turbine wheel material: MAR-M alloy
• Max shaft speed: 165 krpm
• Turbine housing flange: V-Band / V-Band
• Wastegate: internal (wastegated housing)
• Power: up to 700 HP
• Displacement: 1.4-3.0 L

Features

• G-Series II G25-700 reverse rotation turbo is fully assembled and calibrated with a 0.5 bar actuator
• Direct upgrade path for Gen I customers with just a CHRA purchase
• G-Series II utilizes Gen I compressor and turbine housings
• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM
• Increased efficiency at high flow rates
• 54mm Compressor Inducer / 67mm exducer
• Turbine wheel constructed of MAR-M alloy rated to 1055 °C
• Stainless steel turbine housings are rated up to 1050C degree
