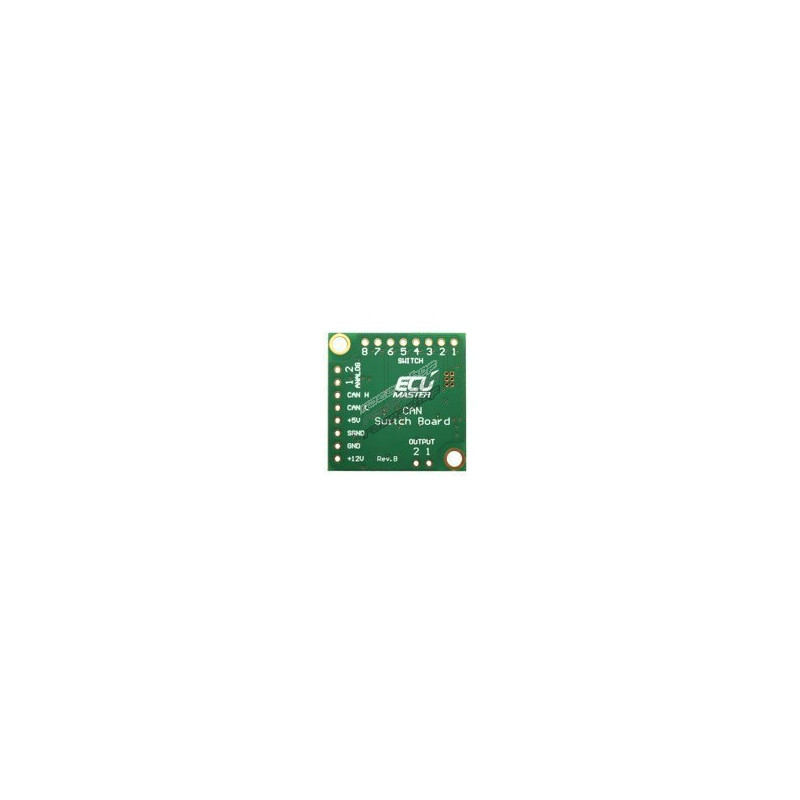

Ecumaster Can Switch Module

• The CAN switching pad is a small device enabling easy transfer of up to 8 switching states and two analog signals via the CAN bus.
• In addition, the device has 2 built-in LED outputs that can be activated via the CAN bus message.
• The main purpose of this board is to create custom steering wheel panels that contain buttons, rotary switches and indicators.

The switchgear is designed to work with EMU BLACK and PMU. It can also be used with other devices with non-standard CAN bus inputs

• CAN BUS 2.0B
• 500 or 1000 kbps, to be selected by the user
• you can choose different CAN and ID structures,
• only 25 x 25 mm,
• 8 low-switch inputs,
• 2 analog inputs / rotary switch inputs, 0-5 V, 10 bits
• 2 outputs for LED
• 6-20 V power supply
• Output + 5 V for supplying rotary switches or potentiometers
