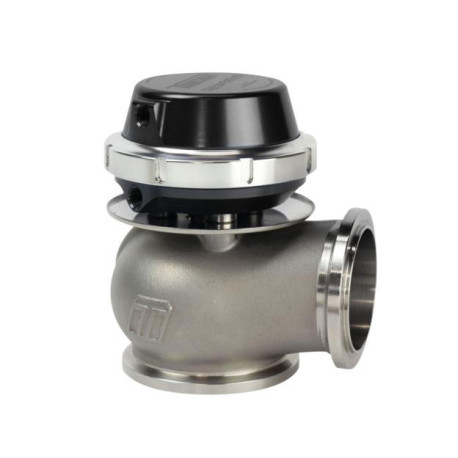

TURBOSMART HyperGate45 external wastegate (Gen IV), 14 psi

The TURBOSMART HyperGate45 (Gen IV) external wastegate with a 45 mm valve is designed for minimum size and maximum flow. It is smaller and lighter than the previous model, and its locking collar design allows quicker spring changes. It comes with springs installed for 14 psi (0.97 bar).

• Valve size: 45 mm
• Actuator locking collar for compact size and quick spring changes
• Installed springs: 14 psi (0.97 bar)
• 1/16" NPT ports
• V-Band connection on inlet and outlet
• For medium to large capacity engines with medium frame turbochargers, street and racing use
• Suits 1 7/8" outside diameter tubing
• Fits all popular 44 mm flanges

Package contents:

• Inlet and outlet stainless steel weld flanges
• Inlet and outlet V-Band clamps
• 1/16" NPT hose barbs (5 mm)
• 1/16" NPT port blanking plugs
• Locking collar tool
• Valve seat
• Middle spring 7 psi (0.48 bar), installed
• Outer spring 7 psi (0.48 bar), installed
