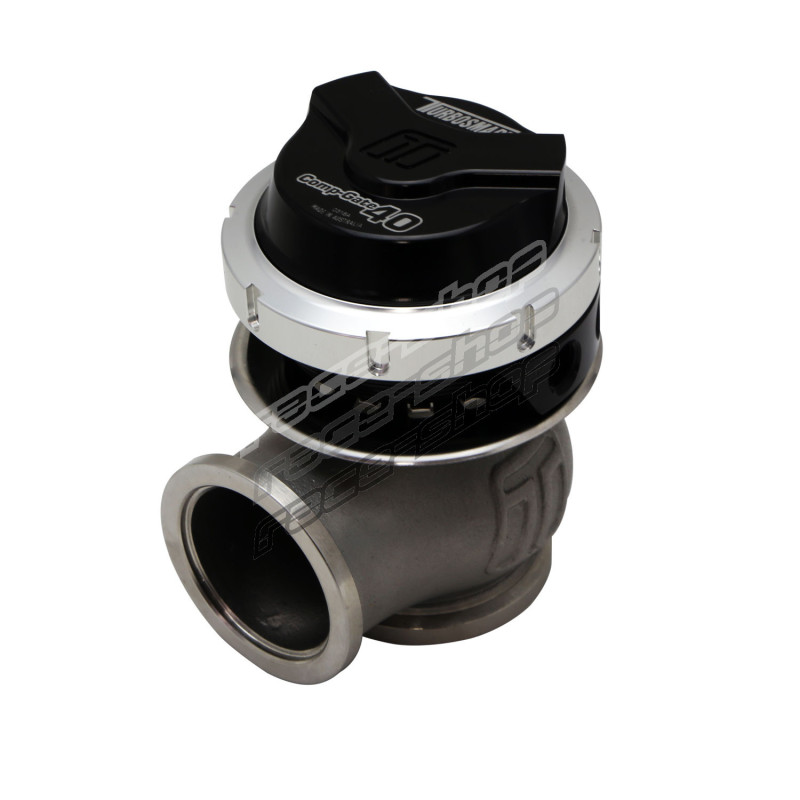

TURBOSMART GenV CompGate40 external wastegate, 7 psi

The TURBOSMART GenV CompGate40 is a cost effective, high performing 40 mm external wastegate with extensive user configurability, extended thermal performance and fatigue resistance. It is a direct fit upgrade to 4th-generation TURBOSMART wastegates and comes with a 7 psi (0.48 bar) spring plus a set of further springs.

• Valve size: 40 mm
• Direct swap for the TURBOSMART Gen4 CompGate40, inlet same as other 38/40 mm V-Band wastegates
• High temperature springs in the box for 3–26 psi (0.21–1.79 bar)
• 1/8" NPT ports
• V-Band clamp mounting to suit 1-3/4" OD pipe
• Locking collar for compact size and easy spring changes
• Variable actuator cap and base, liquid cooling
• Optional Hall effect non-contact position sensor

Package contents:

• Wastegate unit pre-assembled with spring as ordered
• SS316 valve seat
• Inlet V-Band clamp and inlet SS304 weld flange
• Outlet V-Band clamp and outlet SS304 weld flange
• Collar tool (master/slave)
• 17/7 PH spring kit 3, 5, 7 and 14 psi (1 spring installed)
• 4× 1/8" NPT plugs (1 installed), 2× 1/8" NPT nipples
• Sticker and instruction card
