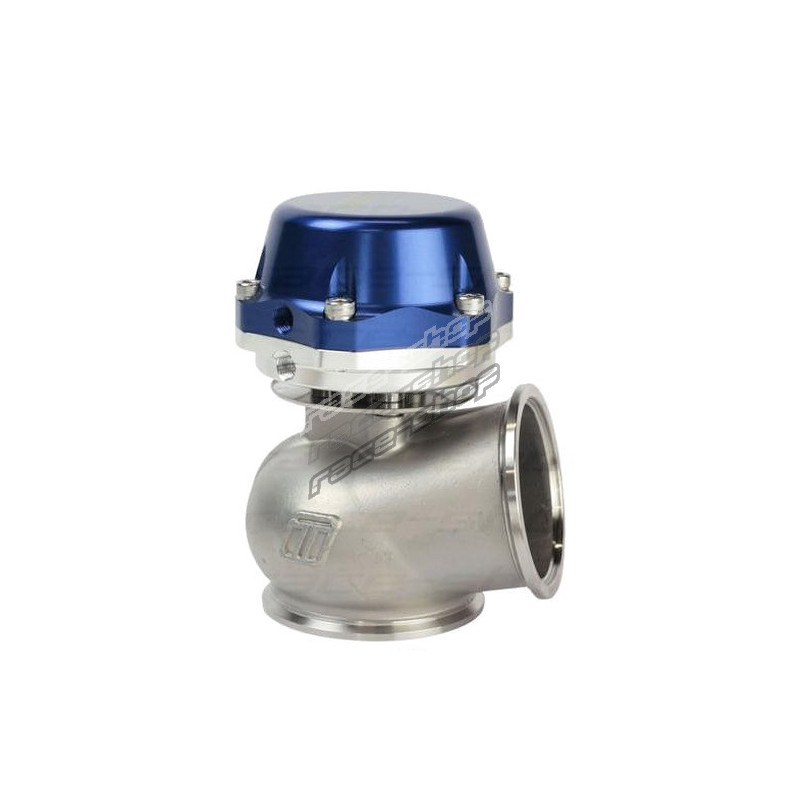

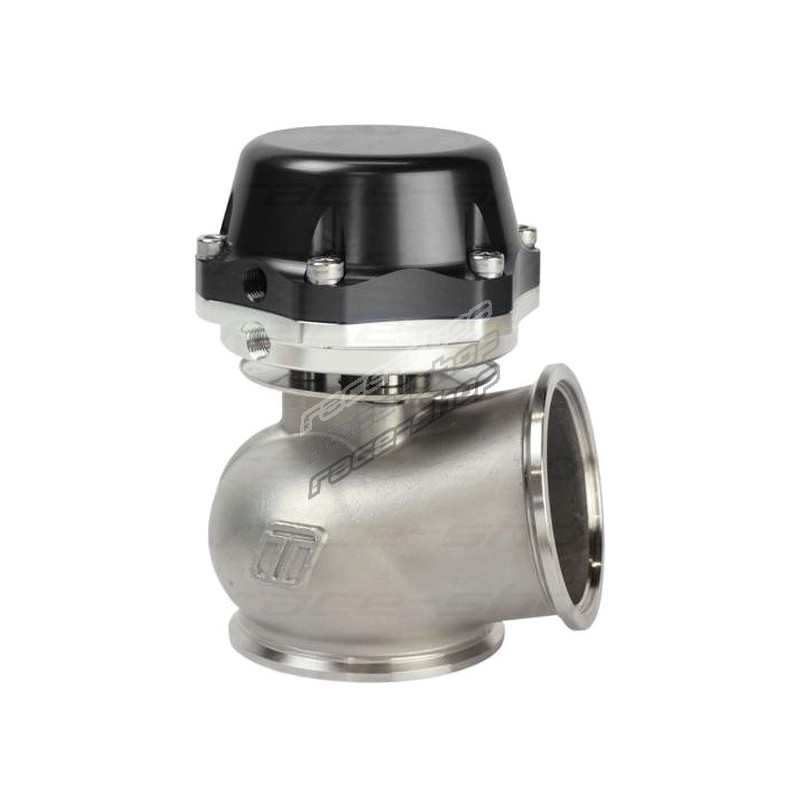

TURBOSMART GenV PowerGate60 external wastegate

The TURBOSMART GenV PowerGate60 is a 60 mm external wastegate, the largest in the GenV range. It is intended for powerful turbo engines that need high exhaust flow through the wastegate. It is a direct fit upgrade for all TURBOSMART Gen4 wastegates and offers extensive user configurability, high thermal performance and flow.

• 60 mm valve
• 17/7 PH stainless steel springs
• liquid actuator cooling provision
• strap-type V-band clamps
• user adjustable actuator position
• modular actuator design
• 1/8" NPT ports
• collar-locking cap

Package contents:

• wastegate unit with spring installed
• SS316 stainless steel valve seat
• inlet V-band clamp and SS304 weld flange
• outlet V-band clamp and SS304 weld flange
• collar tool (master/slave)
• 17/7 PH spring kit 3 psi (0.21 bar), 5 psi (0.34 bar), 7 psi (0.48 bar) and 14 psi (0.97 bar), one installed
• 4× 1/8" NPT plugs (one installed) and 2× 1/8" NPT nipples
• sticker and instruction card
