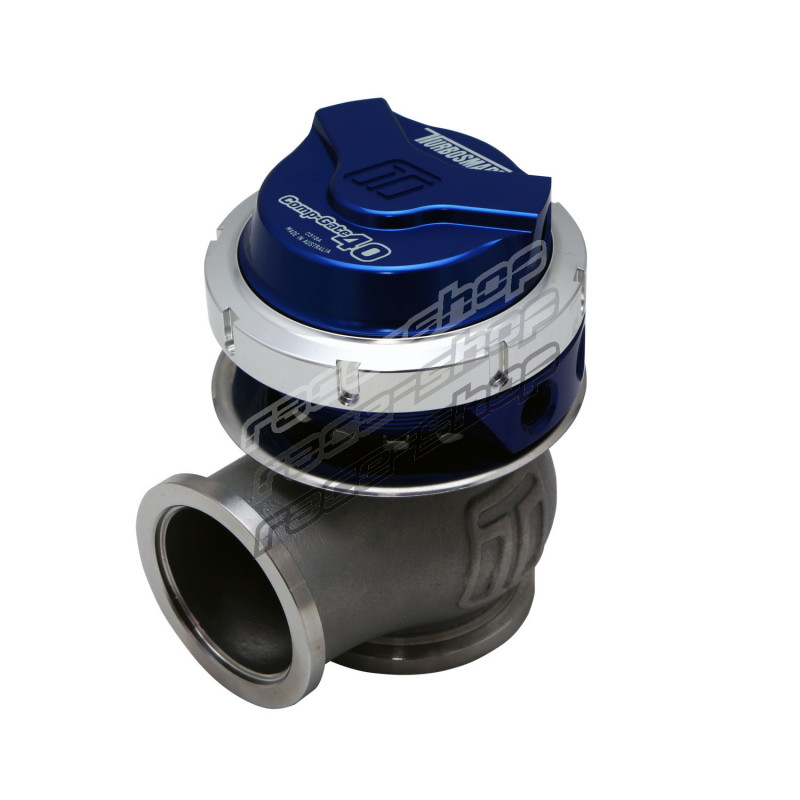

TURBOSMART GenV CompGate40 external wastegate, 14 psi

The TURBOSMART GenV CompGate40 is an external wastegate with a 40 mm valve. It diverts part of the exhaust gas around the turbocharger turbine and so holds boost pressure at the set level. The GenV range offers extensive adjustability, high thermal resistance and fatigue resistance. This version is supplied with a 14 psi (0.97 bar) spring.

• 40 mm valve
• Direct replacement for the 4th generation CompGate40, inlet identical to other 38/40 mm V-band wastegates
• High temperature springs, combinations from 3–26 psi (0.21–1.79 bar)
• 1/8" NPT ports
• V-band clamp mounting for 1-3/4" OD pipe
• Locking collar for compact size and easy spring changes
• Liquid cooling
• Optional Hall effect non-contact valve position sensor

Package contents:

• Wastegate pre-assembled with the spring as ordered
• SS316 valve seat
• Inlet V-band clamp
• Inlet SS304 weld flange
• Outlet V-band clamp
• Outlet SS304 weld flange
• Collar tool (master/slave)
• 17/7 PH spring kit 3, 5, 7 and 14 psi (1 spring installed)
• 4× 1/8" NPT plugs (1 installed), 2× 1/8" NPT nipples
• Sticker
• Instruction card
