DAVIES CRAIG mechanical fan switch (kit), 12/24V, 0401

Description

The Mechanical Thermatic Fan Switch can be used with Davies Craig Thermatic Electric Fans and EWPs.

It senses the coolant temperature after the coolant passes through the engine block and before it enters the radiator. It can be adjusted from 40 to 100 °C (104 to 212 °F).

The Thermal Switch is mounted near the radiator, and its stainless steel probe fits inside the radiator hose.

The Thermal Switch and relay kit lets a fan run both thermally and when the air conditioning is running.

Specifications

• Temperature range: 40° to 100°C (104° to 212°F)
• Lead length: 100 cm
• Sensor probe size: suits 6 mm olive

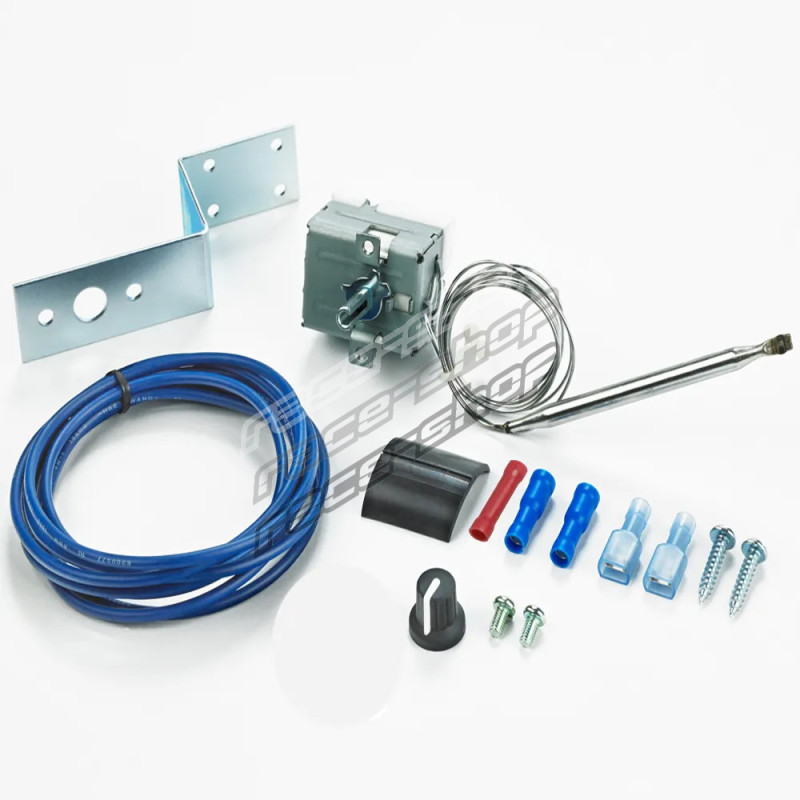

Package Contents

• 1× Mechanical Thermatic Fan Switch
• 1× blue wiring (switch to ignition)
• 1× mounting bracket
• 1× Thermal Switch knob
• 1× rubber seal, suits 1 mm capillary
• 2× spade terminals
• 1× red wire joiner
• 2× screws, large (bracket to engine bay)
• 2× screws, small (bracket to mechanical switch)
• 1× instructions

Warning

The switch needs a relay and wiring harness to run the fan or fans. The 12 V relay is part 10533 and the 24 V relay is part 10534.
