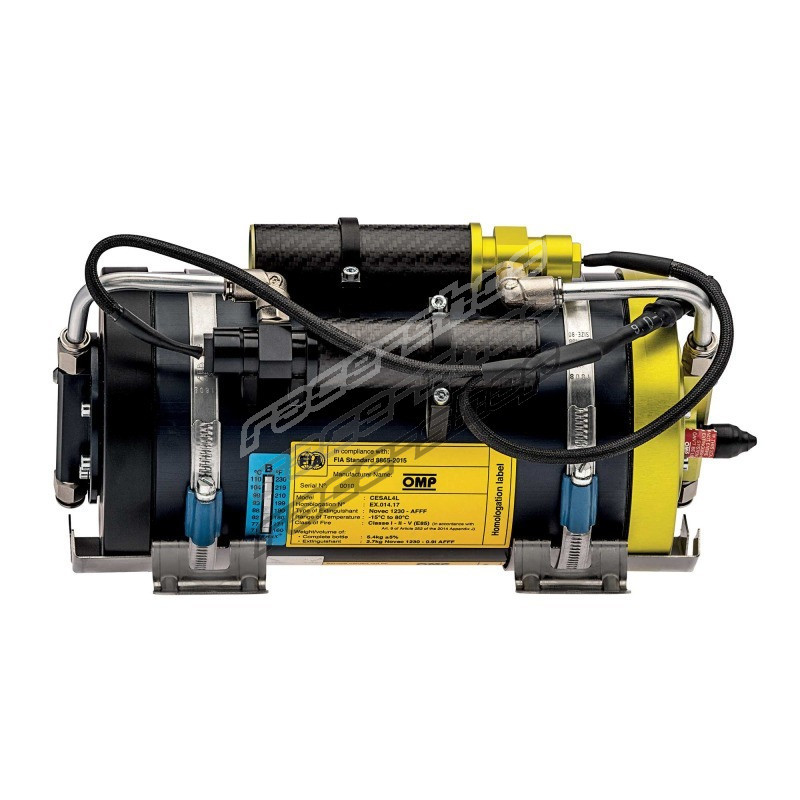

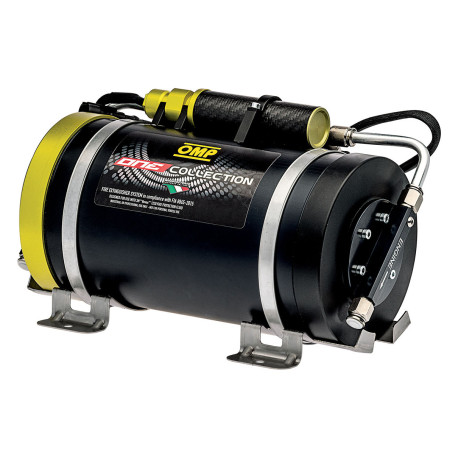

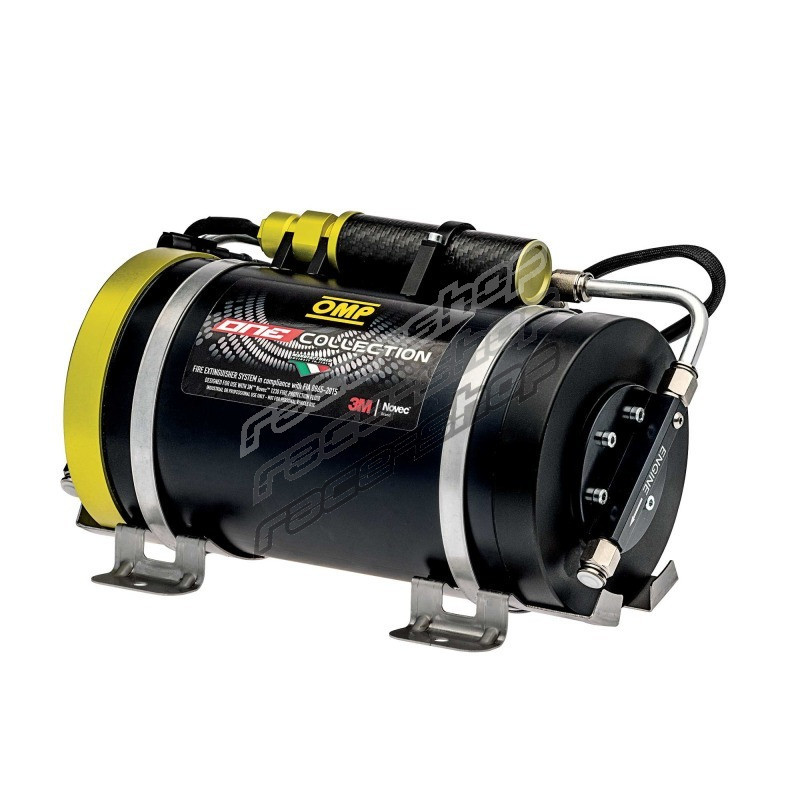

OMP CESAL4 SE electrical extinguisher with FIA, small

• The aluminium bottle design keeps the weight low while maintaining excellent durability. The system is homologated for petrol and blends with up to 30% ethanol or methanol and is fully suitable for electric and hybrid vehicles. The “S” version is optimized for small cockpits with a volume between 1.2 and 2.2 m³.
• The kit includes aluminium tubing, engine and cockpit nozzles, mounting brackets, 90°/T/Y connectors, control unit, wiring, safety covers and activation buttons with M5 connectors.

Full FK-5-1-12 extinguishing system – electrically activated

• FIA 8865-2015
• “S” version for small cockpits (2.2–1.2 m³)
• Includes full installation kit
• Approved for petrol + up to 30% ethanol/methanol, EV & hybrid cars
• Aluminium bottle
• Total weight: 5.5 kg
  • Diameter: 134 mm
  • Length: 275 mm
  • Suitable for electric and hybrid vehicles
  • Parts included:
  2.5x Aluminium tubing 8 mm L 4 m [CD0-0323-A01]
  2.5x Sheath 10 mm [CD0-0324-A01]
  3x Gas nozzle [CD0-0454]
  2x Cockpit gas nozzle [CD0-0410]
  2x Cockpit nozzle fixing bracket [XMC-CD00059]
  5x 8 mm 90° connection [CD0-0391-A02]
  1x 8 mm T-connection [CD0-0412]
  2x 8 mm Y-connection [CD0-0414]
  6x 8 mm straight connection [CD0-0416]
  2x Fixing brackets with clamps [CD0-0408]
  1x Control unit [CD0-0380-A01]
  1x Control unit wiring [CD0-0436]
  1x M5 Y wiring connector [CD0-0435]
  1x Activation button with M5 connector 0.5 m [CD0-0432-A01]
  1x Activation button with M5 connector 1.5 m [CD0-0432-A02]
  1x M5 extension wiring [CD0-0431]
  2x Activation button protection covers [CD0-0441]
