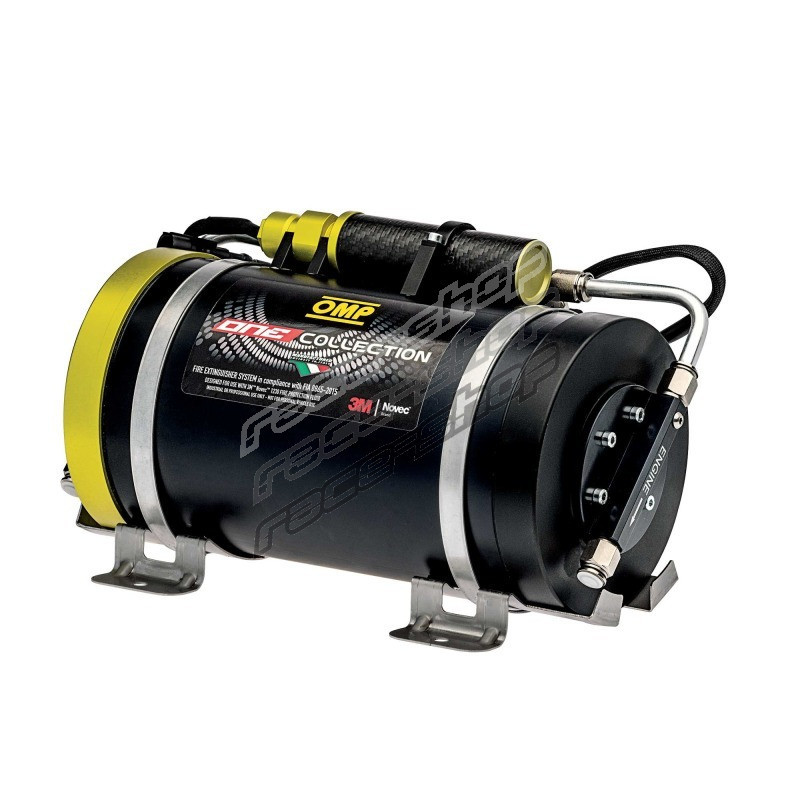

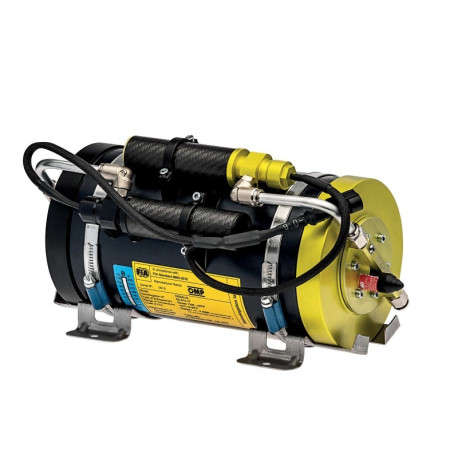

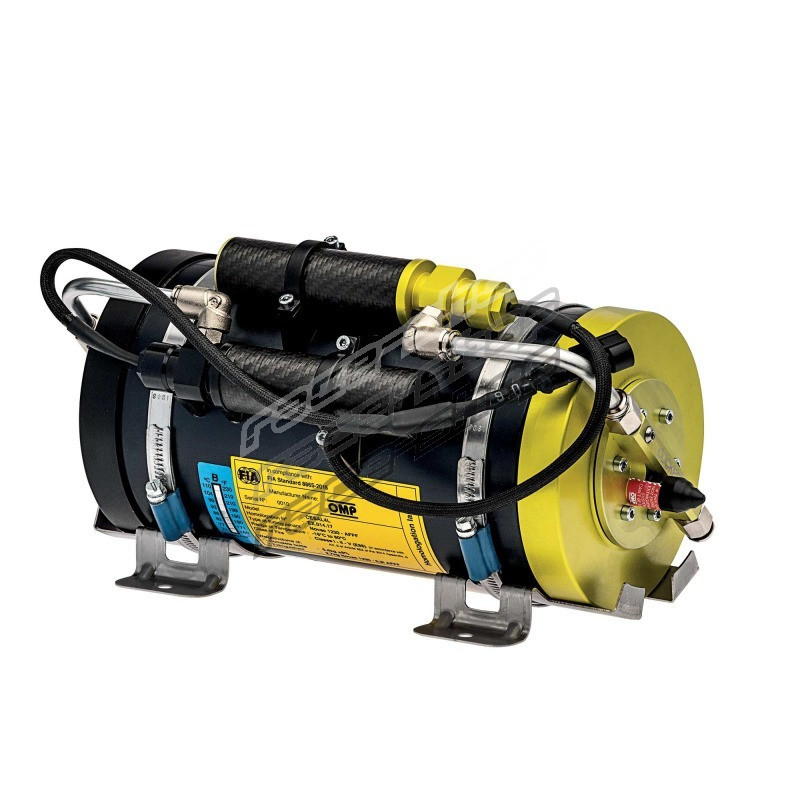

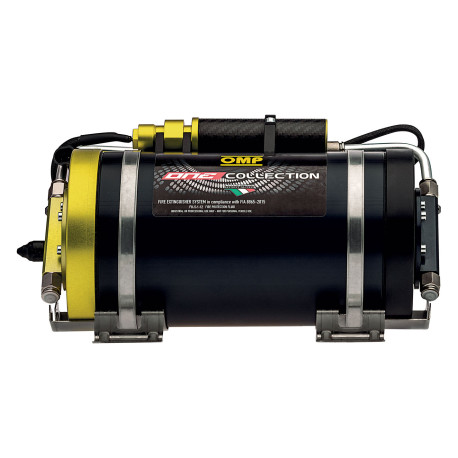

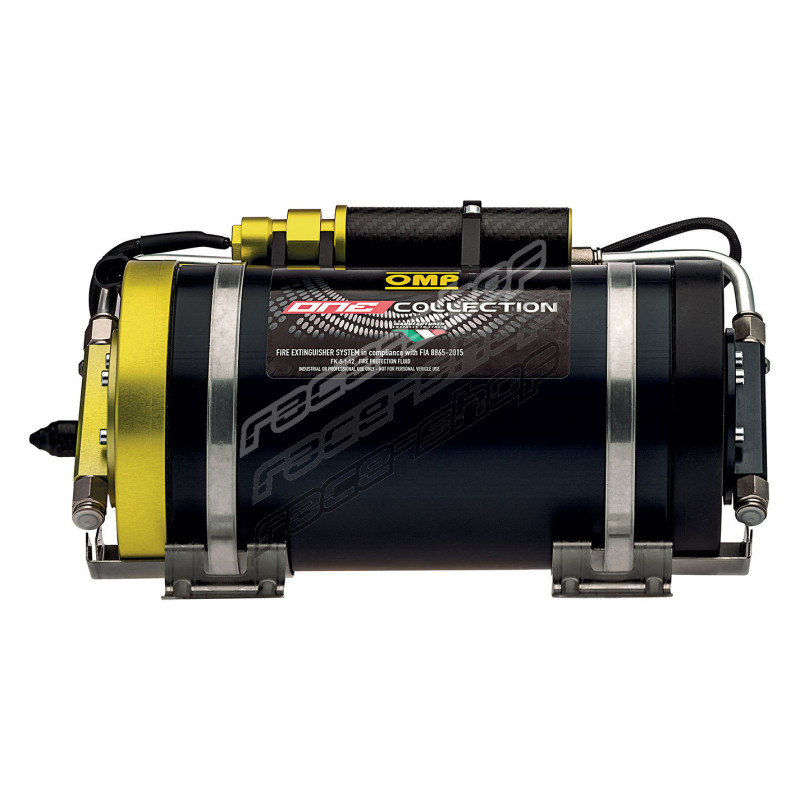

OMP CESAL4 LE electrical extinguisher with FIA, large

• Its aluminium bottle construction keeps weight low while maintaining high performance. The system is suitable for petrol engines, fuel blends with up to 30% ethanol or methanol, and fully compatible with electric and hybrid vehicles. The “L” version is optimized for cockpit volumes from 4.1 to 2.2 m³.
• All brackets, tubing, fittings, and the control unit are included for a full installation.

Full FK-5-1-12 extinguishing system – electrically activated

• FIA 8865-2015
• “L” version for medium to large cockpits (from 3.73 m3 to 1.99 m3)
• Includes full installation kit
• Aluminium bottle
• Total weight: 5.5 kg
  • Diameter: 134 mm
  • Length: 275 mm
  • Homologated for use with: petrol, petrol + up to 30% ethanol or methanol
  • Suitable for electric and hybrid vehicles
  • Parts included:
  2,5x - Aluminium tubing 8mm L 4m [CD0-0323-A01],
  2,5x - Sheath 10mm [CD0-0324-A01],
  3x - Gas nozzle [CD0-0454],
  2x - Cockpit Gas nozzle [CD0-0410],
  2x - Cockpit nozzle fixing bracket [XMC-CD00059],
  5x - 8mm 90° connection [CD0-0391-A02],
  1x - 8mm T connection [CD0-0412],
  2x - 8mm Y connection [CD0-0414],
  6x - 8mm straight connection [CD0-0416],
  2x - Fixing brackets with clamps [CD0-0408],
  1x - Control unit [CD0-0380-A01],
  1x - Control unit wiring [CD0-0436],
  1x - M5 Y wiring connector [CD0-0435],
  1x - Activation button with M5 connector 0,5m [CD0-0432-A01],
  1x - Activation button with M5 connector 1,5m [CD0-0432-A02],
  1x - M5 extension wiring [CD0-0431],
  2x - Activation button protection [CD0-0441]
