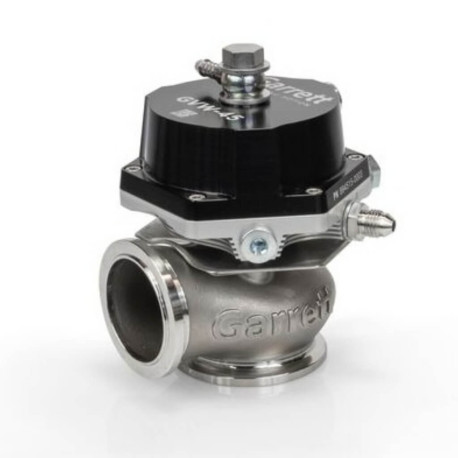

Garrett 908830-0003 External Wastegate GVW-60 1 Bar, Black

Garrett GVW-60 external wastegate — regulates turbocharger shaft speed by venting exhaust gas around the turbine stage, with CFD-optimised flow and precise boost control.

Garrett External Wastegates regulate turbocharger shaft speed by venting exhaust gas around the turbine stage of the turbocharger.

CFD optimized design maximizes flow and delivers optimum boost control.

Advanced thermal optimization increases durability of the diaphragm.

The cap design makes spring changes and serviceability of the entire GVW lineup easier and more reliable to perform.

Specifications

• Valve diameter: 60 mm
• Type: external
• Base pressure: 1.0 Bar (14.5 PSI)
• Adjustable range: 0.2 Bar (3 PSI) – 1.6 Bar (23 PSI)
• Outlet: V-band
• Colour: Black

Features

• CFD tested for maximum flow and thermal efficiency
• Optimized actuation stability and temperature resistance for superior durability
• Replaceable valve and bushing components to increase service life
• Robust design for easy diaphragm replacement
• Liquid-cooled actuator ports for use on severe applications (up to 52% reduction in body temp)
• Anodized aluminum actuator cover
• Four Colors: Red / Blue / Black / Silver
• Three Sizes: 40mm / 45mm / 50mm / 60mm
